Tektronix 485

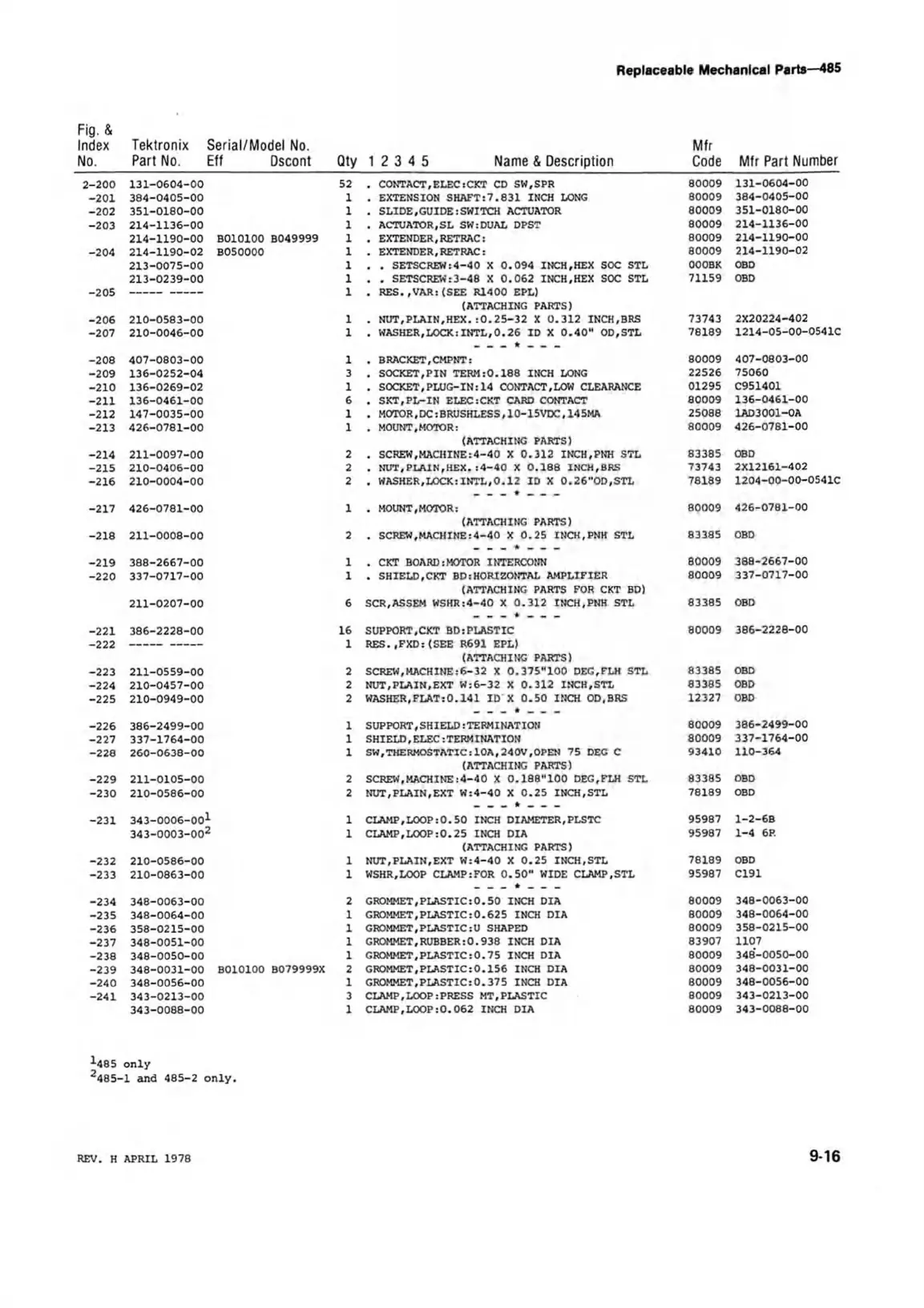

Replaceable Mechanical Parts—485
Index Tektronix Serial/Model No. Mfr
Fig. &
No. Part No. Eff Dscont Qty 1 2 3 4 5 Name & Description
Code
Mfr Part Number
2-200 131-0604-00
52 . CONTACT,ELEC:CKT CD SW,SPR
80009
131-0604-00
-201
384-0405-00 1
. EXTENSION SHAFT:7.831 INCH LONG
80009
384-0405-00
-202
351-0180-00 1
. SLIDE,GUIDE:SWITCH ACTUATOR
80009
351-0180-00
-203
214-1136-00 1
. ACTUATOR,SL SW:DUAL DPST
80009
214-1136-00
214-1190-00
B010100
B049999
1
. EXTENDER,RETRAC:
80009
214-1190-00
-204
214-1190-02
B050000
1 . EXTENDER,RETRAC:
80009
214-1190-02
213-0075-00
1
. . SETSCREW:4-40 X 0.094 INCH,HEX SOC STL 000BK
OBD
213-0239-00
1 . . SETSCREW:3-48 X 0.062 INCH,HEX SOC STL
71159
OBD
-205
1 . RES.,VAR:(SEE R1400 EPL)
(ATTACHING PARTS)
-206
210-0583-00
1
. NUT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS 73743
2X20224-402
-207
210-0046-00
1
. WASHER,LOCK:INTL,0.26 ID X 0.40" OD,STL
78189
1214-05-00-0541C
-208 407-0803-00 1
. BRACKET,CMPNT:
80009
407-0803-00
-209
136-0252-04
3 . SOCKET,PIN TERM:0.188 INCH LONG
22526 75060
-210
136-0269-02 1
. SOCKET,PLUG-IN: 14 CONTACT,LOW CLEARANCE
01295
C951401
-211
136-0461-00
6 . SKT,PL-IN ELEC:CKT CARD CONTACT
80009
136-0461-00
-212
147-0035-00
1 . MOTOR,DC : BRUSHLESS,10-15VDC,14 5MA
25088 1AD3001-0A
-213 426-0781-00
1
. MOUNT,MOTOR:
80009
426-0781-00
(ATTACHING PARTS)
-214 211-0097-00
2
. SCREW,MACHINE:4-40 X 0.312 INCH,PNH STL
83385
OBD
-215
210-0406-00
2 . NUT,PLAIN,HEX.:4-40 X 0.188 INCH,BRS 73743
2X12161-402
-216
210-0004-00
2 . WASHER,LOCK:INTL,0.12 ID X 0.26"OD,STL
78189
1204-00-00-0541C
-217 426-0781-00
1
. MOUNT,MOTOR:
80009
426-0781-00
(ATTACHING PARTS)
-218
211-0008-00
2
. SCREW,MACHINE:4-40 X 0.25 INCH,PNH STL
83385
OBD
-219
388-2667-00
i
. CKT BOARD:MOTOR INTERCONN
80009
388-2667-00
-220
337-0717-00
i
. SHIELD,CKT BD:HORIZONTAL AMPLIFIER
80009
337-0717-00
(ATTACHING PARTS FOR CKT BD)
211-0207-00
6
SCR,ASSEM WSHR:4-40 X 0.312 INCH.PNH STL
83385
OBD
-221 386-2228-00
16
SUPPORT,CKT BD:PLASTIC 80009
386-2228-00
-222
1
RES.,FXD:(SEE R691 EPL)
(ATTACHING PARTS)
-223
211-0559-00
2
SCREW,MACHINE:6-32 X 0.375"100 DEG,FLH STL
83385
OBD
-224 210-0457-00
2 NUT,PLAIN,EXT W:6-32 X 0.312 INCH,STL
83385
OBD
-225
210-0949-00
2
WASHER,FLAT:0.141 ID X 0.50 INCH OD,BRS
12327 OBD
-226
386-2499-00 1
SUPPORT,SHIELD:TERMINATION 80009 386-2499-00
-227
337-1764-00
1
SHIELD,ELEC:TERMINATION
80009
337-1764-00
-228 260-0638-00
1
SW,THERMOSTATIC:10A,240V,OPEN 75 DEG C
93410 110-364
(ATTACHING PARTS)
-229 211-0105-00
2
SCREW,MACHINE:4-40 X 0.188”100 DEG,FLH STL
83385 OBD
-230 210-0586-00
2
NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL
78189
OBD
-231 343-0006-001
1 CLAMP,LOOP:0.50 INCH DIAMETER,PLSTC
95987 1-2-6B
343-0003-002
1 CLAMP,LOOP:0.25 INCH DIA
95987 1-4 6P.
(ATTACHING PARTS)
-232
210-0586-00
1 NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL
78189
OBD
-233 210-0863-00
1
WSHR,LOOP CLAMP:FOR 0.50" WIDE CLAMP,STL 95987 C191
-234
348-0063-00
2 GROMMET,PLASTIC:0.50 INCH DIA
80009
348-0063-00
-235
348-0064-00
1
GROMMET,PLASTIC:0.625 INCH DIA 80009
348-0064-00
-236 358-0215-00
1
GROMMET,PLASTIC:U SHAPED 80009
358-0215-00
-237
348-0051-00
1
GROMMET,RUBBER:0.938 INCH DIA
83907 1107
-238
348-0050-00
1
GROMMET,PLASTIC:0.75 INCH DIA
80009 348-0050-00
-239 348-0031-00
B010100 B079999X 2
GROMMET,PLASTIC:0.156 INCH DIA
80009 348-0031-00
-240
348-0056-00
1 GROMMET,PLASTIC:0.375 INCH DIA 80009
348-0056-00
-241
343-0213-00
3
CLAMP,LOOP:PRESS MT,PLASTIC 80009
343-0213-00
343-0088-00
1
CLAMP,LOOP:0.062 INCH DIA
80009
343-0088-00
^485 only
2485-l and 485-2 only.
REV. H A PRIL 1978
916
