Tektronix 485

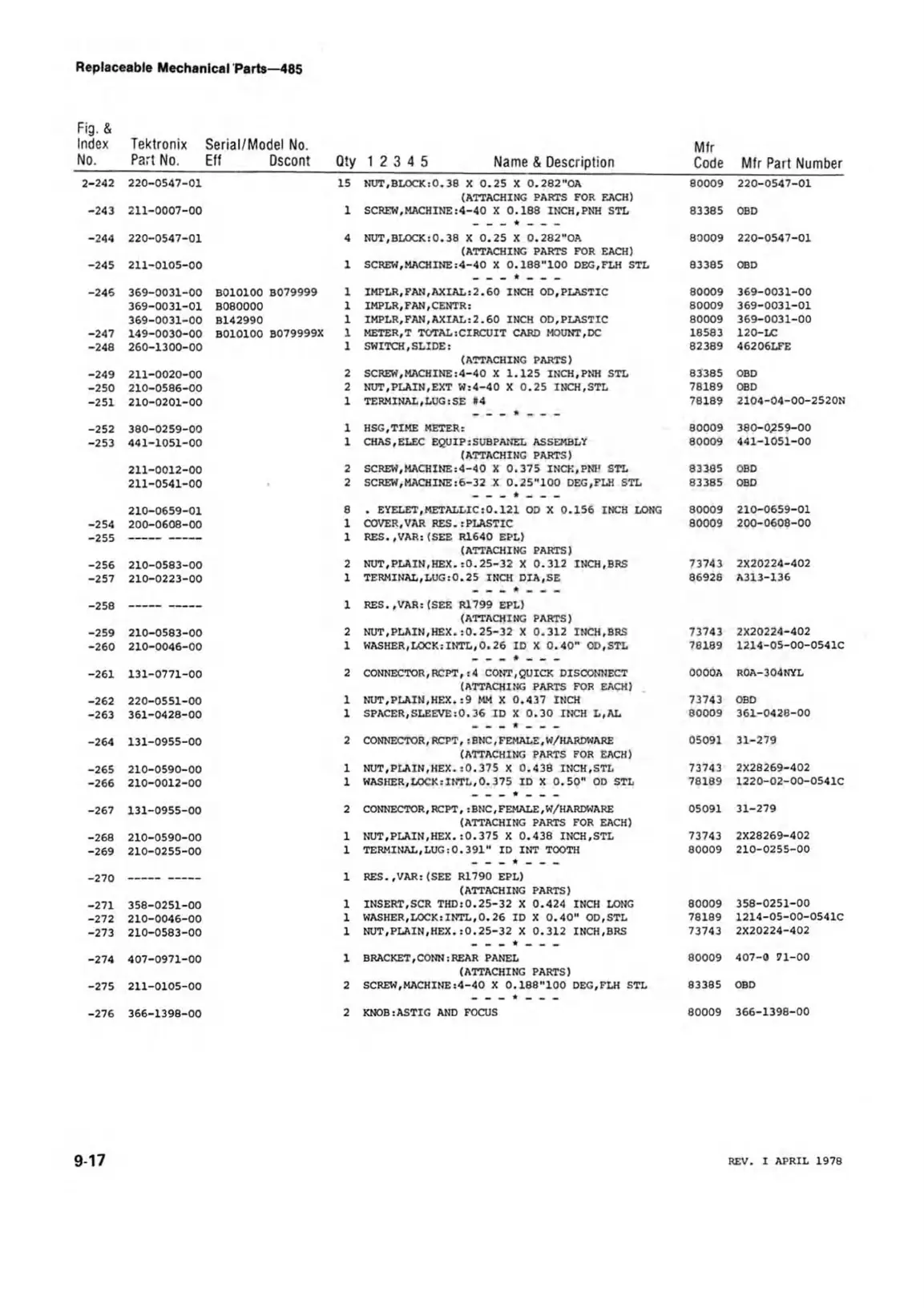

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Qty
1 2 3 4 5 Name & Description
Mfr
Code Mfr Part Number
2-242
220-0547-01 15 NOT,BLOCK:0.38 X 0.2S X 0.282"OA 80009 220-0547-01
(ATTACHING PARTS FOR EACH)
-243 211-0007-00
l SCREW,MACHINE:4-40 X 0.188 INCH,PNH STL
83385
OBD
-244 220-0547-01
4 NOT,BLOCK:0.38 X 0.2S X 0.282"OA 80009
220-0547-01
(ATTACHING PARTS FOR EACH)
-245 211-0105-00
i SCREW,MACHINE:4-40 X 0.188"100 DEG,FLH STL 83385
OBD
-246 369-0031-00 B010100
B079999
i
IMPLR,FAN,AXIAL:2.60 INCH OD,PLASTIC 80009
369-0031-00
369-0031-01
B080000
i
IMPLR,FAN,CENTR:
80009 369-0031-01
369-0031-00
B142990
i
IMPLR,FAN, AXIAL:2.60 INCH OD,PLASTIC 80009 369-0031-00
-247 149-0030-00 B010100
B079999X i
METER,T TOTAL:CIRCUIT CARD MOUNT,DC
18583 120-LC
-248
260-1300-00
i
SWITCH,SLIDE: 82389
46206LFE
(ATTACHING PARTS)
-249 211-0020-00
2 SCREW,MACHINE:4-40 X 1.125 INCH.PNH STL 83385
OBD
-250 210-0586-00
2
NOT,PLAIN,EXT W:4-40 X 0.25 INCH,STL 78189
OBD
-251 210-0201-00
1
TERMINAL,LUG:SE #4 78189
2104-04-00-2520N
-252 380-0259-00
1
HSG,TIME METER:
80009 380-0259-00
-253 441-1051-00
1
CHAS,ELEC EQUIP:SUBPANEL ASSEMBLY
80009
441-1051-00
(ATTACHING PARTS)
211-0012-00
2 SCREW,MACHINE:4-40 X 0.375 INCH,PNF STL
83385 OBD
211-0541-00
•
2
SCREW,MACHINE:6-32 X 0.25"100 DEG.FLH STL
83385
OBD
210-0659-01
8 . EYELET,METALLIC:0.121 OD X 0.156 INCH LONG 80009 210-0659-01
-254 200-0608-00
1
COVER,VAR RES.:PLASTIC 80009
200-0608-00
-255
------ -------
1
RES.,VAR:(SEE R1640 EPL)
(ATTACHING PARTS)
-256 210-0583-00
2 NOT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS 73743
2X20224-402
-257
210-0223-00
i
TERMINAL,LUG:0.25 INCH DIA,SE 86928 A313-136
-258
_____ _____
i RES. ,VAR: (SEE R1799 EPL)
(ATTACHING PARTS)
-259 210-0583-00
2
NOT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS
73743
2X20224-402
-260 210-0046-00
1
WASHER,LOCK:INTL,0.26 ID X 0.40" OD.STL 78189
1214-05-00-0541C
-261 131-0771-00
2 CONNECTOR,RCPT, :4 CONT,QUICK DISCONNECT 0000A R0A-304NYL
(ATTACHING PARTS FOR EACH)
-262 220-0551-00
1
NOT,PLAIN,HEX.:9 MM X 0.437 INCH 73743
OBD
-263
361-0428-00
1
SPACER,SLEEVE:0.36 ID X 0.30 INCH L,AL 80009
361-0428-00
-264
131-0955-00
2 CONNECTOR,RCPT, :BNC,FEMALE,W/HARDWARE 05091
31-279
(ATTACHING PARTS FOR EACH)
-265 210-0590-00
1
NUT,PLAIN,HEX.:0.375 X 0.438 INCH,STL
73743
2X28269-402
-266 210-0012-00
1
WASHER,L0CK:INTL,0.375 ID X 0.50" OD STL 78189
1220-02-00-0541C
-267
131-0955-00
2
CONNECTOR,RCPT, :BNC,FEMALE,W/HARDWARE 05091
31-279
(ATTACHING PARTS FOR EACH)
-268 210-0590-00
1
NOT,PLAIN,HEX.:0.375 X 0.438 INCH,STL
73743
2X28269-402
-269 210-0255-00
1
TERMINAL,LUG:0.391" ID INT TOOTH
80009
210-0255-00
-270
1
RES.,VAR: (SEE R1790 EPL)
(ATTACHING PARTS)
-271 358-0251-00
1
INSERT,SCR THD.-0.25-32 X 0.424 INCH LONG 80009
358-0251-00
-272 210-0046-00
1
WASHER,LOCK:INTL,0.26 ID X 0.40" OD,STL 78189 1214-05-00-0541C
-273
210-0583-00
1
NOT,PLAIN,HEX.:0.25-32 X 0.312 INCH.BRS 73743
2X20224-402
-274
407-0971-00
1
BRACKET,CONN:REAR PANEL 80009
407-0 71-00
(ATTACHING PARTS)
-275 211-0105-00
2 SCREW,MACHINE:4-40 X 0.188"100 DEG.FLH STL
83385
OBD
-276 366-1398-00
2
KNOB:ASTIG AND FOCUS 80009
366-1398-00
9-17 REV. I APRIL 1978
