Tektronix 485

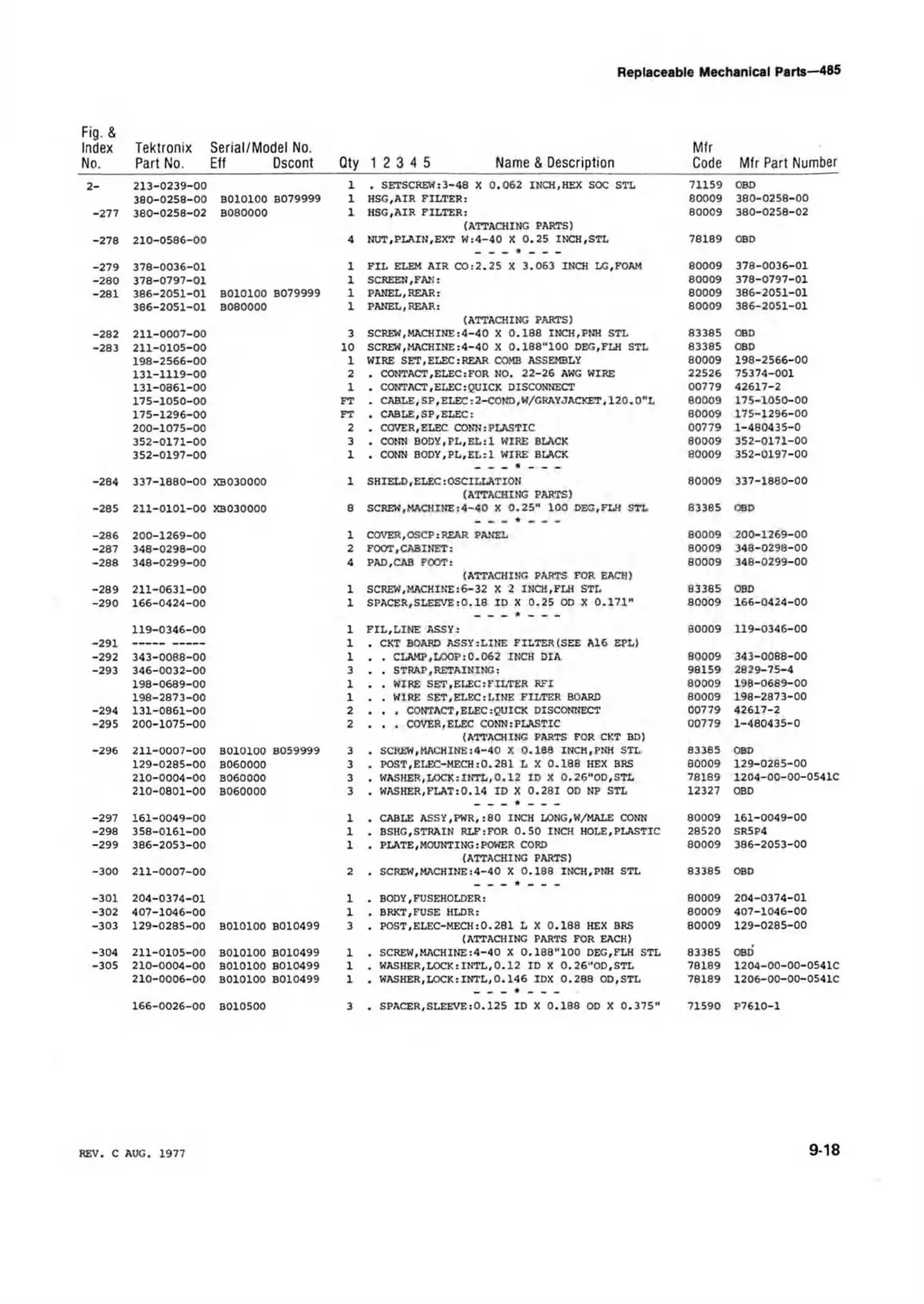

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Qty 1 2 3 4 5 Name & Description
Mfr
Code
Mfr Part Number
2-
213-0239-00
1 . SETSCREW:3-48 X 0.062 INCH,HEX SOC STL 71159
OBD
380-0258-00
B010100 B079999
1
HSG,AIR FILTER:
80009
380-0258-00
-277 380-0258-02 B080000
1
HSG,AIR FILTER:
80009
380-0258-02
(ATTACHING PARTS)
-278
210-0586-00
4
NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL 78189
OBD
-279
378-0036-01
1
FIL ELEM AIR CO:2.25 X 3.063 INCH LG,FOAM
80009 378-0036-01
-280 378-0797-01
1
SCREEN,FAN: 80009 378-0797-01
-281
386-2051-01
B010100 B079999 1
PANEL,REAR: 80009 386-2051-01
386-2051-01
B080000 1
PANEL,REAR:
80009 386-2051-01
(ATTACHING PARTS)
-282
211-0007-00
3
SCREW,MACHINE:4-40 X 0.188 INCH.PNH STL 83385
OBD
-283
211-0105-00
10
SCREW,MACHINE:4-40 X 0.188”100 DEG,FLH STL 83385
OBD
198-2566-00
1
WIRE SET,ELEC:REAR COMB ASSEMBLY
80009 198-2566-00
131-1119-00
2 . CONTACT,ELEC:FOR NO. 22-26 AWG WIRE
22526 75374-001
131-0861-00
1
. CONTACT,ELEC:QUICK DISCONNECT 00779 42617-2
175-1050-00
FT . CABLE, SP , ELEC : 2-COND, W/GRAYJACXET ,120.0”L
80009
175-1050-00
175-1296-00
FT . CABLE,SP,ELEC: 80009
175-1296-00
200-1075-00
2
. COVER,ELEC CONN:PLASTIC 00779 1-480435-0
352-0171-00
3 . CONN BODY,PL,EL:1 WIRE BLACK
80009
352-0171-00
352-0197-00
1
. CONN BODY,PL,EL : 1 WIRE BLACK 80009
352-0197-00
-284
337-1880-00 XB030000
1
SHIELD,ELEC : OSCILLATION
80009
337-1880-00
(ATTACHING PARTS)
-285 211-0101-00 XB030000
8 SCREW,MACHINE:4-40 X 0.25” 100 DEG,FLH STL
83385 OBD
-286 200-1269-00
1
COVER,OSCP : REAR PANEL 80009
200-1269-00
-287 348-0298-00
2
FOOT,CABINET: 80009
348-0298-00
-288 348-0299-00
4
PAD,CAB FOOT:
80009 348-0299-00
(ATTACHING PARTS FOR EACH)
-289
211-0631-00
i
SCREW,MACHINE:6—32 X 2 INCH,FLH STL 83385
OBD
-290 166-0424-00
i
SPACER,SLEEVE:0.18 ID X 0.25 OD X 0.171” 80009
166-0424-00
119-0346-00 i FIL,LINE ASSY:
80009 119-0346-00
-291 i
. CKT BOARD ASSY:LINE FILTER(SEE A16 EPL)
-292 343-0088-00
i
. . CLAMP,LOOP:0.062 INCH DIA 80009
343-0088-00
-293 346-0032-00
3
. . STRAP,RETAINING:
98159
2829-75-4
198-0689-00
1
. . WIRE SET,ELEC:FILTER RFI
80009
198-0689-00
198-2873-00
1
. . WIRE SET,ELEC:LINE FILTER BOARD 80009
198-2873-00
-294 131-0861-00
2 . . . CONTACT,ELEC:QUICK DISCONNECT
00779
42617-2
-295 200-1075-00
2 . . . COVER,ELEC CONN:PLASTIC
00779
1-480435-0
(ATTACHING PARTS FOR CKT BD)
-296
211-0007-00
B010100 B059999
3
. SCREW,MACHINE:4-40 X 0.188 INCH.PNH STL 83385 OBD
129-0285-00 B060000
3
. POST,ELEC-MECH:0.281 L X 0.188 HEX BRS 80009
129-0285-00
210-0004-00 B060000
3
. WASHER,LOCK:INTL,0.12 ID X 0.26"OD,STL 78189
1204-00-00-0541C
210-0801-00 B060000
3
. WASHER,FLAT:0.14 ID X 0.281 OD NP STL
12327 OBD
-297
161-0049-00 1
. CABLE ASSY.PWR, :80 INCH LONG.W/MALE CONN 80009
161-0049-00
-298
358-0161-00 1
. BSHG,STRAIN RLF :FOR 0.50 INCH HOLE,PLASTIC 28520
SRSP4
-299
386-2053-00 1
. PLATE,MOUNTING:POWER CORD
80009
386-2053-00
(ATTACHING PARTS)
-300
211-0007-00
2 . SCREW,MACHINE:4-40 X 0.188 INCH.PNH STL
83385 OBD
-301
204-0374-01
i
. BODY,FUSEHOLDER: 80009 204-0374-01
-302
407-1046-00 i
. BRKT,FUSE HLDR:
80009
407-1046-00
-303
129-0285-00 B010100 B010499
3
. POST,ELEC-MECH:0.281 L X 0.188 HEX BRS 80009
129-0285-00
(ATTACHING PARTS FOR EACH)
-304 211-0105-00 B010100 B010499
1
. SCREW,MACHINE:4-40 X 0.188”100 DEG,FLH STL 83385
OBD
-305
210-0004-00
B010100 B010499 1
. WASHER,LOCK:INTL,0.12 ID X 0.26”OD,STL
78189
1204-00-00-0541C
210-0006-00 B010100 B010499 1
. WASHER,LOCK:INTL,0.146 IDX 0.288 OD.STL
78189
1206-00-00-0541C
166-0026-00 B010500 3
. SPACER,SLEEVE:0.125 ID X 0.188 OD X 0.375"
71590 P7610-1
REV. C AUG. 1977
9-18
