Tektronix 485

Rackmounting—485/R485 Service
Securing screws
Holes in
front rails
tapped for
10-32 screws
Rear
rail
Front
rail
Stationary
section
Chassis section
Intermediate
section
I
_____

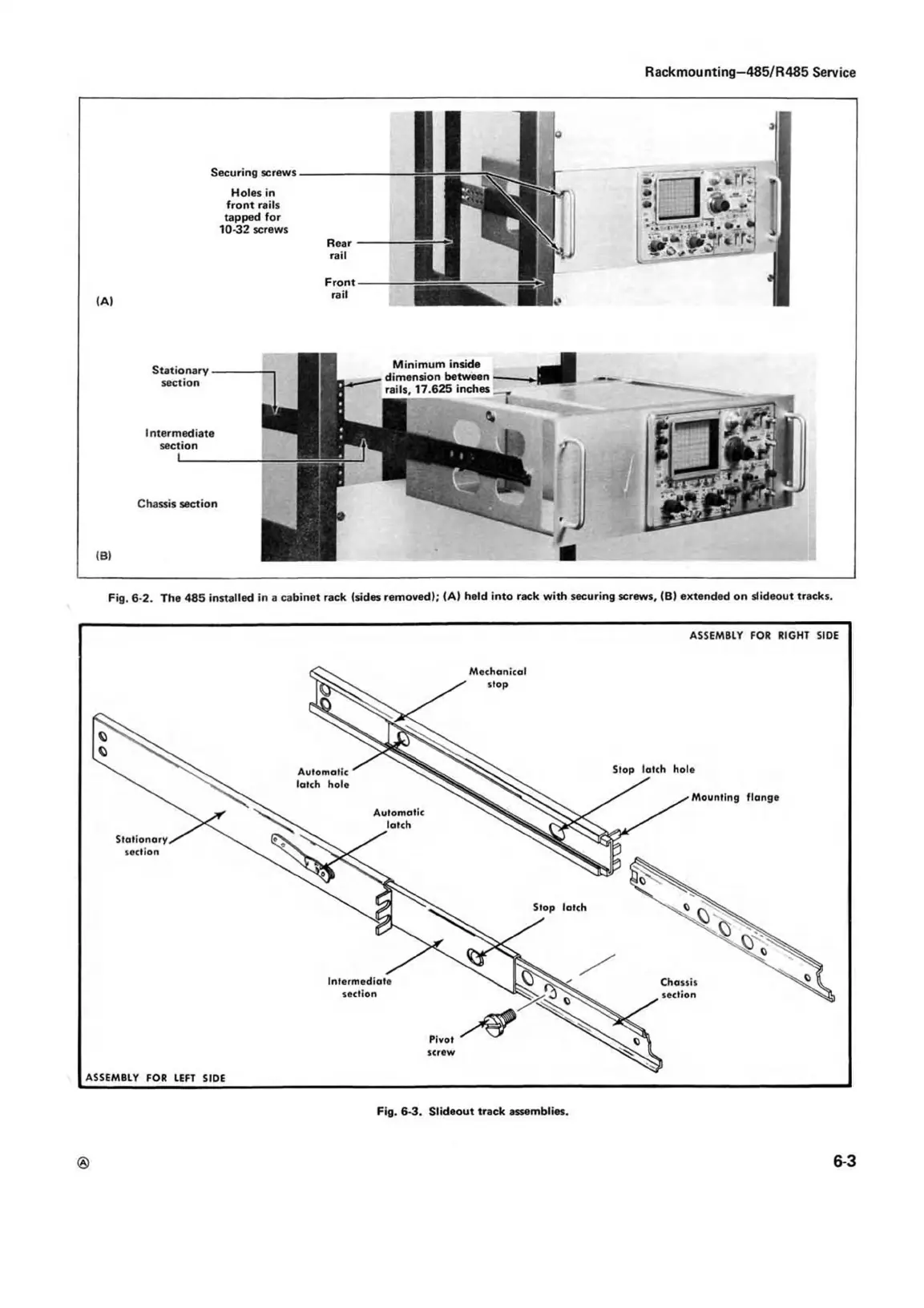

Fig. 6-2. The 485 installed in a cabinet rack (sides removed); (A) held into rack with securing screws, (B) extended on slideout tracks.
6-3
Fig. 6-3. Slideout track assemblies.
