Rackmounting—485/R485 Service
Stationary s
section of;:
slideout^
track
(A) Front rail tapped for 10*32 screws
Untapped
holes
(B) Untapped front rail
•Note:
Use FHS screws if front rail holes
are countersunk.

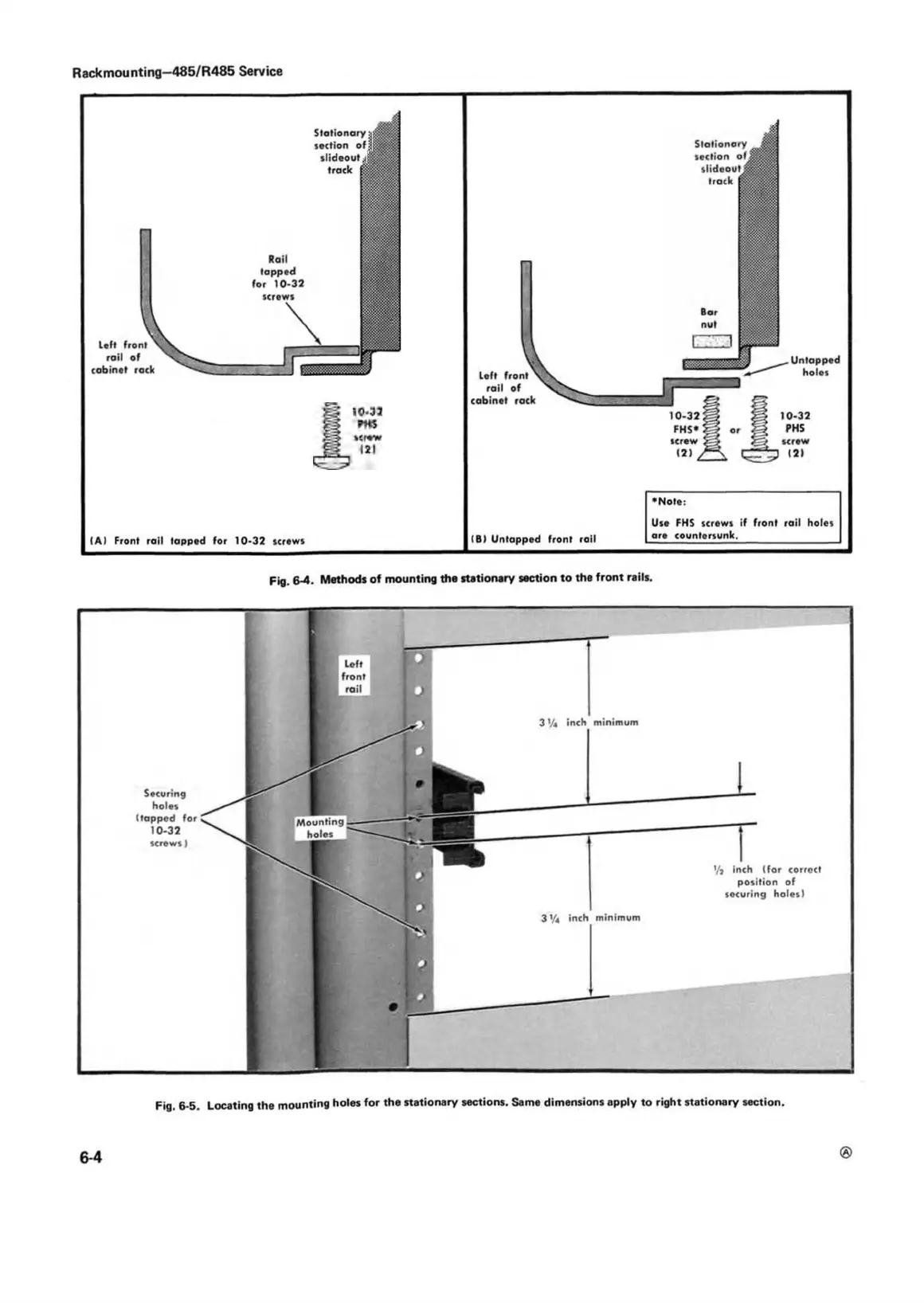

Fig. 6-4. Methods of mounting the stationary section to the front rails.
6-4
®
Fig. 6-5. Locating the mounting holes for the stationary sections. Same dimensions apply to right stationary section.
