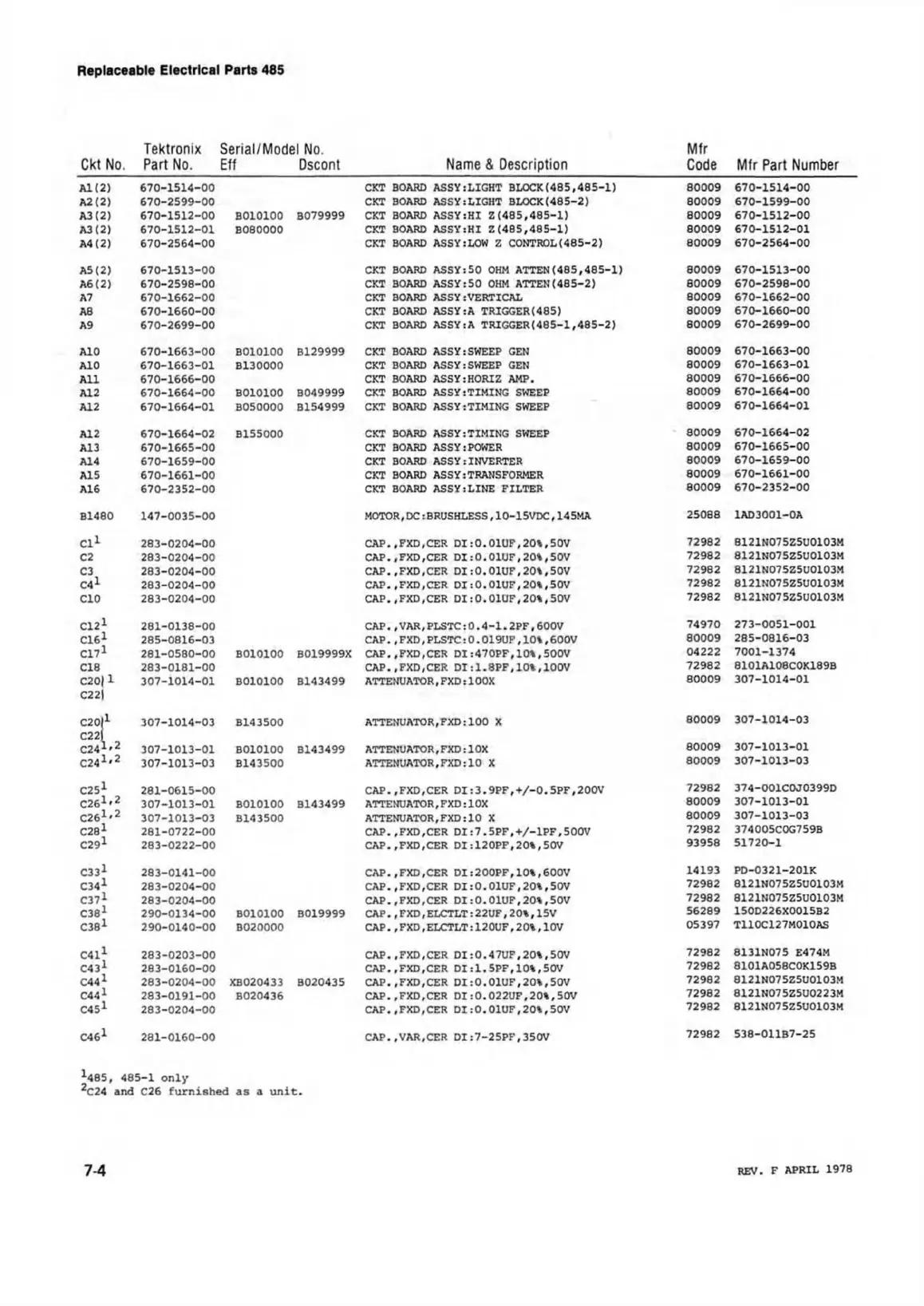

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code Mfr Part Number
A1 (2)
670-1514-00
CKT BOARD ASSY SLIGHT BLOCK(485,485-1)
80009 670-1514-00
A2(2) 670-2599-00
CKT BOARD ASSYtLIGHT BLOCK(485-2)
80009
670-1599-00
A3 (2)
670-1512-00 B010100
B079999
CKT BOARD ASSY:HI Z (485,485-1)
80009 670-1512-00
A3 (2) 670-1512-01 B080000
CKT BOARD ASSY:HI Z(485,485-1)
80009 670-1512-01
A4 (2) 670-2564-00
CKT BOARD ASSY:LOW Z CONTROL(485-2)
80009
670-2564-00
AS (2) 670-1513-00
CKT BOARD ASSY:50 OHM ATTEN(485,485-1)
80009
670-1513-00
A6 (2) 670-2598-00
CKT BOARD ASSY:50 OHM ATTEN(485-2)
80009
670-2598-00
A7
670-1662-00
CKT BOARD ASSY:VERTICAL
80009 670-1662-00
AS 670-1660-00
CKT BOARD ASSY:A TRIGGER(485)
80009
670-1660-00
A9 670-2699-00
CKT BOARD ASSY:A TRIGGER(485-1,485-2)
80009 670-2699-00
A10 670-1663-00
B010100 B129999
CKT BOARD ASSY:SWEEP GEN
80009 670-1663-00
A10 670-1663-01
B130000
CKT BOARD ASSY:SWEEP GEN
80009
670-1663-01
All 670-1666-00
CKT BOARD ASSY:HORIZ AMP. 80009
670-1666-00
A12 670-1664-00
B010100 B049999
CKT BOARD ASSY:TIMING SWEEP
80009
670-1664-00
A12 670-1664-01
B050000 B154999
CKT BOARD ASSY:TIMING SWEEP
80009 670-1664-01
A12
670-1664-02 B155000
CKT BOARD ASSY:TIMING SWEEP
80009 670-1664-02
A13 670-1665-00
CKT BOARD ASSY:POWER
80009
670-1665-00
A14
670-1659-00
CKT BOARD ASSY:INVERTER
80009 670-1659-00
A15
670-1661-00
CKT BOARD ASSY:TRANSFORMER
80009 670-1661-00
A16 670-2352-00
CKT BOARD ASSY:LINE FILTER
80009
670-2352-00
B1480
147-0035-00
MOTOR, DC: BRUSHLESS, 10-15VDC, 145MA
25088 1AD3001-0A
Cl1
283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C2
283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982
8121N075Z5U0103M
C3
283-0204-00
CAP.,FXD,CER DI :0.01UF,20%,50V
72982
8121N075Z5U0103M
C41 283-0204-00 CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
CIO 283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C121
281-0138-00
CAP.,VAR,PLSTC:0.4-1.2PF,600V
74970
273-0051-001
C161 285-0816-03
CAP.,FXD,PLSTC:0.019UF,10%,600V
80009 285-0816-03
C171
281-0580-00 B010100
B019999X CAP.,FXD,CER DI:470PF,10%,500V
04222
7001-1374
C18 283-0181-00 CAP.,FXD,CER DI:1.8PF,10%,100V
72982 8101A108C0K189B
C20|l
307-1014-01
B010100 B143499 ATTENUATOR,FXD:100X
80009
307-1014-01
C22l
C20)1 307-1014-03 B143500
ATTENUATOR,FXD: 100 X
80009
307-1014-03
C22I „
C24i'2
307-1013-01
B010100 B143499
ATTENUATOR,FXD:10X
80009 307-1013-01
C241'2
307-1013-03
B143500
ATTENUATOR,FXD:10 X
80009
307-1013-03
C251 281-0615-00 CAP.,FXD,CER DI :3.9PF,+ / - 0 . 5PF,200V
72982
374-001C0J0399D
C261'2
307-1013-01 B010100 B143499
ATTENUATOR,FXD:1OX
80009 307-1013-01
C261'2 307-1013-03 B143500 ATTENUATOR,FXD:10 X
80009 307-1013-03
C281 281-0722-00 CAP.,FXD,CER DI:7.5PF,+/-1PF,500V
72982 374005C0G759B
C291 283-0222-00 CAP.,FXD,CER DI:120PF,20%,50V
93958 51720-1
C331
283-0141-00
CAP.,FXD,CER DI:200PF,10%,600V
14193
PD-0321-201K
C341
283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C371
283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982
8121N075Z5U0103M
C381
290-0134-00 B010100 B019999
CAP.,FXD,ELCTLT:22UF,20%,15V
56289 150D226X0015B2
C381
290-0140-00
B020000
CAP.,FXD,ELCTLT:12 OUF,2 0%,1OV
05397 T110C127M010AS
C411 283-0203-00
CAP.,FXD,CER DI:0.47UF,20%,50V
72982 8131N075 E474M
C431
283-0160-00
CAP.,FXD,CER DI:1.5PF,10%,50V
72982 8101A058C0K159B
C441 283-0204-00
XB020433 B020435
CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C441
283-0191-00 B020436 CAP.,FXD,CER DI:0.022UF,20%,50V
72982 8121N075Z5U0223M
C451
283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C461 281-0160-00
CAP.,VAR,CER D I :7-25PF,350V
72982 538-011B7-25
*485, 485-1 only
2C24 and C26 furnished as a unit.
7-4
REV. F APRIL 1978
