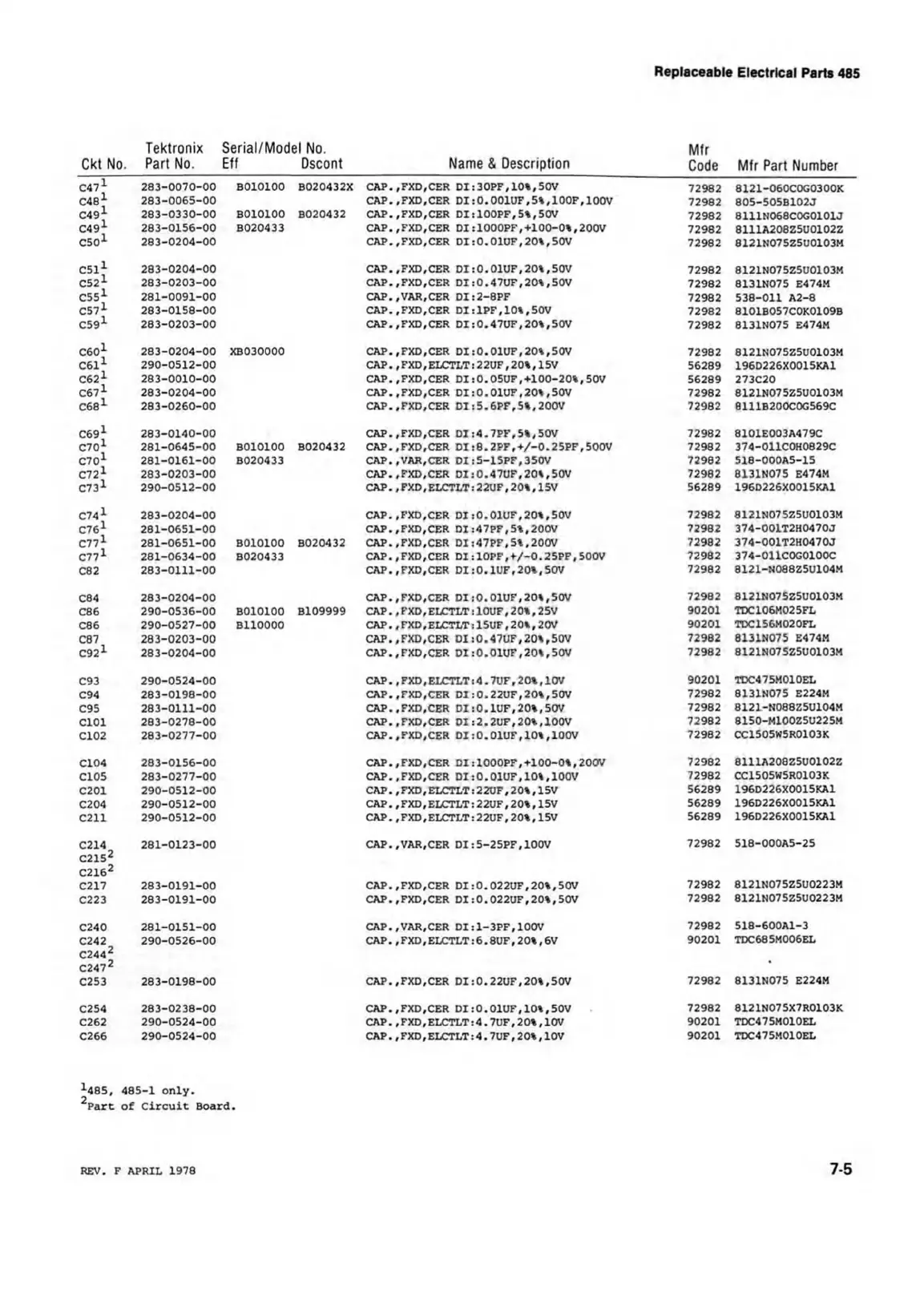

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont Name & Description
Mfr
Code Mfr Part Number
C471
283-0070-00 B010100 B020432X CAP.,FXD,CER DI :3OPF,10%,50V
72982 8121-060C0G030OK
C481
283-0065-00 CAP.,FXD,CER DI:0.001UF,5%,100F,100V
72982
805-505B102J
C49*
283-0330-00
B010100
B020432
CAP.,FXD,CER DI:100PF,5%,50V
72982
8111N068COG0101J
C491
283-0156-00
B020433
CAP.,FXD,CER DI:1000PF,+100-0%,200V
72982
8111A208Z5U0102Z
C501
283-0204-00 CAP.,FXD,CER DI:0.01UF,20%,50V
72982
8121N075Z5U0103M
C511
283-0204-00 CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C521
283-0203-00 CAP.,FXD,CER DI:0.47UF,20%,50V
72982 8131N075 E474M
C551
281-0091-00 CAP. ,VAR,CER DI :2-8PF
72982 538-011 A2-8
C571 283-0158-00
CAP.,FXD,CER DI:1PF,10%,50V
72982 8101B057C0K0109B
C591
283-0203-00
CAP.,FXD,CER DI:0.47UF,20%,50V
72982 8131N075 E474M
C601
283-0204-00 XB030000
CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C611
290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C621 283-0010-00
CAP.,FXD,CER DI:0.05UF,+100-20%,50V
56289 273C20
C671 283-0204-00 CAP.,FXD,CER DI:0.01UF,20%,50V
72982
8121N075Z5U0103M
C681
283-0260-00
CAP.,FXD,CER DI:5.6PF,5%,200V
72982 8111B200C0G569C
C691
283-0140-00
CAP.,FXD,CER DI:4.7PF,5%,50V 72982
8101E003A479C
C701
281-0645-00 B010100 B020432 CAP.,FXD,CER DI:8.2PF,+/-0.25PF,500V 72982 374-011C0H0829C
C701
281-0161-00 B020433
CAP.,VAR,CER DI:5-15PF,350V 72982 518-000A5-15
C721
283-0203-00 CAP.,FXD,CER DI:0.47UF,20%,50V
72982 8131N075 E474M
C731
290-0512-00 CAP. ,FXD,ELCTLT:22UF,20%,15V
56289 196D226X0015KA1
C741
283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C761
281-0651-00
CAP.,FXD,CER DI:47PF,5%,200V
72982
374-001T2H0470J
C771
281-0651-00 B010100 B020432
CAP.,FXD,CER DI:47PF,5%,200V
72982
374-001T2H0470J
C771 281-0634-00 B020433
CAP.,FXD.CER DI:10PF,+/-0.25PF,500V
72982 374-011C0G0100C
C82
283-0111-00
CAP.,FXD,CER DI:0.1UF,20%,50V
72982
8121-N088Z5U104M
C84 283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982
8121N075Z5U0103M
C86 290-0536-00 B010100
B109999 CAP.,FXD,ELCTLT:10UF,20%,25V
90201 TDC106M025FL
C86 290-0527-00
B110000 CAP.,FXD,ELCTLT:15UF,20%,20V
90201 TDC156M020FL
C87 283-0203-00
CAP.,FXD,CER DI:0.47UF,20%,50V
72982
8131N075 E474M
C921 283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C93
290-0524-00 CAP.,FXD,ELCTLT:4.7UF,20%, 10V
90201
TDC475M010EL
C94
283-0198-00
CAP.,FXD,CER DI:0.22UF,20%,50V
72982
8131N075 E224M
C95 283-0111-00
CAP.,FXD,CER DI:0.1UF,20%,50V
72982
8121-N088Z5U104M
C101
283-0278-00
CAP.,FXD,CER DI:2.2UF,20%,100V
72982
8150-M100Z5U225M
C102
283-0277-00 CAP.,FXD,CER DI:0.01UF,10%,100V
72982
CC1505W5R0103K
C104 283-0156-00
CAP.,FXD,CER DI:1000PF,+100-0%,200V
72982
8111A208Z5U0102Z
C105 283-0277-00
CAP.,FXD,CER DI:0.01UF,10%,100V
72982 CC150SW5R0103K
C201
290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C204
290-0512-00 CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C211 290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V
56289 196D226X0015KA1
C214
281-0123-00
CAP. ,VAR,CER DI:5-25PF,100V
72982 518-OOOA5-25
C2152
C2162
C217 283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V
72982
8121N075Z5U0223M
C223 283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V
72982
8121N075Z5U0223M
C240
281-0151-00
CAP. ,VAR,CER DI: 1-3PF, 100V
72982 518-600A1-3
C242 290-0526-00
CAP.,FXD,ELCTLT:6.8UF,20%,6V
90201
TDC68 5M006EL
C2442
C2472
C253
283-0198-00 CAP.,FXD,CER DI:0.22UF,20%,50V
72982 8131N075 E224M
C254 283-0238-00 CAP.,FXD,CER DI:0.01UF,10%,50V
72982 8121N075X7R0103K
C262 290-0524-00
CAP.,FXD,ELCTLT:4.7UF,20%,10V
90201 TDC475M010EL
C266 290-0524-00 CAP.,FXD,ELCTLT:4•7UF,20%,10V
90201 TDC475M010EL
*485, 485-1 only.
2
Part of Circuit Board.
REV. F A P RIL 1978 7-5
