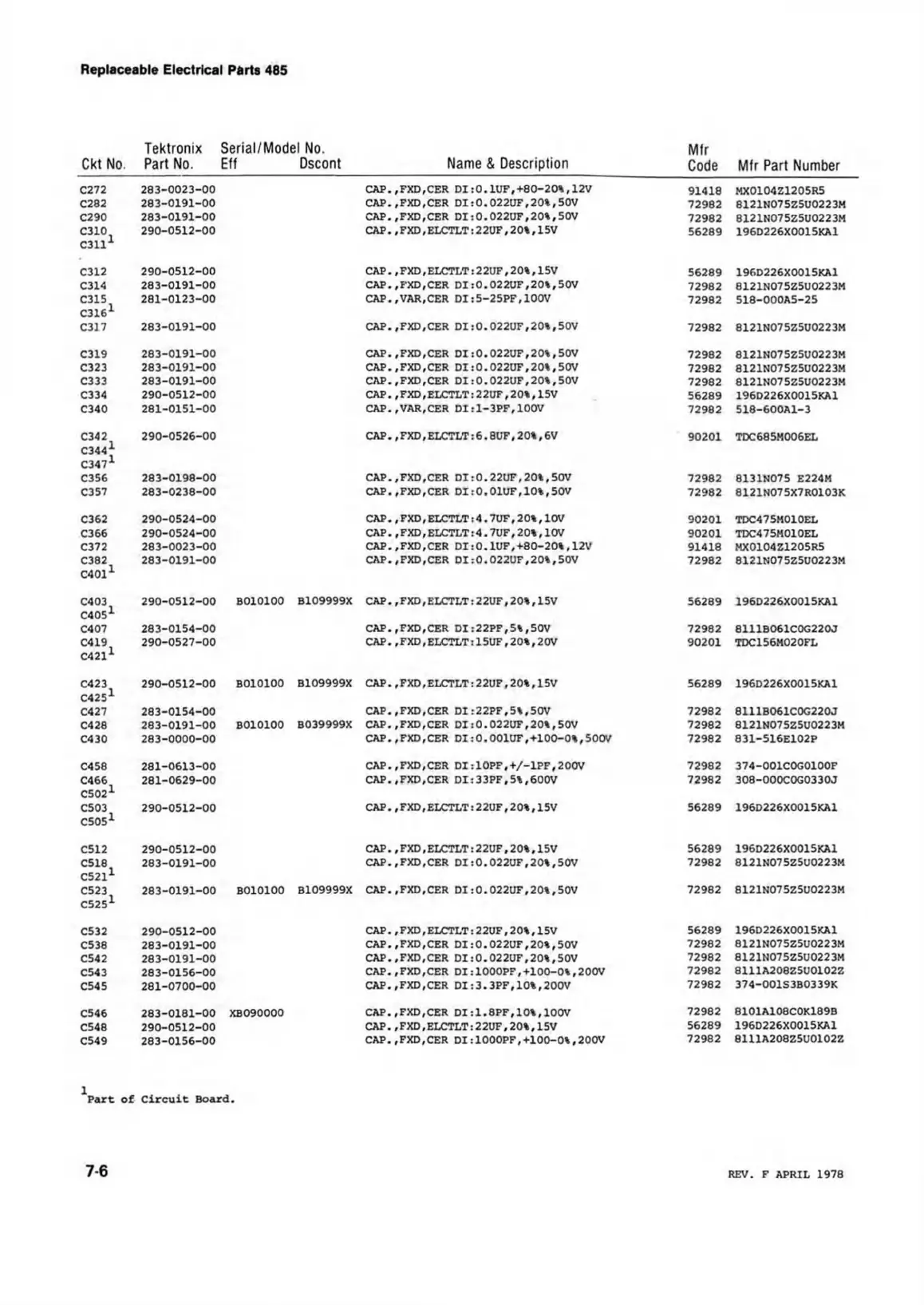

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eff Dscont
Name & Description
Mfr
Code
Mfr Part Number
C272 283-0023-00
CAP.,FXD,CER DI:0.1UF,+80-20*,12V
91418
MX0104Z1205R5
C282
283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V
72982
8121N075Z5U0223M
C290
283-0191-00
CAP.,FXD,CER DI :0.022UF,20*,50V
72982
8121N075Z5U0223M
C310
C3111
290-0512-00
CAP.,FXD,ELCTLT:22UF,20*,15V
56289 196D226X0015KA1
C312
290-0512-00
CAP.,FXD,ELCTLT:220F,20*,15V
56289 196D226X0015KA1
C314
283-0191-00
CAP.,FXD,CER DI:0.022UF,20*,50V
72982
8121N075Z5U0223M
C31S
C3161
281-0123-00
CAP.,VAR,CER DI:5-25PF,100V
72982 518-000A5-25
C317
283-0191-00
CAP.,FXD,CER DI:0.022UF,20»,50V
72982
8121N075Z5U0223M
C319
283-0191-00
CAP.,FXD,CER DI:0.022UF,20*,50V
72982
8121N075Z5U0223M
C323
283-0191-00 CAP.,FXD,CER DI:0.022UF,20*,50V
72982
8121N075Z5U0223M
C333
283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V
72982
8121N075Z5U0223M
C334
290-0512-00
CAP.,FXD,ELCTLT:22UF,20*,15V
56289 196D226X0015KA1
C340
281-0151-00
CAP. ,VAR,CER DI:1-3PF,100V
72982
518-600A1—3
C342
C344*
C3471
290-0526-00
CAP.,FXD,ELCTLT:6.8UF,20*,6V
90201 TDC685M006EL
C356
283-0198-00
CAP.,FXD,CER DI:0.22UF,20*,50V
72982 8131N075 E224M
C357
283-0238-00
CAP.,FXD,CER DI :0.01UF,10*,50V
72982
8121N075X7R0103K
C362
290-0524-00
CAP.,FXD,ELCTLT:4.7UF,20*,10V
90201
TDC475M010EL
C366
290-0524-00
CAP.,FXD,ELCTLT:4.7UF,20*,10V
90201 TDC475M010EL
C372
283-0023-00
CAP.,FXD,CER DI:0.1UF,+80-20*,12V
91418
MX0104Z1205R5
C382
C4011
283-0191-00
CAP.,FXD,CER DI:0.022UF,20*,50V
72982
8121N075Z5U0223M
C403
C40S1
290-0512-00
B010100 B109999X CAP.,FXD,ELCTLT:22UF,20*,15V
56289
196D226X0015KA1
C407
283-0154-00
CAP.,FXD,CER DI:22PF,5*,50V
72982 8111B061COG220J
C419
290-0527-00
CAP.,FXD,ELCTLT:15UF,20*,20V
90201 TDC156M020FL
C421
C423 290-0512-00
B010100 B109999X CAP.,FXD,ELCTLT:22UF,20*,15V
56289
196D226X0015KA1
C4251
C427 283-0154-00
CAP.,FXD,CER DI:22PF,5*,50V
72982
8111B061C0G220J
C428 283-0191-00
B010100
B039999X CAP.,FXD,CER DI:0.022UF,20*,50V
72982 8121N075Z5U0223M
C430 283-0000-00
CAP.,FXD,CER DI:0.001UF,+100-0*,500V
72982
831-516E102P
C458 281-0613-00
CAP.,FXD,CER DI :1OPF,+/-1PF,200V 72982 374-OOlCOGOlOOF
C466
281-0629-00
CAP.,FXD,CER DI:33PF,5*,600V 72982 3O8-OO0C0GO33OJ
C5021
C503
___ 1
290-0512-00
CAP.,FXD,ELCTLT:22UF,20*,15V
56289
196D226X0015KA1
C505
C512 290-0512-00
CAP.,FXD,ELCTLT:22UF,20*,15V 56289
196D226X0015KA1
C518
C5211
283-0191-00
CAP.,FXD,CER DI:0.022UF,20*,50V
72982 8121N075Z5U0223M
C523
CS251
283-0191-00
B010100
B109999X CAP.,FXD,CER DI:0.022UF,20*,50V 72982 8121N075Z5U0223M
C532 290-0512-00
CAP.,FXD,ELCTLT:22UF,20»,15V
56289
196D226X0015KA1
C538 283-0191-00
CAP.,FXD,CER DI:0.022UF,20*,50V
72982 8121N075Z5U0223M
C542
283-0191-00
CAP.,FXD,CER DI:0.022UF,20*,50V
72982 8121N075Z5U0223M
C543 283-0156-00
CAP.,FXD,CER DI:1000PF,+100-0*,200V
72982 8111A208Z5U0102Z
C545 281-0700-00
CAP•,FXD,CER DI:3.3PF,10*,200V
72982 374-001S3B0339K
C546 283-0181-00
XB090000
CAP.,FXD,CER DI:1.8PF,10*,100V
72982 8101A108C0K189B
C548
290-0512-00
CAP.,FXD,ELCTLT:22UF,20*,15V
56289 196D226X0015KA1
C549
283-0156-00
CAP.,FXD,CER DI:1000PF,+100-0*,200V
72982 8111A208Z5U0102Z
Part of Circuit Board.
7-6
REV. F APRIL 1978
