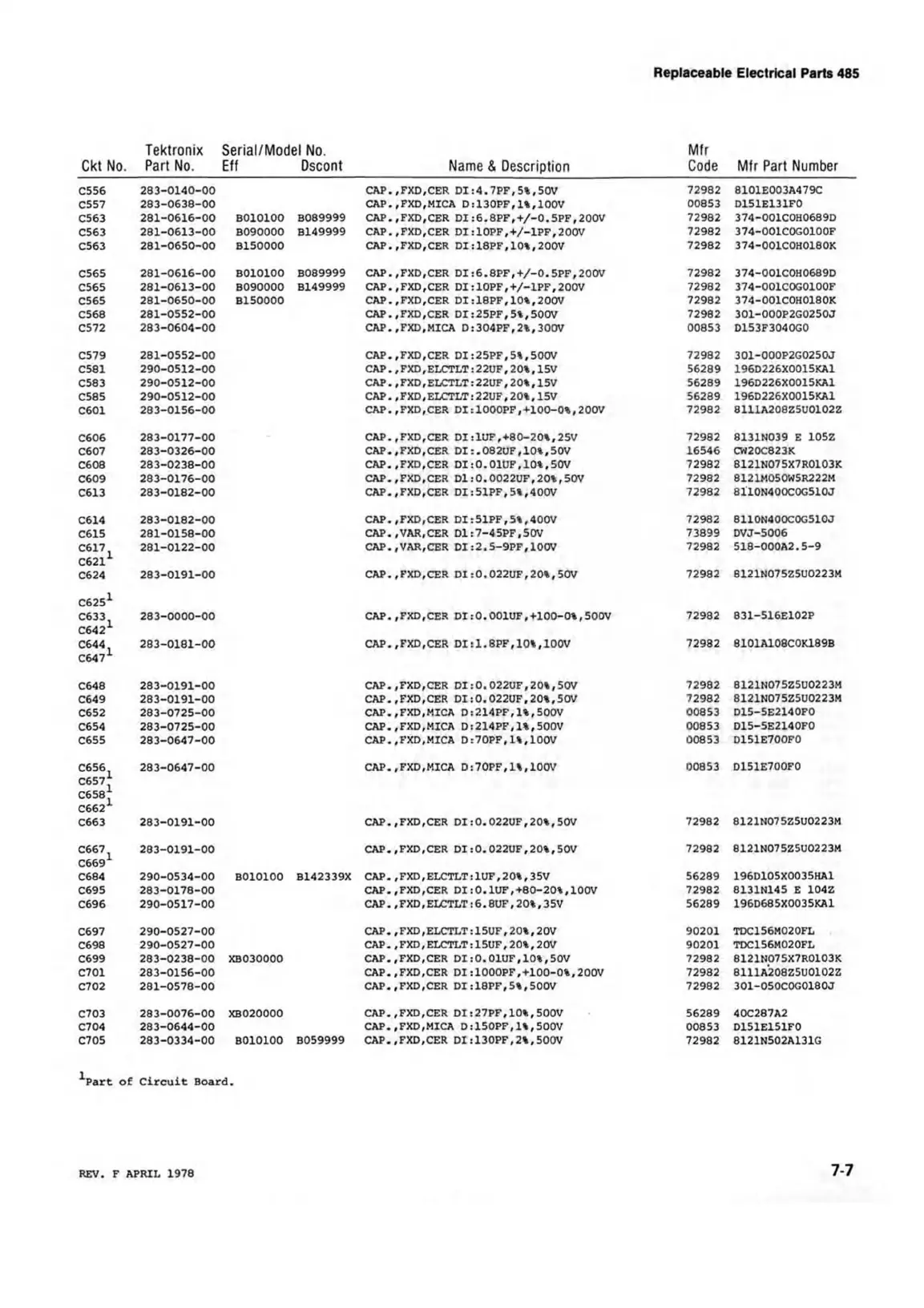

Replaceable Electrical Parts 485
Tektronix Serial/Model No.
Mtr
Ckt No.
Part No.
Eft Oscont
Name & Description
Code Mtr Part Number
C556 283-0140-00 CAP.,FXD,CER DI:4.7PF,5%,50V
72982 8101E003A479C
C557
283-0638-00
CAP.,FXD,MICA D :130PF,1%,100V 00853 D151E131F0
C563
281-0616-00
B010100
B089999
CAP.,FXD,CER DI:6.8PF,+/-0.5PF,200V
72982 374-001C0H0689D
C563
281-0613-00 B090000
B149999
CAP.,FXD,CER DI:10PF,+/-1PF,200V
72982
374-001C0G0100F
C563
281-0650-00 B150000 CAP.,FXD,CER DI:18PF,10%,200V
72982 374-001COH0180K
C565 281-0616-00
B010100
B089999
CAP.,FXD,CER DI:6.8PF,+/-0.5PF,200V
72982
374-001C0H0689D
C565
281-0613-00 B090000 B149999 CAP.,FXD,CER DI:10PF,+/-1PF,200V
72982
374-001C0G0100F
C565 281-0650-00
B150000 CAP.,FXD,CER DI:18PF,10%,200V
72982 374-001C0H018OK
C568 281-0552-00
CAP.,FXD,CER DI:25PF,5%,500V
72982 301-000P2G0250J
C572
283-0604-00
CAP.,FXD,MICA D:304PF,2»,300V 00853 D153F3040G0
C579 281-0552-00
CAP.,FXD,CER DI:25PF,5%,500V 72982 301-000P2G0250J
C581
290-0512-00 CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C583
290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C585 290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V 56289
I960226X0015 KA1
C601
283-0156-00
CAP.,FXD,CER DI:1000PF,+100-0%,200V
72982 8111A20825U0102Z
C606
283-0177-00
CAP.,FXD,CER DI:1UF,+80-20%,25V 72982
8131N039 E 105Z
C607
283-0326-00
CAP.,FXD,CER DI :.082UF,10%,50V 16546 CW20C823K
C608 283-0238-00
CAP.,FXD,CER DI:0.01UF,10%,50V
72982 8121N075X7R0103K
C609
283-0176-00 CAP.,FXD,CER DI:0.0022UF,20%,50V
72982 8121M050WSR222M
C613
283-0182-00
CAP.,FXD,CER DI:51PF,5%,400V
72982 8110N400C0G510J
C614
283-0182-00
CAP.,FXD,CER DI:51PF,5%,400V
72982 8110N400C0G510J
C615 281-0158-00
CAP.,VAR,CER DI:7-45PF,50V
73899 DVJ-5006
C617
281-0122-00
CAP.,VAR,CER DI:2.5—9PF,100V
72982 518-000A2.5-9
C62l
C624
283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V
72982
8121N075Z5U0223M
C6251
C633
283-0000-00 CAP.,FXD,CER DI:0.001UF,+100-0%,500V
72982
831-516E102P
C6421
C644
283-0181-00
CAP.,FXD,CER DI:1.8PF,10%,100V
72982 8101A108C0K189B
C6471
C648 283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V
72982
8121N075Z5U0223M
C649 283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V
72982
8121N075Z5U02 2 3M
C652 283-0725-00
CAP.,FXD,MICA D:214PF,1%,500V 00853
D15-5E2140F0
C654 283-0725-00
CAP.,FXD,MICA D:214PF,1%,500V 00853
D15-5E2140F0
C655 283-0647-00
CAP.,FXD,MICA D :7OPF,1%,100V
00853
D151E700F0
C656 283-0647-00
CAP.,FXD,MICA D:70PF,1%,100V 00853
D151E700F0
C657*
C658*
C6621
C663 283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V 72982
8121N075Z5U0223M
C667 283-0191-00
CAP.,FXD,CER DI:0.022UF,20%,50V
72982
8121N075Z5U0223M
C6691
C684 290-0534-00 B010100 B142339X
CAP. ,FXD,ELCTLT: 1UF,20%, 35V 56289
196D105X0035HA1
C695 283-0178-00 CAP.,FXD,CER DI:0.1UF,+80-20%,100V
72982
8131N145 E 104Z
C696 290-0517-00
CAP.,FXD,ELCTLT:6.8UF,20%,3 5V 56289
196D685X0035KA1
C697 290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V 90201 TDC156M020FL
C698
290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V
90201
TDC156M020FL
C699 283-0238-00 XB030000
CAP.,FXD,CER DI:0.01UF,10%,50V
72982
8121N07 5X7R0103K
C701 283-0156-00
CAP.,FXD,CER DI :1OOOPF,+100-0%,200V 72982 8111A208Z5U0102Z
C702 281-0578-00
CAP.,FXD,CER DI :18PF,5%,500V 72982 301-05OC0G0180J
C703 283-0076-00
XB020000
CAP.,FXD,CER DI:27PF,10%,500V
56289
40C287A2
C704 283-0644-00
CAP.,FXD,MICA D:150PF,1%,500V
00853 D151E151F0
C705 283-0334-00 B010100 B059999
CAP.,FXD,CER DI:130PF,2%,500V
72982
8121N502A131G
''Part of Circuit Board.
REV. F A P R I L 1978
7-7
