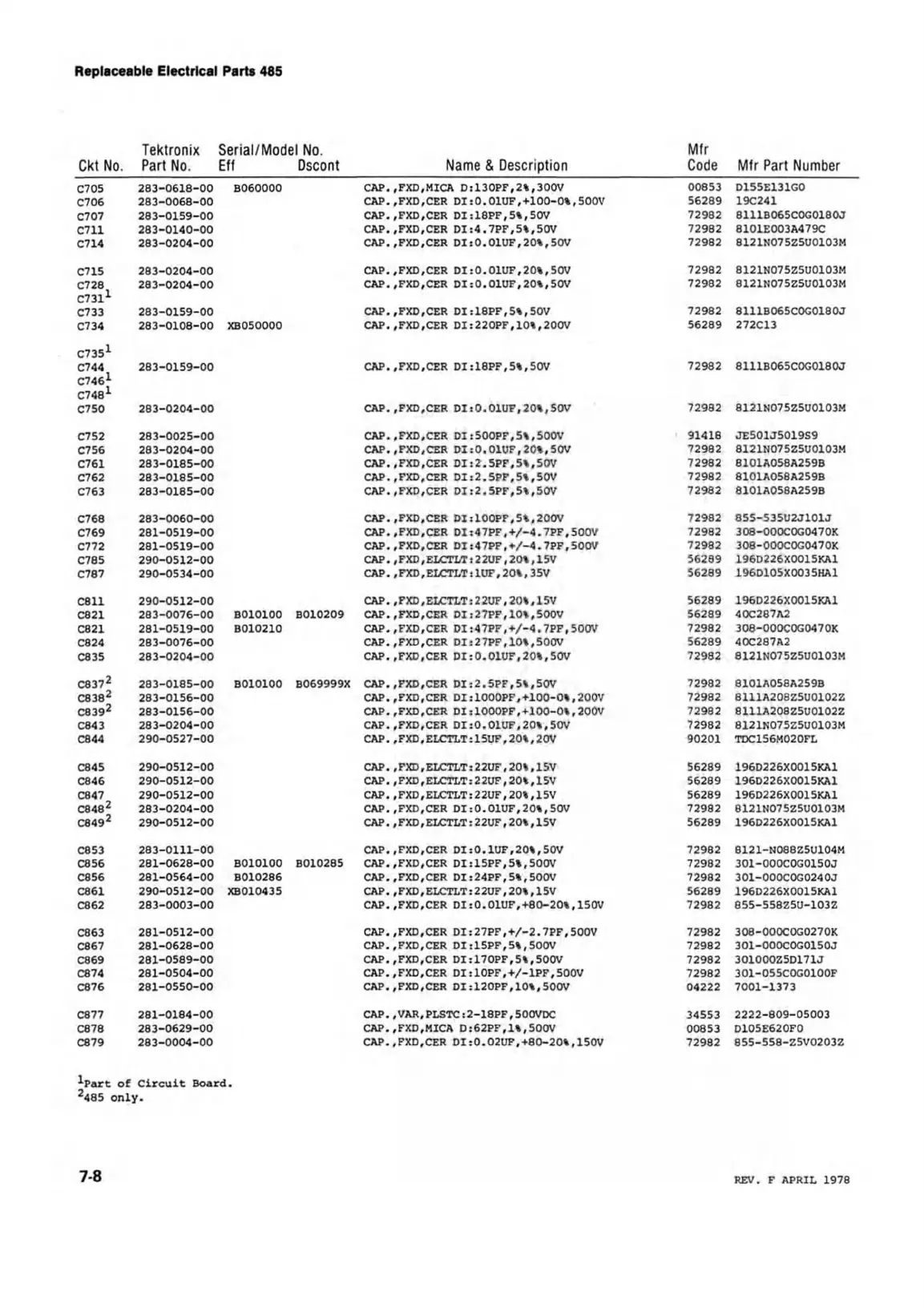

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont Name & Description
Mfr
Code Mfr Part Number
C705
283-0618-00
B060000
CAP.,FXD,MICA D:130PF,2%,300V 00853 D155E131G0
C706
283-0068-00
CAP.,FXD,CER D I:0.01UF,+100-0%,500V 56289 19C241
C707 283-0159-00
CAP.,FXD,CER DI:18PF,5%,50V
72982 8111B065C0G0180J
C711
283-0140-00
CAP.,FXD,CER DI:4.7PF,5%,50V
72982 8101E003A479C
C714
283-0204-00
CAP.,FXD/CER
DI:0.01UF,20%,50V 72982 8121N075Z5U0103M
C715
283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V
72982
8121N075Z5U0103M
C728
283-0204-00
CAP.,FXD,CER
DI:0.010F,20%,50V 72982
8121N075Z5U0103M
C7311
C733
283-0159-00
CAP. ,FXD,CER
DI:18PF,5%,50V
72982 8111B065C0G0180J
C734
283-0108-00
XB050000
CAP. ,FXD,CER DI:220PF,10%,200V 56289
272C13
C7351
C744 283-0159-00
CAP.,FXD,CER DI:18PF,5%,50V 72982 8111B065C0G0180J
C7461
C7481
C750
283-0204-00
CAP.,FXD,CER D I:0.01UF,2 0%,50V
72982 8121N075ZSU0103M
C752
283-0025-00
CAP.,FXD,CER DI:500PF,5%,500V
91418 JE501J5019S9
C756
283-0204-00
CAP.,FXD,CER DI :0.01UF,20%,50V
72982 8121N075Z5U0103M
C761 283-0185-00
CAP.,FXD,CER DI :2.5PF,5%,50V
72982
8101A058A259B
C762 283-0185-00
CAP.,FXD,CER DI:2.5PF,5%,50V
72982
8101A058A259B
C763
283-0185-00
CAP.,FXD,CER DI:2.5PF,5%,50V 72982 8101A058A259B
C768
283-0060-00
CAP.,FXD,CER DI:100PF,5%,200V
72982
855-535U2J101J
C769 281-0519-00
CAP.,FXD,CER DI:47PF,+/-4.7PF,500V
72982
308-000C0G0470K
C772 281-0519-00
CAP.,FXD,CER DI:47PF,+/-4.7PF,500V
72982
308-000C0G0470K
C785
290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V
56289 196D226X0015KA1
C787 290-0534-00
CAP.,FXD,ELCTLT:1UF,20%,35V 56289
196D105X0035HA1
C811 290-0512-00
CAP.,FXD,ELCTLT:220F,20%,15V
56289 196D226X0015KA1
C821 283-0076-00
B010100 B010209
CAP.,FXD,CER DI:27PF,10%,500V 56289
40C287A2
C821 281-0519-00
B010210 CAP.,FXD,CER DI:47PF,+/-4.7PF,500V
72982
3O8-0OOCOGO470K
C824 283-0076-00
CAP.,FXD,CER DI:27PF,10%,500V
56289
40C287A2
C83S 283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V 72982
8121N075Z5U0103M
C8372 283-0185-00 B010100
B069999X
CAP.,FXD,CER DI:2.5PF,5%,50V 72982
8101A058A259B
C8382
283-0156-00
CAP.,FXD,CER DIilOOOPF,+100-0%,200V
72982 8111A208Z5U0102Z
C8392
283-0156-00
CAP.,FXD,CER DI:1000PF,+100-0%,200V
72982 8111A208Z5U0102Z
C843
283-0204-00 CAP.,FXD,CER DI :0.01UF,20%,50V 72982 8121N075Z5U0103M
C844 290-0527-00 CAP.,FXD,ELCTLT:15UF,20%,20V
90201
TDC156M020FL
C845
290-0512-00 CAP. ,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C846
290-0512-00 CAP.,FXD,ELCTLT:2 2UF,20%,15V 56289 196D226X0015KA1
C847 290-0512-00
CAP.,FXD,ELCTLT:22UF,20%, 15V 56289 196D226X0015KA1
C8482
283-0204-00
CAP.,FXD,CER DI:0.01UF,20%,50V 72982 8121N075Z5U0103M
C8492 290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V 56289
196D226X0015KA1
C853
283-0111-00
CAP.,FXD,CER DI:0.1UF,20%,50V 72982 8121-N088Z5U104M
C856
281-0628-00 B010100 B010285 CAP.,FXD,CER DI:15PF,5%,500V
72982 301-000C0G0150J
C856 281-0564-00
B010286 CAP.,FXD,CER DI :24PF,5%,500V
72982 301-000C0G0240J
C861 290-0512-00 XB010435
CAP.,FXD,ELCTLT:22UF,20%, 15V
56289
196D226X001SKA1
C862 283-0003-00
CAP.,FXD,CER DI:0.01UF,+80-20%,150V 72982 855-558Z5U-103Z
C863
281-0512-00
CAP.,FXD,CER DI :27PF,+/-2.7PF,500V
72982 308-OOOCOG0270K
C867
281-0628-00
CAP.,FXD,CER DI:15PF,5%,500V
72982 3O1-00OCOGO150J
C869
281-0589-00 CAP.,FXD,CER DI:170PF,5%,500V 72982 301000Z5D171J
C874 281-0504-00
CAP.,FXD,CER DI:10PF,+/-1PF,500V
72982
301-055C0G0100F
C876 281-0550-00
CAP.,FXD,CER DI :120PF,10%,500V
04222
7001-1373
C877 281-0184-00
CAP.,VAR,PLSTC:2-18PF,500VDC
34553
2222-809-05003
C878
283-0629-00 CAP.,FXD,MICA D:62PF,1%,500V
00853
D105E62OF0
C879 283-0004-00 CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982 855-558-Z5V0203Z
^■Part of Circuit Board.
2485 only.
7-8
REV. F APRIL 1978
