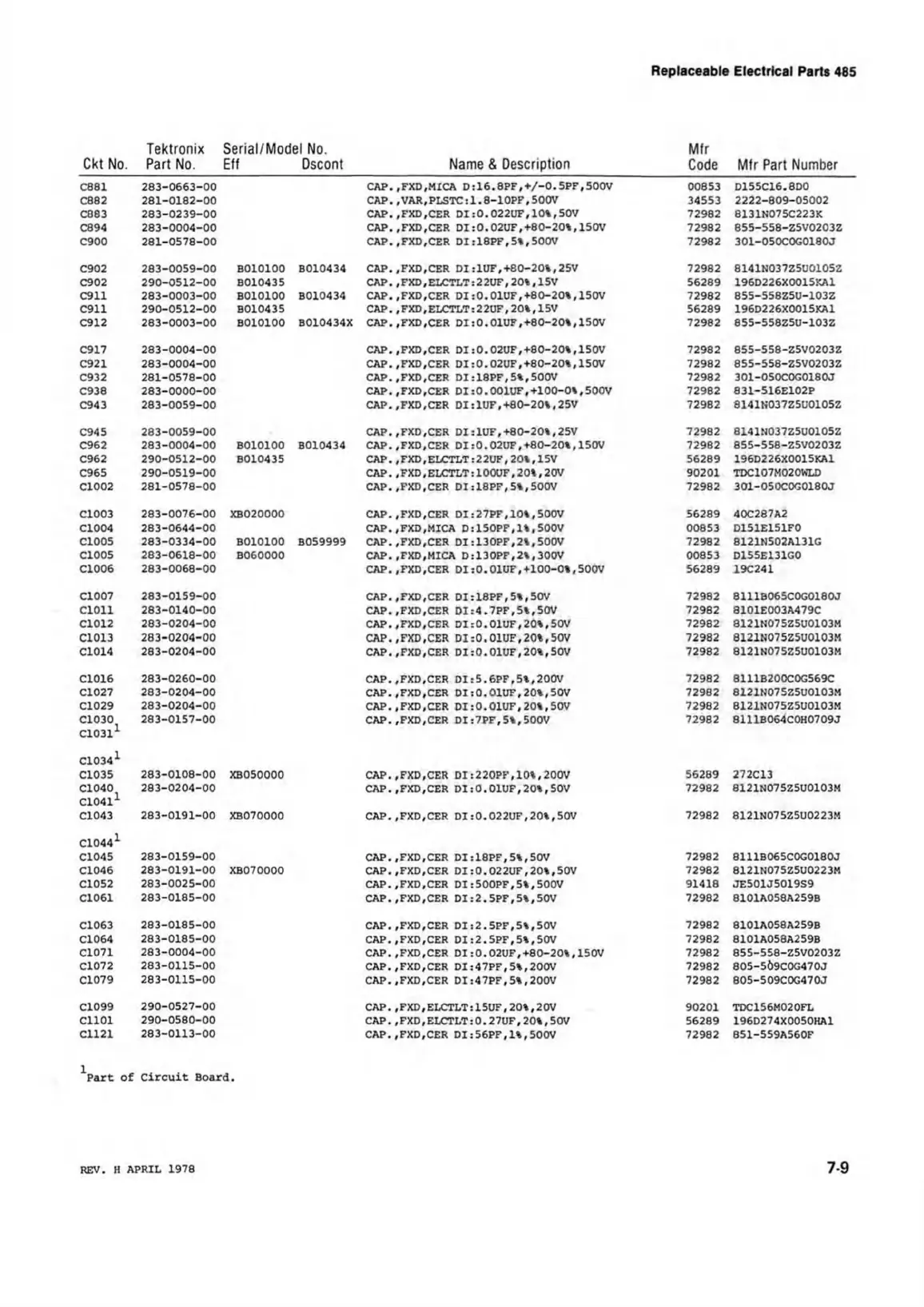

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Etf Dscont
Name & Description
Mfr
Code Mfr Part Number
C881 283-0663-00
CAP.,FXD,MICA D:16.8PF,+/-0.5PF,500V
00853
D155C16.8D0
C882 281-0182-00
CAP.,VAR, PLSTC:1.8-10PF,500V
34553
2222-809-05002
C883
283-0239-00
CAP.,FXD,CER DI:0.022UF,10%,50V
72982 8131N075C223K
C894
283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V 72982 855-558-25V0203Z
C900 281-0578-00
CAP.,FXD,CER DI:18PF,5%,500V 72982 301-050C0G0180J
C902
283-0059-00 B010100 B010434
CAP.,FXD,CER DI:1UF,+80-20%,25V
72982 8141N037Z5U010SZ
C902 290-0512-00 B010435
CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C911 283-0003-00
B010100
B010434 CAP.,FXD,CER DI:0.010F,+80-20%,150V
72982
855-558Z5U-103Z
C911 290-0512-00
B010435
CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C912 283-0003-00 B010100 B010434X CAP.,FXD,C£R DI:0.01UF,+80-20%,150V 72982 85S-558Z5U-103Z
C917
283-0004-00 CAP.,FXD,CER DI:0.02UF,+80-20%,1S0V 72982 855-558-Z5V0203Z
C921 283-0004-00 CAP.,FXD,CER DI:0.02UF,+80-20%,150V 72982
855-558-Z5V0203Z
C932
281-0578-00
CAP.,FXD,CER DI:18PF,5%,500V 72982 301-050C0G0180J
C938 283-0000-00
CAP.,FXD.CER DI:0.001UF,+100-0%,500V 72982
831-516E102P
C943 283-0059-00
CAP.,FXD,CER DI:1UF,+80-20%,25V
72982 8141N037Z5U0105Z
C945
283-0059-00 CAP.,FXD.CER DI:1UF,+80-20%,25V
72982 8141N037Z5U0105Z
C962
283-0004-00
B010100 B010434 CAP.,FXD.CER DI:0.02UF,+80-20%,150V 72982 855-558-Z5V0203Z
C962
290-0512-00
B010435 CAP. ,FXD,ELCTLT:22UF,20%,15V 56289
196D226X0015KA1
C965
290-0519-00
CAP.,FXD,ELCTLT1100UF,20%,20V 90201
TDC107M020WLD
C1002 281-0578-00 CAP..FXD.CER DI:18PF,5%,500V 72982
3O1-0S0C0GO180J
C1003
283-0076-00 XB020000 CAP.,FXD.CER DI:27PF,10%,500V 56289
40C287A2
C1004 283-0644-00
CAP.,FXD,MICA D:150PF,1%,500V
00853
D151E151FO
C1005
283-0334-00 B010100 B059999 CAP.,FXD.CER DI:130PF,2%,500V
72982 8121N502A131G
C1005
283-0618-00 B060000 CAP.,FXD,MICA D:130PF,2%,300V 00853 D155E131G0
C1006 283-0068-00
CAP.,FXD.CER DI:0.01UF,+100-0%,500V 56289
19C241
C1007
283-0159-00
CAP.,FXD.CER DI:18PF,5%,50V
72982 8111B065C0G0180J
C1011
283-0140-00 CAP..FXD.CER DI:4.7PF,5%,50V
72982
8101E003A479C
C1012 283-0204-00 CAP.,FXD.CER DI:0.01UF,20%,50V 72982
8121N075Z5U0103M
C1013 283-0204-00
CAP.,FXD.CER DI:0.01UF,20%,50V
72982 8121M075Z5U0103M
C1014 283-0204-00
CAP.,FXD.CER DI:0.01UF,20%,50V
72982
8121N075Z5U0103M
C1016
283-0260-00 CAP.,FXD.CER DI:5.6PF,5%,200V
72982 8111B200C0G569C
C1027 283-0204-00
CAP.,FXD.CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C1029 283-0204-00
CAP.,FXD.CER DI:0.01UF,20%,50V
72982
8121N075Z5U0103M
C1030
283-0157-00
CAP..FXD.CER DI:7PF,5%,500V
72982
8111B064COH0709J
C10311
C10341
C1035 283-0108-00
XB050000 CAP.,FXD.CER DI:220PF,10%,200V
56289 272C13
C1040 283-0204-00
CAP.,FXD.CER DI:0.01UF,20%,50V
72982 8121N075Z5U0103M
C10411
Cl 04 3
283-0191-00
XB070000 CAP.,FXD.CER DI:0.022UF,20%,50V
72982 8121N075Z5U0223M
C10441
C1045
283-0159-00
CAP.,FXD.CER DI:18PF,5%,50V
72982
8111B065C0G0180J
C1046
283-0191-00
XB070000
CAP.,FXD.CER DI:0.022UF,20%,50V
72982
8121N075Z5U0223M
C1052
283-0025-00
CAP.,FXD.CER DI:500PF,5%,500V
91418 JE501J5019S9
C1061 283-0185-00 CAP.,FXD.CER DI:2.5PF,5%,50V 72982 8101A058A259B
C1063
283-0185-00
CAP.,FXD.CER DI:2.5PF,5%,50V
72982
8101A058A259B
C1064
283-0185-00
CAP.,FXD.CER DI:2.5PF,5%,50V
72982 8101A058A2 59B
C1071
283-0004-00
CAP.,FXD.CER DI:0.02UF,+80-20%,150V 72982 855-558-Z5V0203Z
C1072 283-0115-00
CAP.,FXD.CER DI:47PF,5%,200V 72982
805-569C0G470J
C1079
283-0115-00
CAP.,FXD.CER DI:47PF,5%,200V 72982 805-509C0G470J
C1099 290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V
90201 TDC156M020FL
C1101
290-0580-00
CAP.,FXD,ELCTLT:0.27UF,20%,50V 56289
196D274X0050HA1
C1121 283-0113-00
CAP.,FXD.CER DI :56PF,1%,500V 72982 851-559A560F
XPart of
Circuit Board.
REV. H APRI L 1978
