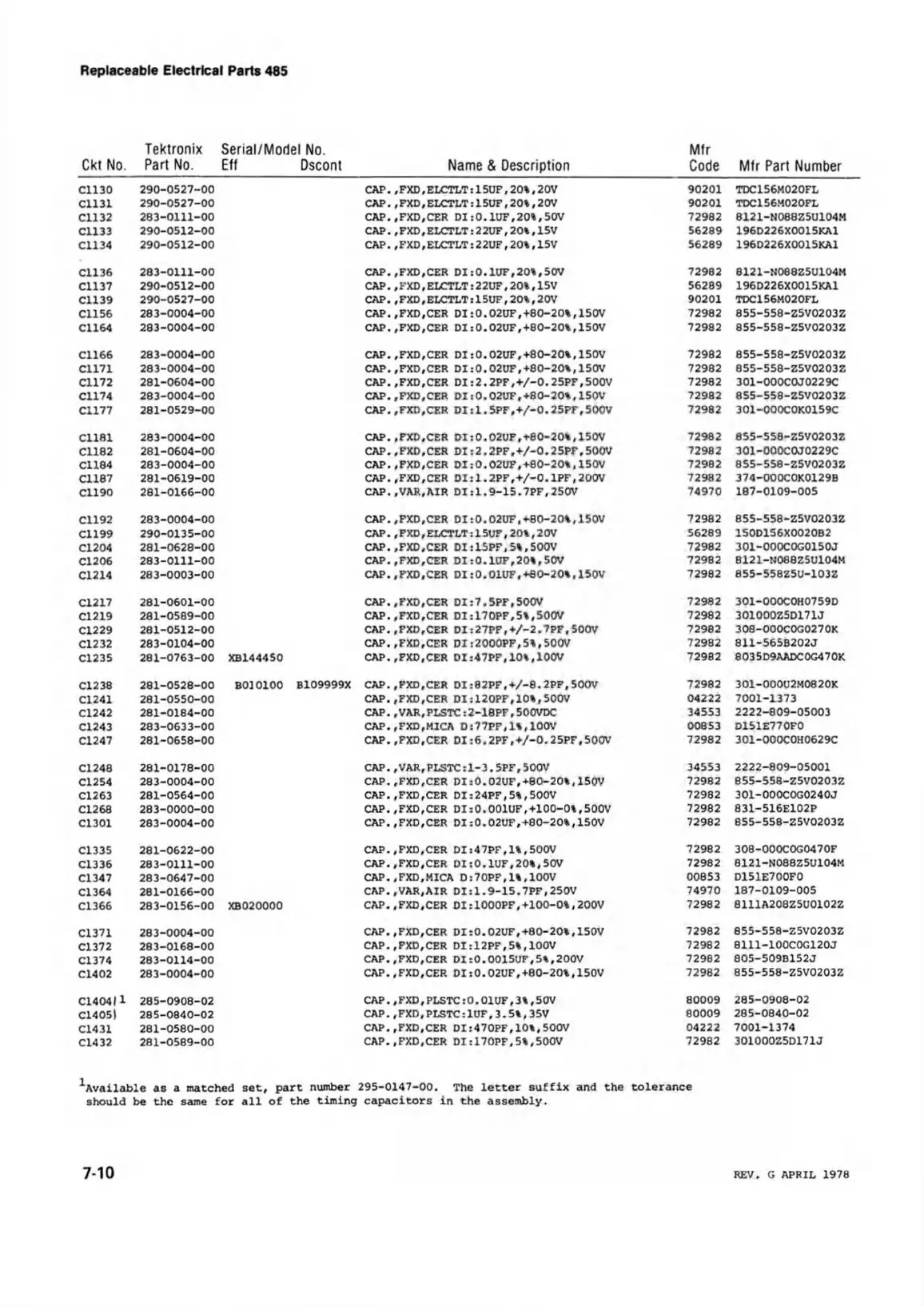

Tektronix 485 User Manual

Replaceable Electrical Parts 485
Ckt No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont Name & Description
Mfr
Code Mtr Part Number
C1130
290-0527-00 CAP. ,FXD,ELCTLT:15UF,20%,20V 90201
TDC156M020FL
C1131
290-0527-00 CAP.,FXD,ELCTLT:15UF,20%,20V 90201 TDC156M020FL
C1132
283-0111-00
CAP.,FXD,CER DI:0.1UF,20%,50V 72982
8121-N088Z5U104M
C1133
290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V
56289 196D226X0015KA1
C1134
290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C1136
283-0111-00 CAP.,FXD,CER DX:0.1UF,20%,50V 72982
8121-N088Z5U104M
C1137 290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V 56289 196D226X0015KA1
C1139
290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V
90201
TDC156M020FL
C1156
283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V 72982
855-558-Z5V0203Z
C1164
283-0004-00 CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982
855-558-Z5V0203Z
C1166
283-0004-00 CAP.,FXD,CER DI:0.02UF,+80-20%,150V 72982 855-558-Z5V0203Z
C1171 283-0004-00
CAP.,FXD,CER DI:0.020F,+80-20%,150V 72982
855-558-Z5V0203Z
C1172 281-0604-00
CAP.,FXD,CER DI:2.2PF,+/-0.25PF,500V
72982
301-OOOCOJ0229C
C1174 283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982
855-558-Z5V0203Z
C1177
281-0529-00
CAP.,FXD,CER DI :1.5PF,+/-0.25PF,500V 72982 301-000C0K0159C
C1181 283-0004-00 CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982 855-558-Z5V0203Z
C1182 281-0604-00
CAP.,FXD,CER DI:2.2PF,+/-0.25PF,500V 72982
301-000C0J0229C
C1184 283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982 855-558-Z5V0203Z
C1187 281-0619-00
CAP.,FXD,CER DI:1.2PF,+/-0.1PF,200V
72982 374-000C0K0129B
C1190
281-0166-00
CAP.,VAR,AIR DIsl.9-15.7PF,250V
74970 187-0109-005
C1192
283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982
855-558-Z5V0203Z
C1199
290-0135-00
CAP.,FXD,ELCTLT:15UF,20%,20V 56289 150D156X0020B2
C1204
281-0628-00
CAP.,FXD,CER DI:15PF,5%,500V
72982 301-000C0G0150J
C1206
283-0111-00
CAP.,FXD.CER DI:0.1UF,20%,50V 72982
8121-N088Z5U104M
C1214
283-0003-00
CAP.,FXD,CER DI:0.01UF,+80-20%,150V
72982
855-558Z5U-103Z
C1217
281-0601-00
CAP.,FXD,CER DI:7.5PF,500V 72982
3O1-0O0C0H0759D
C1219
281-0589-00
CAP.,FXD,CER DI:170PF,5%,500V 72982 301000Z5D171J
C1229
281-0512-00
CAP.,FXD,CER DI:27PF,+/-2.7PF,500V
72982
308-O0OC0G0270K
C1232
283-0104-00
CAP.,FXD.CER DI:2000PF,5%,500V
72982 811-565B202J
C1235 281-0763-00
XB144450
CAP.,FXD.CER DI:47PF,10%,100V
72982 8035D9AADC0G470K
C1238
281-0528-00
B010100
B109999X
CAP..FXD.CER DI:82PF,+/-8.2PF,500V 72982 3O1-OOOU2MO820K
C1241 281-0550-00
CAP.,FXD.CER DI:120PF,10%,500V
04222 7001-1373
C1242 281-0184-00
CAP.,VAR,PLSTC:2-18PF,500VDC 34553
2222-809-05003
C1243
283-0633-00
CAP.,FXD,MICA D:77PF,1%,100V
00853 D151E770F0
C1247
281-0658-00
CAP..FXD.CER DI:6.2PF,+/-0.25PF,500V
72982 301-000C0H0629C
C1248 281-0178-00
CAP.,VAR,PLSTC:1-3.5PF,500V 34553
2222-809-05001
C1254
283-0004-00
CAP..FXD.CER DI:0.02UF,+80-20%,150V
72982
855-558-Z5V0203Z
C1263 281-0564-00
CAP..FXD.CER DI :24PF,5%,500V
72982 301-OOOCOG0240J
C1268
283-0000-00
CAP..FXD.CER DI:0.001UF,+100-0%,500V 72982 831-516E102P
C1301
283-0004-00
CAP.,FXD,CER DI:0.020F,+80-2 0%,150V
72982 855-558-Z5V0203Z
C1335 281-0622-00
CAP.,FXD.CER DI:47PF,1%,500V
72982
308-000C0G0470F
C1336
283-0111-00
CAP..FXD.CER DI:0•1UF,20%,50V
72982
8121-N088Z5U104M
Cl 34 7 283-0647-00
CAP.,FXD,MICA D:70PF,1%,100V
00853 D151E700F0
Cl 364 281-0166-00
CAP.,VAR,AIR DI:1.9-15.7PF,250V 74970
187-0109-005
C1366 283-0156-00
XB020000
CAP..FXD.CER DI:1000PF,+100-0%,200V
72982 8111A208Z5U0102Z
C1371 283-0004-00
CAP.,FXD,CER DI:0.02UF,+80-20%,150V
72982 855-558-Z5V0203Z
Cl 37 2 283-0168-00
CAP.,FXD.CER DI:12PF,5%,100V
72982
8111-100COG120J
C1374
283-0114-00
CAP.,FXD,CER DI:0.0015UF,5%,200V
72982 805-509B152J
C1402 283-0004-00
CAP.,FXD,CER DI:0.020F,+80-20%,150V
72982 855-558-Z5V0203Z
C1404I1 285-0908-02
CAP.,FXD,PLSTC:0.01UF,3%,50V 80009
285-0908-02
C1405I
285-0840-02
CAP.,FXD,PLSTC:1UF,3.5%,35V
80009
285-0840-02
C1431
281-0580-00
CAP.,FXD,CER DI:470PF,10%,500V
04222 7001-1374
C1432
i
281-0589-00
CAP.,FXD,CER DI:170PF,5%,500V
72982
301000Z5D171J
Available as a matched set, part number 295-0X47-00. The letter suffix and the tolerance
should be the same for all of the timing capacitors in the assembly.
7-10 REV. G APRIL 1978
