Tektronix 485 User Manual

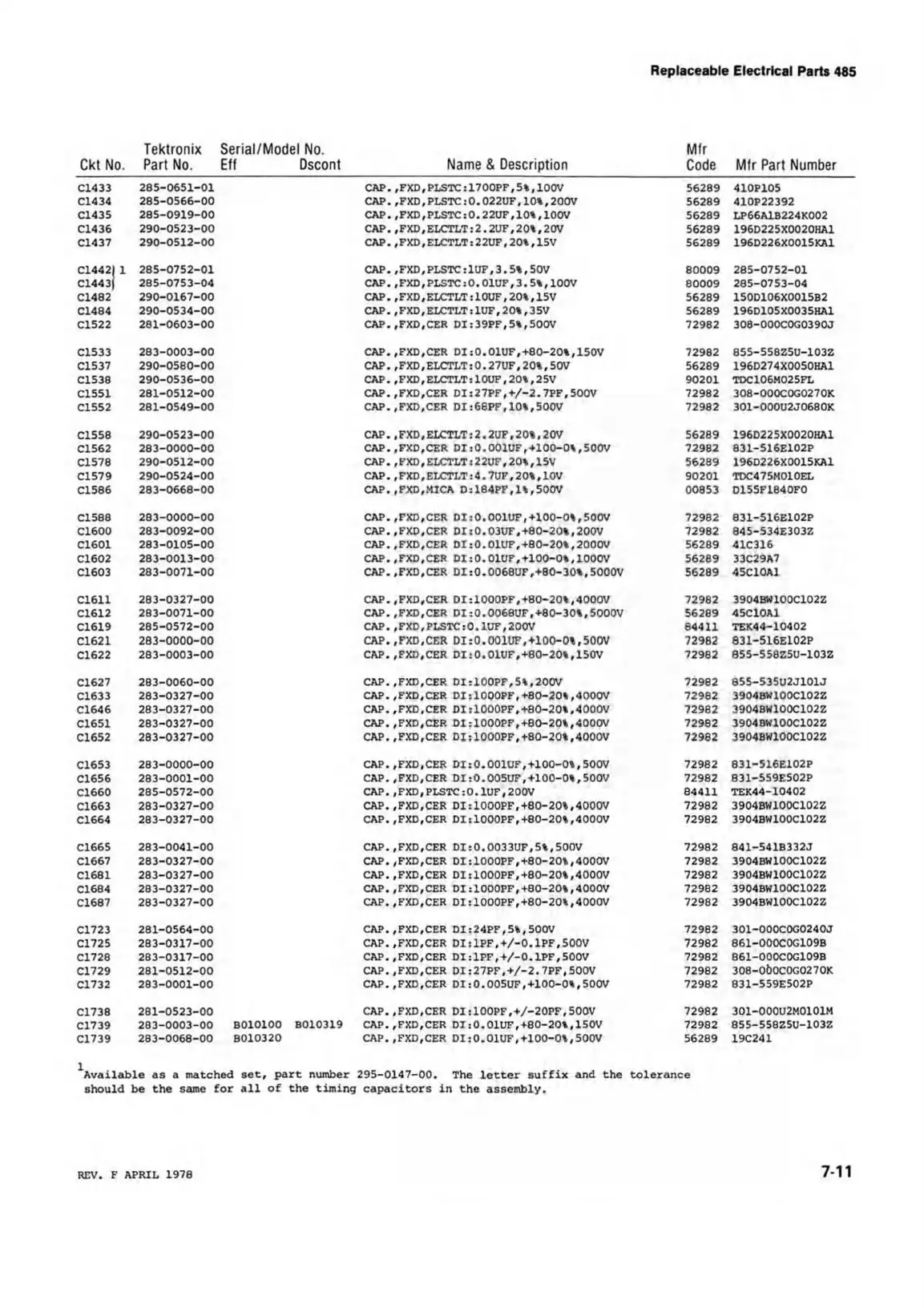

Replaceable Electrical Parts 485
Ckt No.
Tektronix Serial/Model No.
Part No. Eff Dscont
Name & Description
Mfr
Code
Mfr Part Number
C1433
285-0651-01
CAP.,FXD,PLSTC:17 OOPF,5%,100V
56289 410P105
C1434
285-0566-00 CAP.,FXD,PLSTC:0.022UF,10%,200V
56289 410P22392
C1435 285-0919-00 CAP.,FXD,PLSTC:0.22UF,10%,100V
56289 LP66A1B224K002
C1436
290-0523-00
CAP.,FXD,ELCTLT:2.2UF,20%,20V
56289 196D225X0020HA1
C1437 290-0512-00 CAP.,FXD,ELCTLT:2 2UF,2 0%,15 V
56289
196D226X0015KA1
C14421 1 285-0752-01 CAP.,FXD,PLSTC:1UF,3.5%,50V
80009 285-0752-01
C1443|
285-0753-04 CAP.,FXD,PLSTC:0.01UF,3.5%,100V
80009
285-0753-04
C1482 290-0167-00
CAP. ,FXD,ELCTLT: 10UF, 20%, 15V
56289
150D106X0015B2
C1484
290-0534-00
CAP. ,FXD,ELCTLT:1UF,20%,35V
56289
196D105X0035HA1
C1522
281-0603-00
CAP.,FXD,CER DI:39PF,5%,500V
72982 3O8-O0OCOG0390J
C1533
283-0003-00 CAP.,FXD,CER DI:0.01UF,+80-20%,150V 72982
855-558Z5U-103Z
C1537 290-0580-00
CAP.,FXD,ELCTLT:0.27UF,20%,50V
56289
196D274X0050HA1
C1538 290-0536-00
CAP.,FXD,ELCTLT:10UF,20%,25V
90201 TDC106M025FL
C1551 281-0512-00
CAP.,FXD,CER DI:27PF,+/-2.7PF,500V 72982 308-000C0G0270K
C1552
281-0549-00
CAP.,FXD,CER DI:68PF,10%,500V
72982 301-000U2J0680K
C1558
290-0523-00
CAP.,FXD,ELCTLT:2.2UF,20%,20V
56289
196D225X0020HA1
C1562 283-0000-00
CAP.,FXD,CER DI:0.001UF,+100-0%,500V
72982 831-516E102P
C1578 290-0512-00
CAP.,FXD,ELCTLT:22UF,20%,15V
56289
196D226X0015KA1
C1579
290-0524-00
CAP.,FXD,ELCTLT:4.7UF,20%,10V
90201
TDC475M010EL
C1586 283-0668-00
CAP.,FXD,MICA D:184PF,1%,500V
00853
D155F1840F0
C1588 283-0000-00
CAP.,FXD,CER DI:0.001UF,+100-0%,500V 72982 831-516E102P
C1600 283-0092-00
CAP•,FXD,CER DI:0.03UF,+80-20%,200V
72982 845-534E303Z
C1601 283-0105-00
CAP.,FXD,CER DI:0.01UF,+80-20%,2000V 56289
41C316
C1602 283-0013-00
CAP.,FXD,CER DI:0.01UF,+100-0%,1000V
56289
33C29A7
C1603 283-0071-00 CAP.,FXD,CER DI :0.0068UF,+80-30%,5000V 56289 45C10A1
C1611
283-0327-00 CAP.,FXD,CER DI:1000PF,+80-20%,4000V
72982
3904BW100C102Z
C1612 283-0071-00
CAP.,FXD,CER DI:0.0068UF,+80-30%,5000V 56289
45C10A1
C1619 285-0572-00
CAP.,FXD,PLSTC:0.1UF,200V 84411 TEK44-10402
C1621
283-0000-00 CAP.,FXD,CER DI:0.001UF,+100-0%,500V 72982
831-516E102P
C1622 283-0003-00
CAP.,FXD,CER DIiO.OlUF,+80-20%,150V 72982
855-558Z5U-103Z
C1627 283-0060-00
CAP.,FXD,CER DI:100PF,5%,200V 72982 855-535U2J101J
C1633 283-0327-00
CAP.,FXD,CER DI:1000PF,+80-20%,4000V
72982
3904BW100C102Z
C1646
283-0327-00 CAP.,FXD,CER DItlOOOPF,+80-20%,4000V 72982
3904BW100C102Z
C1651 283-0327-00
CAP.,FXD,CER DI:1000PF,+80-20%,4000V 72982 3904BW100C102Z
C1652 283-0327-00 CAP.,FXD,CER DI:1000PF,+80-20%,4000V 72982
3904BW100C102Z
C1653 283-0000-00
CAP.,FXD,CER DItO.OOlUF,+100-0%,500V 72982
831-516E102P
C1656 283-0001-00
CAP.,FXD,CER DI:0.005UF,+100-0%,500V
72982
831-559E502P
C1660
285-0572-00
CAP.,FXD,PLSTCtO.lUF,200V 84411
TEK44-10402
C1663
283-0327-00
CAP.,FXD,CER DItlOOOPF,+80-20%,4000V
72982 3904BW100C102Z
C1664 283-0327-00
CAP.,FXD,CER DItlOOOPF,+80-20%,4000V
72982
3904BW100C102Z
C1665 283-0041-00 CAP.,FXD,CER DI:0.0033UF,5%,500V 72982
841-541B332J
C1667 283-0327-00
CAP.,FXD,CER DItlOOOPF,+80-20%,4000V
72982
3904BW100C102Z
C1681 283-0327-00
CAP.,FXD,CER DItlOOOPF,+80-20%,4000V 72982
3904BW100C102Z
C1684
283-0327-00
CAP.,FXD,CER DItlOOOPF,+80-20%,4000V 72982
3904BW100C102Z
C1687
283-0327-00
CAP.,FXD,CER DItlOOOPF,+80-20%,4000V
72982
3904BW100C102Z
C1723
281-0564-00
CAP.,FXD,CER DI:24PF,5%,500V
72982
3O1-OO0COG024OJ
C1725 283-0317-00 CAP.,FXD,CER DItlPF,+/-0.1PF,500V
72982 861-OOOCOG109B
C1728 283-0317-00
CAP.,FXD,CER DI:lPF,+/-0.1PF,500V 72982
861-OOOCOG109B
C1729
281-0512-00
CAP.,FXD,CER DI:27PF,+/-2.7PF,500V 72982
308-ObOC0G0270K
C1732 283-0001-00
CAP.,FXD,CER DI:0.005UF,+100-0%,500V
72982
831-559E502P
C1738
281-0523-00
CAP.,FXD,CER DI:100PF,+/-20PF,500V
72982
301-000U2M0101M
C1739
283-0003-00 B010100
B010319 CAP.,FXD,CER DItO.OlUF,+80-20%,150V
72982
855-558Z5U-103Z
C1739
283-0068-00 B010320 CAP.,FXD,CER DItO.OlUF,+100-0%,500V
56289 19C241
^Available as a matched set, part number 295-0147-00. The letter suffix and the tolerance
should be the same for all of the timing capacitors in the assembly.
REV. F A P RIL 1978
7-11
