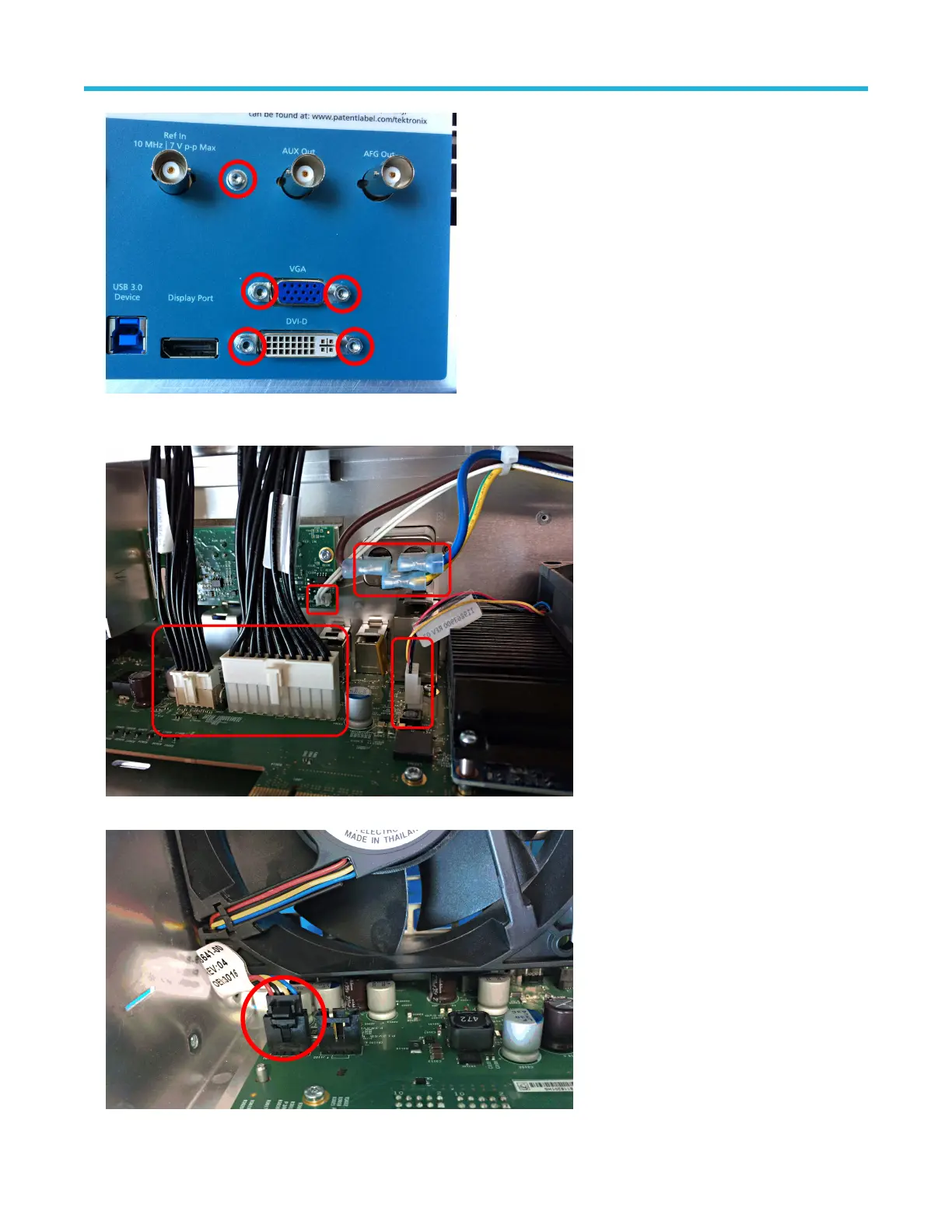

2. Disconnect the black cables connecting the power supply to the carrier interface assembly and the white cable on the AFG riser board.
Y
ou do not need to disconnect the AC line filter cables.
3. Disconnect fan cable.
Maintenance
5 Series MSO Service Manual MSO54, MSO56, MSO58 25
