Tektronix 5 Series MSO Service Manual

Troubleshooting flow chart
Follow the troubleshooting flow chart to determine the action for a fault condition.

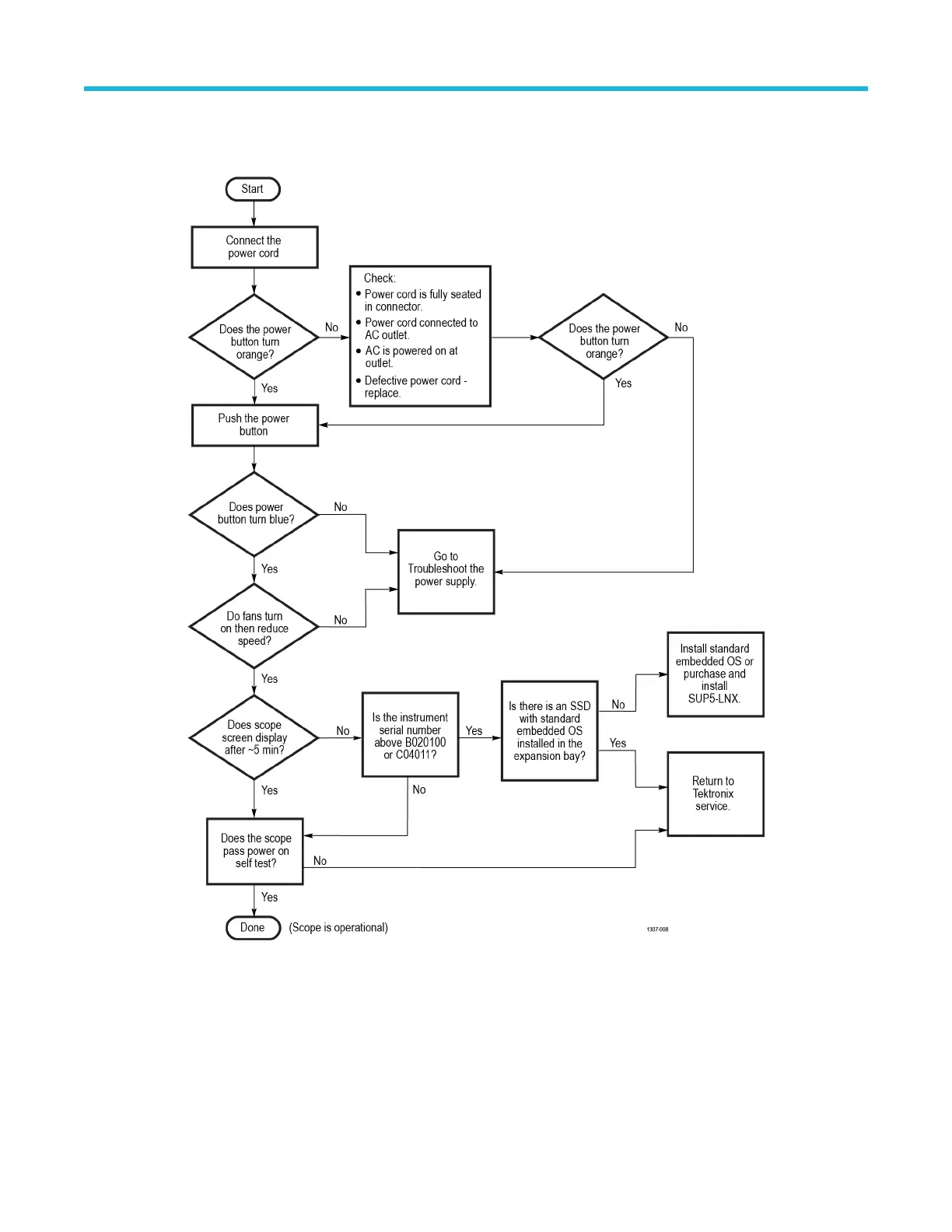

Figure 2: Primary troubleshooting tree
Status LEDs. A set of six bi-color LEDs report the power management status of the instrument. These LEDs are located under the cover
on the bottom of the instrument.
Maintenance
5 Series MSO Service Manual MSO54, MSO56, MSO58 31
