Tektronix 5 Series MSO Service Manual

Mid-plane chassis

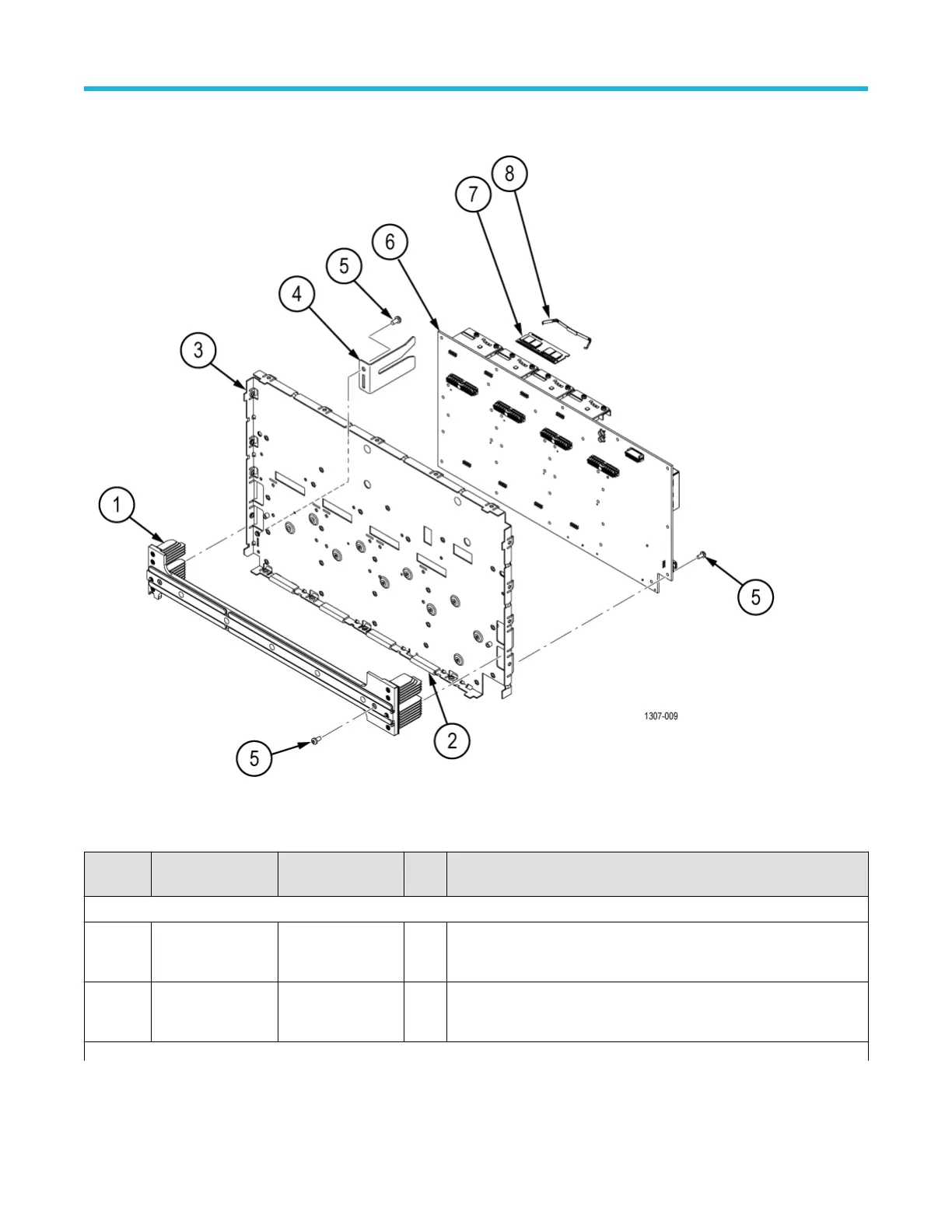

Figure 7: Mid-plane chassis exploded view
Table 9: Mid-plane chassis
Index
number
Tektronix part
number
Serial no. effective Qty Name & description
Figure 7 on page 44
-1 214-5469-XX 1 HEATSINK, AFE 4-8 CHANNEL
Return the instrument to Tektronix for service.
-2 348-2298-XX B020000 and above
C040000 and above
4 GASKET, CONDUCTIVE FOAM W/PSA 12MM X 29MM X 1.5MM THICK
Table continued…
Replaceable parts
5 Series MSO Service Manual MSO54, MSO56, MSO58 44
