Tektronix 5 Series MSO Service Manual

Front panel and display

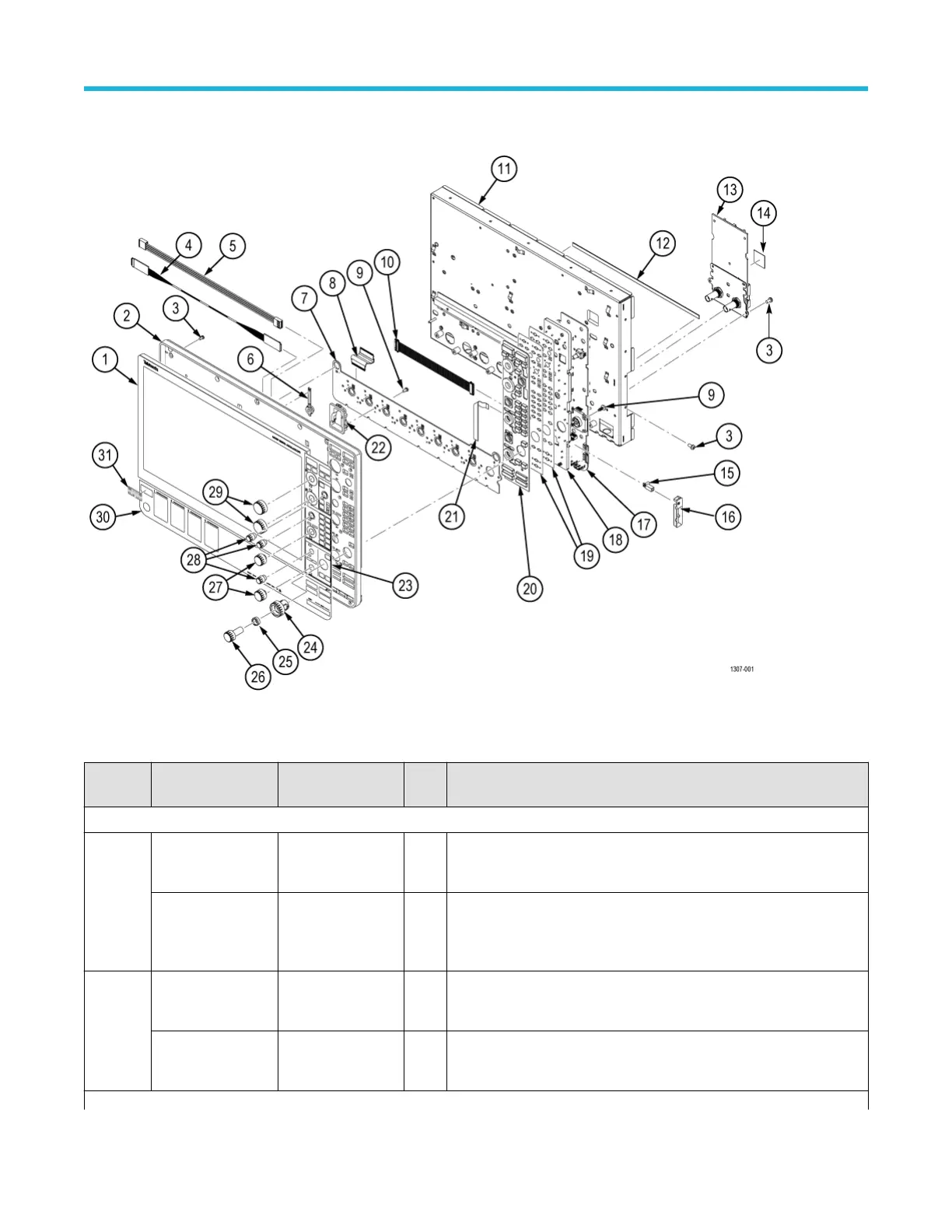

Figure 8: Front panel and display exploded view
Table 10: Front panel and display
Index
number
Tektronix part
number
Serial no. effective Qty Name & description
Figure 8 on page 46
-1 119-8396-XX Below B020000
Below C040000
1 TOUCHSCREEN-LCD ASSEMBLY, SAFETY CONTROLLED
Return the instrument to Tektronix for service.
065-1077-XX B020000 and above
C040000 and above
1 MODULE ASSY; SERVICE REPLACEMENT; 119910100 DISPLAY W/
MECHANICALS
Return the instrument to Tektronix for service.
-2 202-0520-XX Below B020000
Below C040000
1 CASE, FRONT, SAFETY CONTROLLED
Return the instrument to Tektronix for service.
202-0582-XX B020000 and above
C040000 and above
1 CASE, FRONT
Return the instrument to Tektronix for service.
Table continued…
Replaceable parts
5 Series MSO Service Manual MSO54, MSO56, MSO58 46
