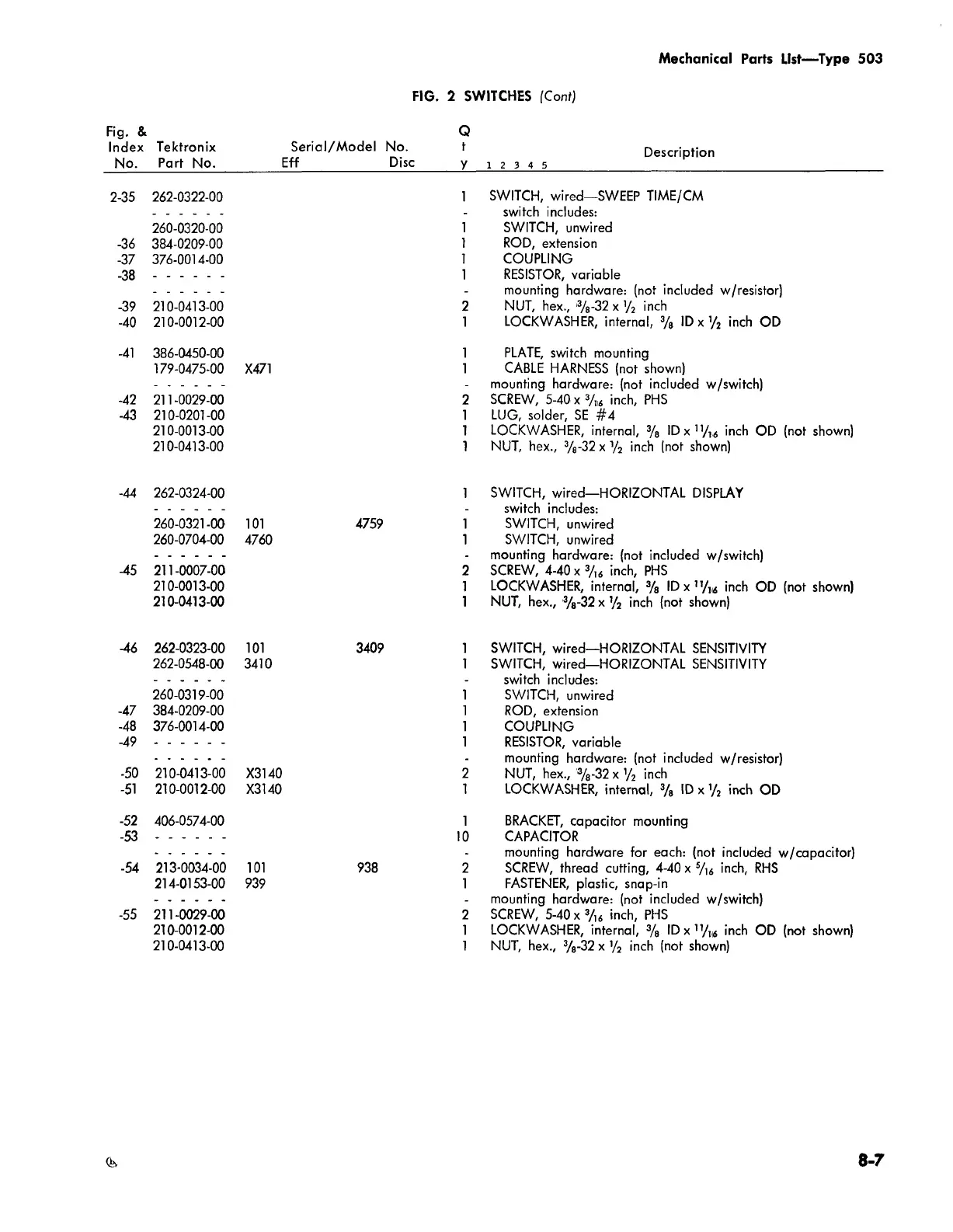

Mechanical Parts List— Type 503
FIG. 2 SWITCHES (ConfJ
Fig. &
Index
No.
Tektronix
Part No.
Serial/M odel No.
Eff Disc
Q
t
y
Description
1 2 3 4 5
2-35 262-0322-00
l
SWITCH, wired— SWEEP TIME/CM
-
switch includes:
260-0320-00
l SWITCH, unwired
-36 384-0209-00
i ROD, extension
-37
376-0014-00
l COUPLING
-38
l
RESISTOR, variable
-
mounting hardware: (not included w/resistor)
-39
210-0413-00 2
NUT, hex., 3/8-32 x ’/ 2 inch
-40
210-0012-00
1 LOCKWASHER, internal, % ID x ’/ j inch OD
-41 386-0450-00
1 PLATE, switch mounting
179-0475-00 X471
1 CABLE HARNESS (not shown)
-
mounting hardware: (not included w/switch)
-42 211-0029-00
2
SCREW, 5-40 x 3/„4 inch, PHS
-43 210-0201-00
1 LUG, solder, SE # 4
210-0013-00
1
LOCKWASHER, internal, 3/8 ID x n/ 14 inch OD (not shown)
210-0413-00 1 NUT, hex., 3/8-32xV2 inch (not shown)
-44
262-0324-00
1
SWITCH, wired— HORIZONTAL DISPLAY
-
switch includes:
260-0321-00
101
4759
1 SWITCH, unwired
260-0704-00
4760
1
SWITCH, unwired
-
mounting hardware: (not included w/switch)
-45 211-0007-00
2
SCREW, 4-40 x inch, PHS
210-0013-00 1
LOCKWASHER, internal, 3/8 ID x 1 inch OD (not shown)
210-0413-00 1 NUT, hex., %-32 x ’/2 inch (not shown)
-46
262-0323-00 101 3409
1 SWITCH, wired— HORIZONTAL SENSITIVITY
262-0548-00
3410 1 SWITCH, wired—HORIZONTAL SENSITIVITY
-
switch includes:
260-0319-00
1
SWITCH, unwired
-47
384-0209-00 1
ROD, extension
-48 376-0014-00
1 COUPLING
-49 1
RESISTOR, variable
-
mounting hardware: (not included w/resistor)
-50 210-0413-00
X3140
2
NUT, hex., 3/8-32 x '/2 inch
-51
210-0012-00 X3140
1
LOCKWASHER, internal, 3/8 ID x '/2 inch OD
-52 406-0574-00 1 BRACKET, capacitor mounting
-53
10
CAPACITOR
-
mounting hardware for each: (not included w/capacitor)
-54
213-0034-00 101 938 2 SCREW, thread cutting, 4-40x5/]4 inch, RHS
214-0153-00
939
1
FASTENER, plastic, snap-in
-
mounting hardware: (not included w/switch)
-55
211-0029-00
2 SCREW, 5-40 x 3/ i4 inch, PHS
210-0012-00 1 LOCKWASHER, internal, 3/8 ID x 1 inch OD (not shown)
210-0413-00
1 NUT, hex., 3/8-32 x ’/2 inch (not shown)
fe 8 -7
