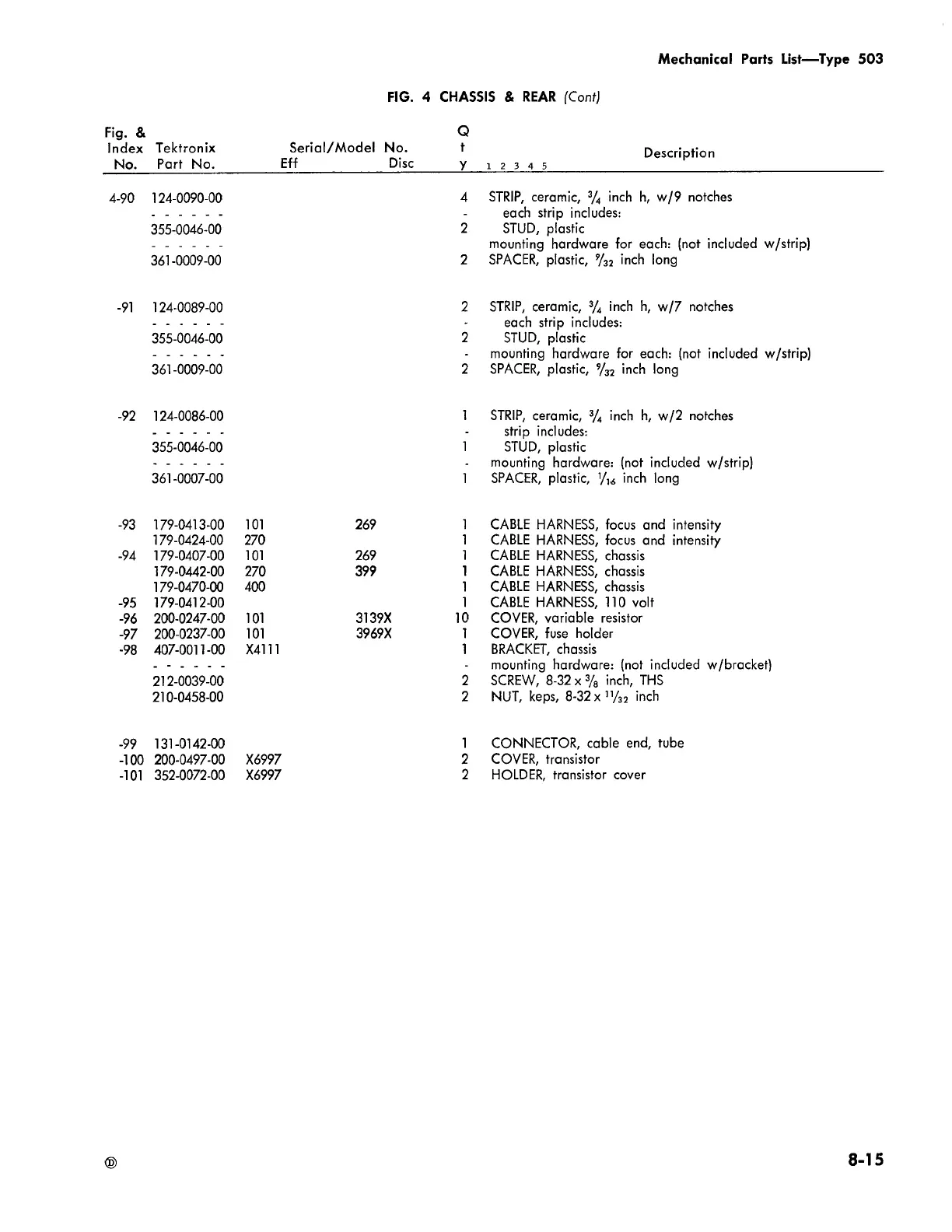

FIG. 4 CHASSIS & REAR (Cont)
Mechanical Parts List— Type 503
Fig. &
Index
No.
Tektronix
Part No.
Serial/M odel No.
Eff Disc
Q
t
y
Description
1 2 3 4 5
4-90 124-0090-00
4 STRIP, ceramic, 3/4 inch h, w /9 notches
-
each strip includes:
355-0046-00
2
STUD, plastic
mounting hardware for each: (not included w/strip)
361-0009-00
2 SPACER, plastic, 9/ 32 inch long
-91 124-0089-00
2 STRIP, ceramic, 3/4 inch h, w /7 notches
-
each strip includes:
355-0046-00
2
STUD, plastic
-
mounting hardware for each: (not included w/strip)
361-0009-00
2 SPACER, plastic, 9/ 32 inch long
-92 124-0086-00
1
STRIP, ceramic, 3/4 inch h, w /2 notches
-
strip includes:
355-0046-00
1
STUD, plastic
-
mounting hardware: (not included w/strip)
361-0007-00
1 SPACER, plastic, %l4 inch long
-93 179-0413-00
101
269
1 CABLE HARNESS, focus and intensity
179-0424-00
270
1
CABLE HARNESS, focus and intensity
-94 179-0407-00 101 269
1
CABLE HARNESS, chassis
179-0442-00
270
399
1 CABLE HARNESS, chassis
179-0470-00
400 1 CABLE HARNESS, chassis
-95
179-0412-00
1
CABLE HARNESS, 110 volt
-96
200-0247-00
101
3139X
10 COVER, variable resistor
-97
200-0237-00 101
3969X 1
COVER, fuse holder
-98
407-0011-00
X4111 1 BRACKET, chassis
-
mounting hardware: (not included w/bracket)
212-0039-00
2 SCREW, 8-32 x 3/8 inch, THS
210-0458-00
2 NUT, keps, 8-32x ,1/32 inch
-99
131-0142-00
1 CONNECTOR, cable end, tube
-100
200-0497-00 X6997
2
COVER, transistor
-101
352-0072-00 X6997
2 HOLDER, transistor cover
8 -1 5
