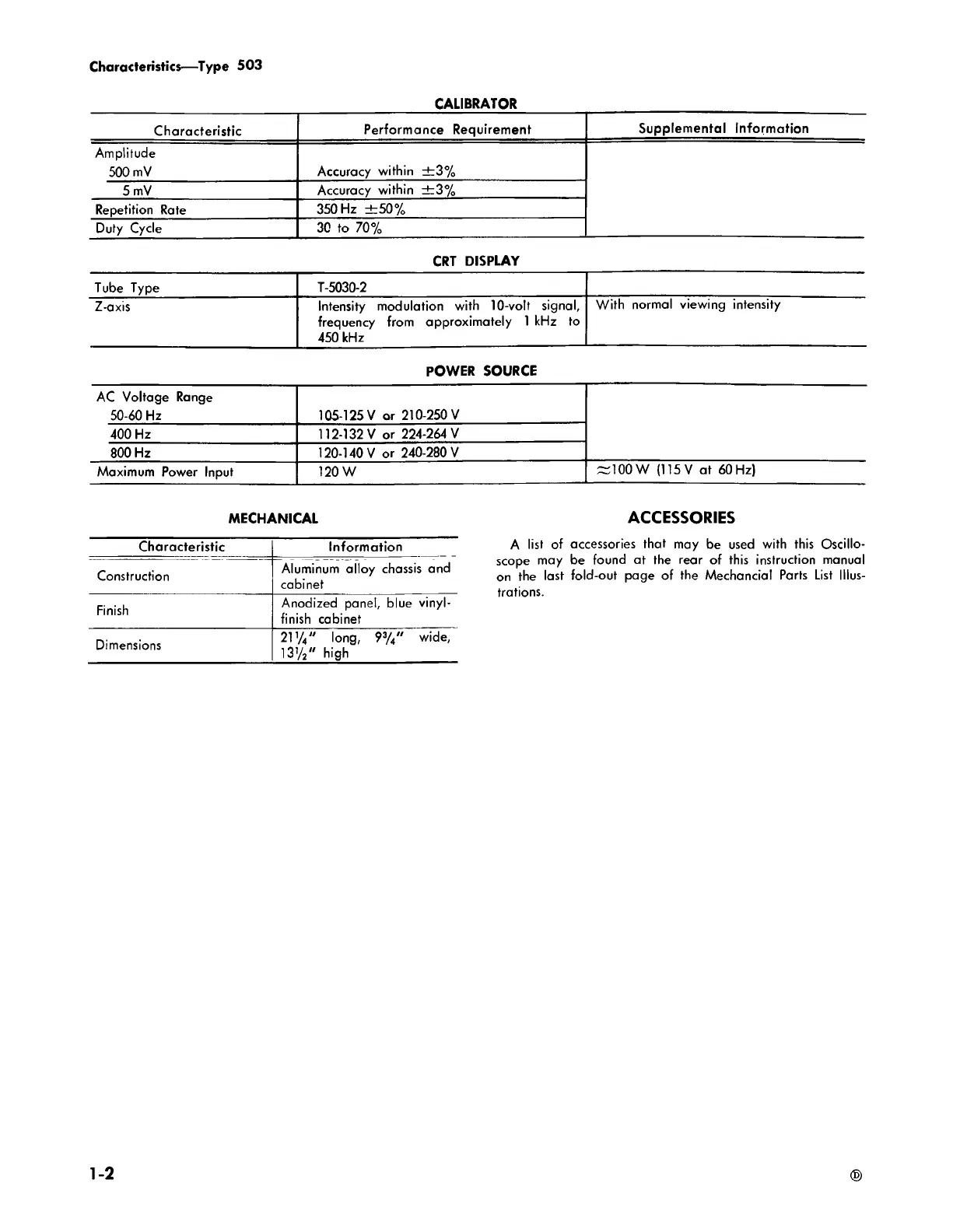

Characteristics— Type 503
CALIBRATOR
Characteristic
Performance Requirement
Supplemental Information
Amplitude
500 mV
Accuracy within ± 3 %
5 mV
Accuracy within ± 3 %
Repetition Rate
350 Hz ±5 0%
Duty Cycle
30 to 70%
CRT DISPLAY
Tube Type
T-5030-2
Z-axis
Intensity modulation with 10-volt signal,
frequency from approximately 1 kHz to
With normal viewing intensity
450 kHz
POWER SOURCE
AC Voltage Range
50-60 Hz
105-125 V or 210-250 V
400 Hz
112-132 V or 224-264 V
800 Hz 120-140 V or 240-280 V
Maximum Power Input 120 W
±100 W (115 V at 60 Hz)
MECHANICAL ACCESSORIES
Characteristic
Information
Construction
Aluminum alloy chassis and
cabinet
Finish
Anodized panel, blue vinyl-
finish cabinet
Dimensions
21 % " long, 93/4" wide,
l3 '/2" high
A list of accessories that may be used with this Oscillo
scope may be found at the rear of this instruction manual
on the last fold-out page of the Mechancial Parts List Illus
trations.
1 -2
