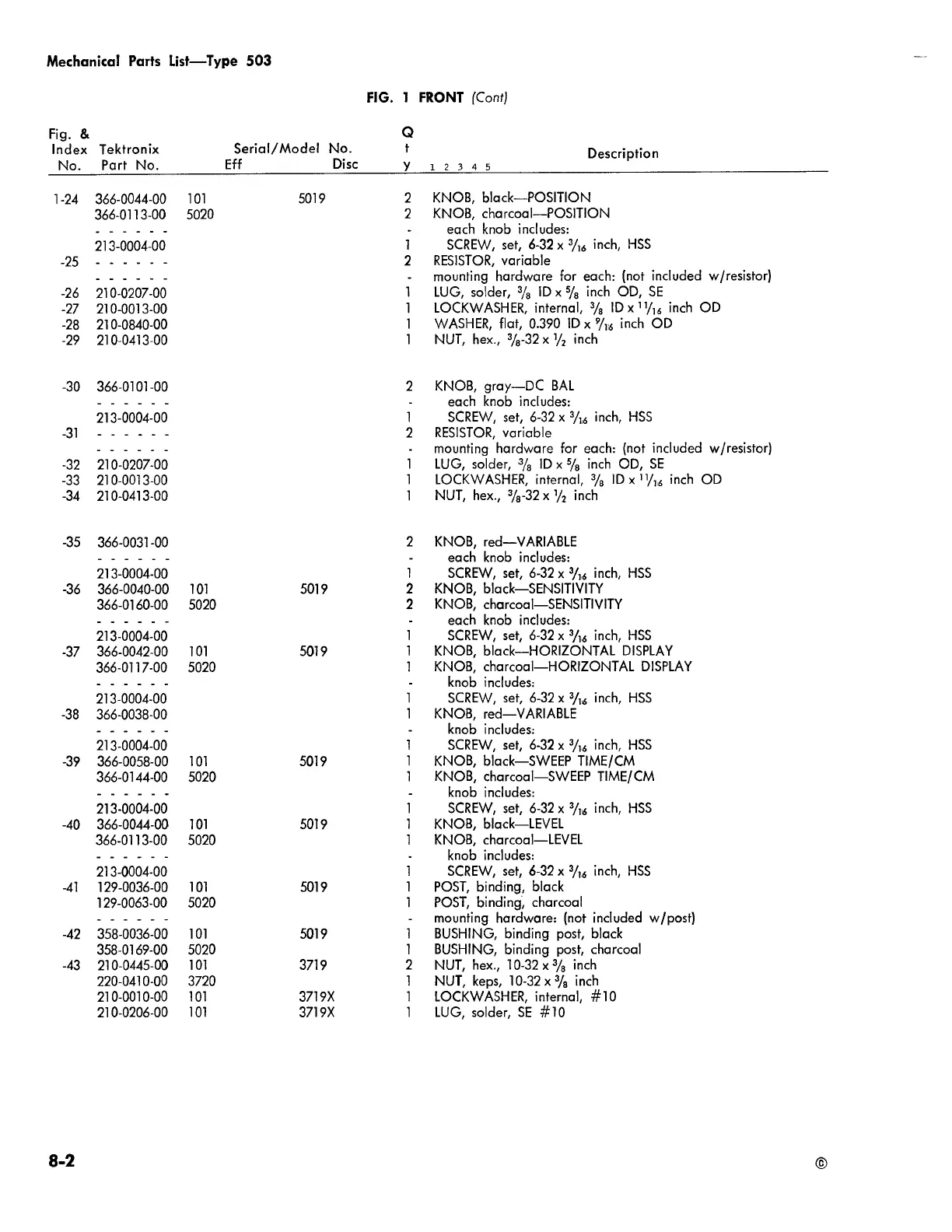

Mechanical Parts List— Type 503
FIG. 1 FRONT (Conti
Fig. & Q
Index
No.
Tektronix
Part No.
Serial/M odel No.
Eff Disc
t
y
1-24 366-0044-00
101
5019
2
366-0113-00
5020
2
213-0004-00
1
-25
2
-26
210-0207-00
1
-27 210-0013-00
1
-28
210-0840-00
1
-29 210-0413-00
1
-30 366-0101-00
2
213-0004-00
1
-31
2
-32 210-0207-00
1
-33
210-0013-00
1
-34 210-0413-00
1
-35 366-0031-00
2
213-0004-00
1
-36 366-0040-00 101 5019
2
366-0160-00 5020
2
213-0004-00
1
-37
366-0042-00
101
5019
1
366-0117-00
5020
1
213-0004-00
1
-38 366-0038-00
1
213-0004-00
1
-39
366-0058-00 101 5019
1
366-0144-00 5020
1
213-0004-00
1
-40
366-0044-00 101 5019
1
366-0113-00 5020
1
213-0004-00
1
-41 129-0036-00 101 5019
1
129-0063-00 5020
1
-42 358-0036-00
101
5019
1
358-0169-00
5020 1
-43 210-0445-00
101
3719
2
220-0410-00
3720
1
210-0010-00
101
3719X 1
210-0206-00
101
3719X 1
Description
1 2 3 4 5 ___________
KNOB, black—POSITION
KNOB, charcoal— POSITION
each knob includes:
SCREW, set, 6-32 x 3/ ]6 inch, HSS
RESISTOR, variable
mounting hardware for each: (not included w/resistor)
LUG, solder, % ID x 5/s inch OD, SE
LOCKWASHER, internal, % IDx'V^ inch OD
WASHER, flat, 0.390 ID x 9/ u inch OD
NUT, hex., 3/8-3 2 xy 2 inch
KNOB, gray—DC BAL
each knob includes:
SCREW, set, 6-32 x 3/ u inch, HSS
RESISTOR, variable
mounting hardware for each: (not included w/resistor)
LUG, solder, 3/8 ID x % inch OD, SE
LOCKWASHER, internal, % ID x 1 yll6 inch OD
NUT, hex., 3/s-32 x y2 inch
KNOB, red—VARIABLE
each knob includes:
SCREW, set, 6-32 x 3/ 1(4 inch, HSS
KNOB, black— SENSITIVITY
KNOB, charcoal—SENSITIVITY
each knob includes:
SCREW, set, 6-32 x 3/ 14 inch, HSS
KNOB, black— HORIZONTAL DISPLAY
KNOB, charcoal—HORIZONTAL DISPLAY
knob includes:
SCREW, set, 6-32 x 3/ u inch, HSS
KNOB, red— VARIABLE
knob includes:
SCREW, set, 6-32 x 3/ i4 inch, HSS
KNOB, black— SWEEP TIME/CM
KNOB, charcoal—SWEEP TIME/CM
knob includes:
SCREW, set, 6-32x 3/„4 inch, HSS
KNOB, black— LEVEL
KNOB, charcoal— LEVEL
knob includes:
SCREW, set, 6-32 x 3/ u inch, HSS
POST, binding, black
POST, binding, charcoal
mounting hardware: (not included w/post)
BUSHING, binding post, black
BUSHING, binding post, charcoal
NUT, hex., 10-32x3/8 inch
NUT, keps, 10-32 x 3/8 inch
LOCKWASHER, internal, #10
LUG, solder, SE #10
