Tektronix AFG3000 Series - AC Flatness Test; Figure 8: AC Flatness Tests

Performance verification
AC Flatness te
st
This test verifies the flatness of a sine wave to 1 kHz sine wave.
1. Connect the arbitrary function generator to the power meter with a power
head as shown in the following figure.

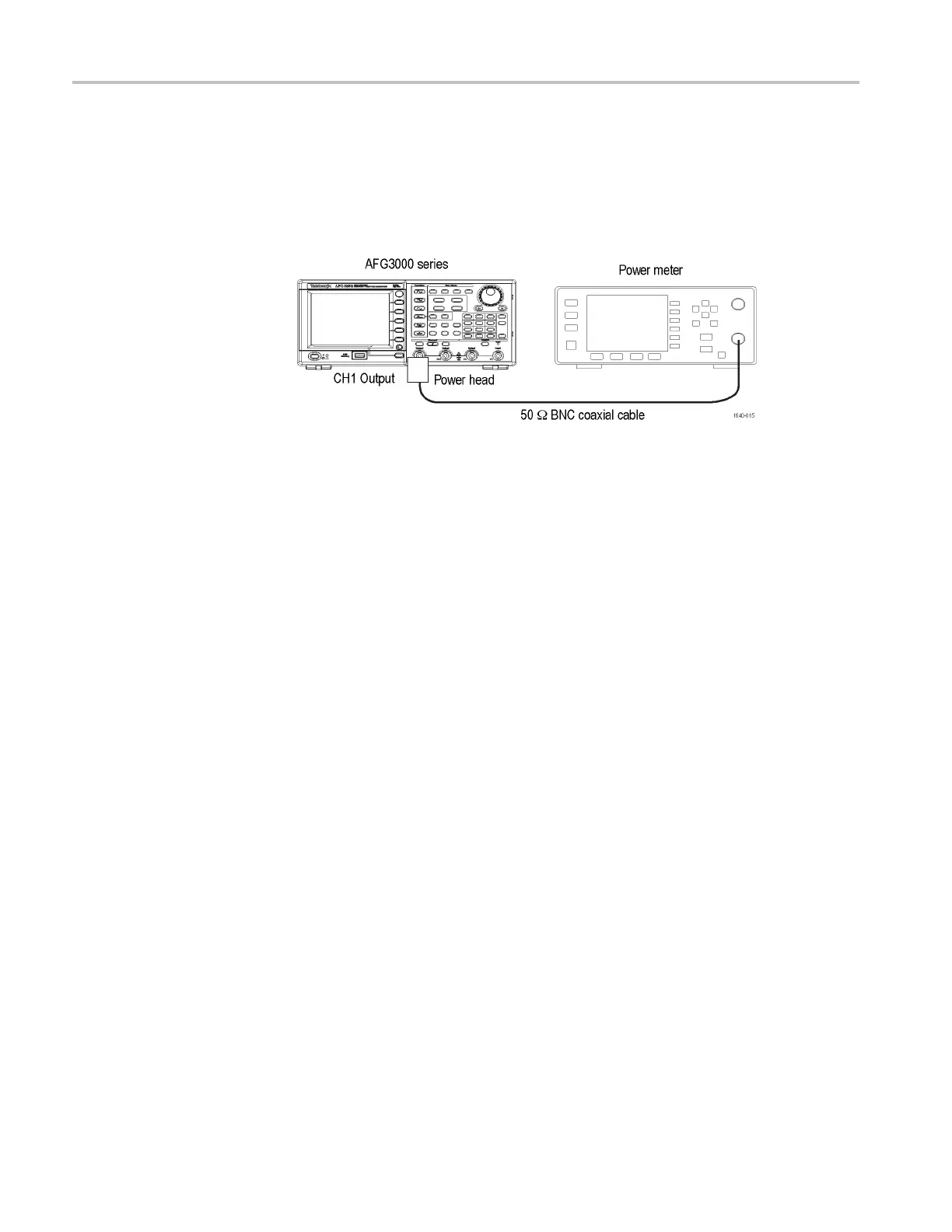

Figure 8 : AC flatness tests
54 AFG3000 Series Specifications and Performance Verification
