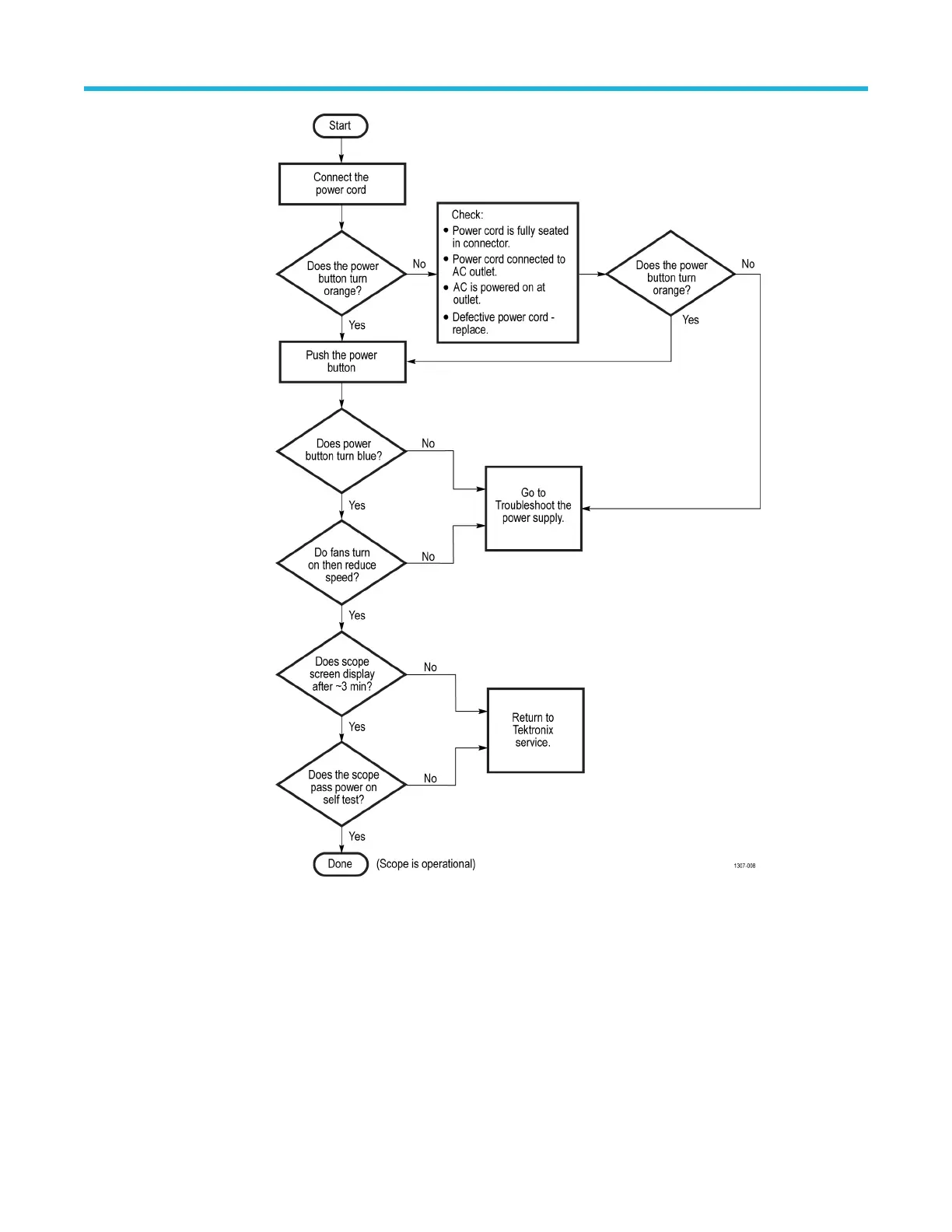

Tektronix B MSO 6 Series - Figure 2: Primary Troubleshooting Tree

Figure 2: Primary troubleshooting tree
Status LEDs. A set of six bi-color LEDs report the power management status of the instrument. These LEDs are located
under the cover on the bottom of the instrument.
Maintenance
6 Series B MSO MSO64B, MSO66B, MSO68B Service 21
