Analyze Wavefor
mData

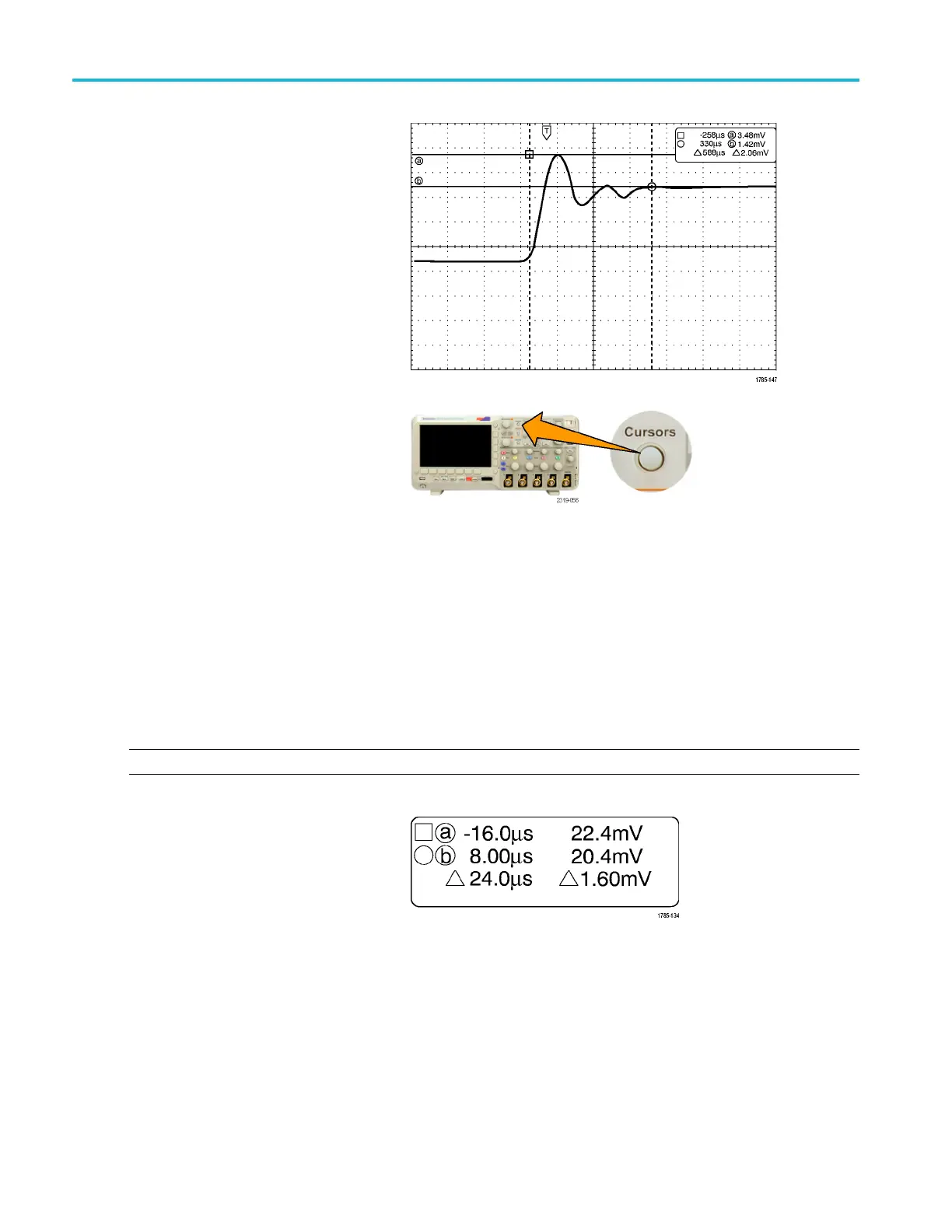

8. View the cursor
and the cursor readout.
You can take timing measurements with
cursors on digital channels, but not
amplitude mea
surements.
9. Push Cursors again. This will turn off
the cursor mode. The screen will no
longer display the cursors and the cursor
readout.
Using Cursor Readouts
Cursor readouts supply textual and numeric information relating to the current cursor positions. The oscilloscope always
shows the readouts when the cursors are turned on.
Readouts appear in the upper right corner of the graticule. If Zoom is on, the readout appears in the upper right corner of
the zoom window.
When a bus is selected, the readout shows the decoded bus data in the format you have s elected, hexadecimal, binary, or
ASCII (RS-232 only). When a digital channel is selected, the cursors show the values of all displayed digital channels.
NOTE. When buses are s elected, the data value at that point is displayed in the cursor readout.
Readout:
The readouts indicate the difference
between the cursor positions.
a Readout:
Indicates that the value is controlled by
multipurpose knob a.
b Readout:
Indicates that the value is controlled by
multipurpose knob b.
98 MSO2000B and DPO2000B Series Oscilloscopes User Manual
