Front-Panel Menus and Controls

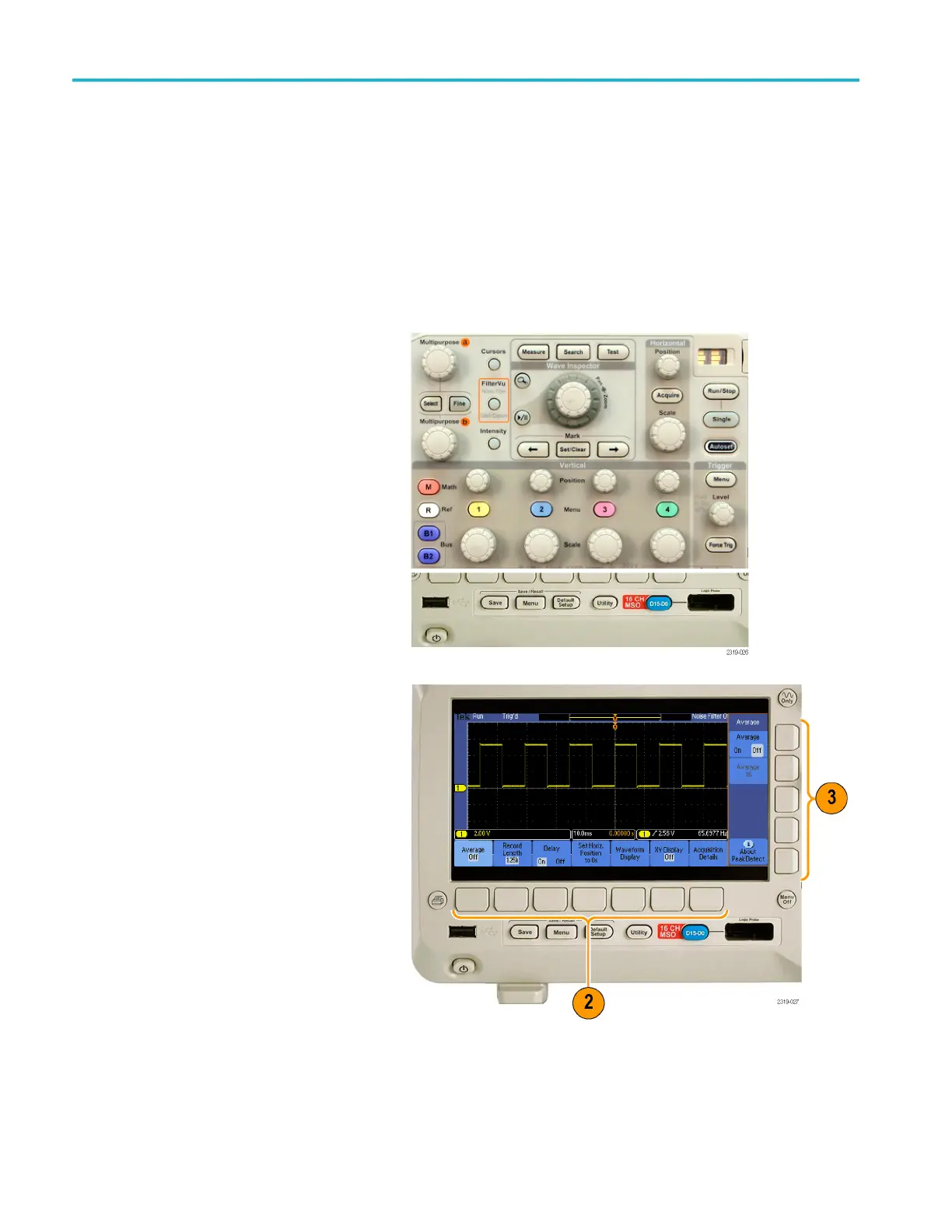

The front panel has buttons and controls for the functions that you use most often. Use the menu buttons to access
more specialized functions.
Using the Men u System
To use the menu system:
1. Push a front-panel menu button to
display the menu that you want to use.
2. Push a lower-bezel button to select a
menu item. If a pop-out menu appears,
turn multipurpose knob a to select
the desired choice. If a pop-up menu
appears, press the button again to select
the desired choice.
26 MSO2000B and DPO2000B Series Oscilloscopes User Manual
