Acquire the Signal

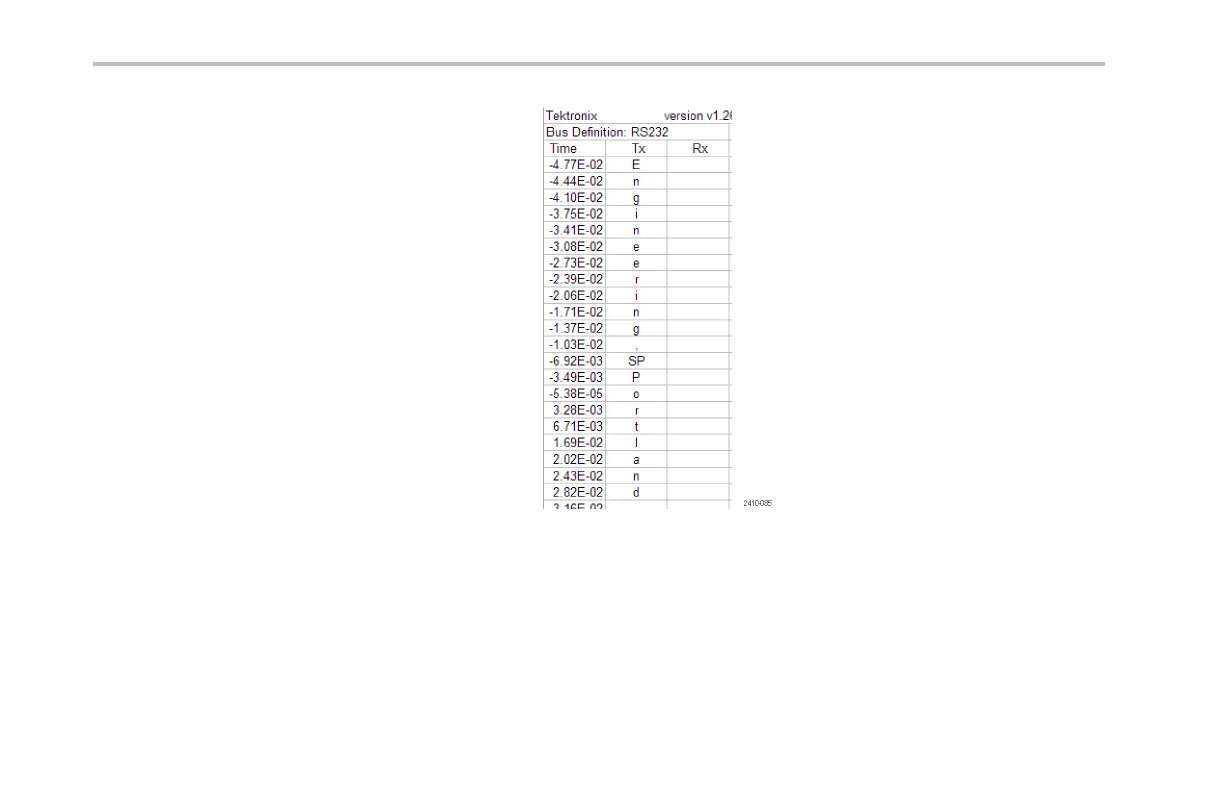

Saved event table example:
I
2
C, SPI, CAN, and LIN event tables display
one line for each packet.
RS-232 event tables display one line for each
7- or 8-bit byte whe n Packe ts are set to Off.
RS-232 event tables display one line for each
packet when Packets are set to On.
12. Push B1 or B2 and turn multipurpose knob a to
move the b us display up or down on the screen.
To trigger on serial bus cond itions, refer to Triggering on Buses. (See page 121, Triggering on Buses .)
104 DPO3000 Series Oscilloscopes User Ma nual
