Analyze Waveform Data

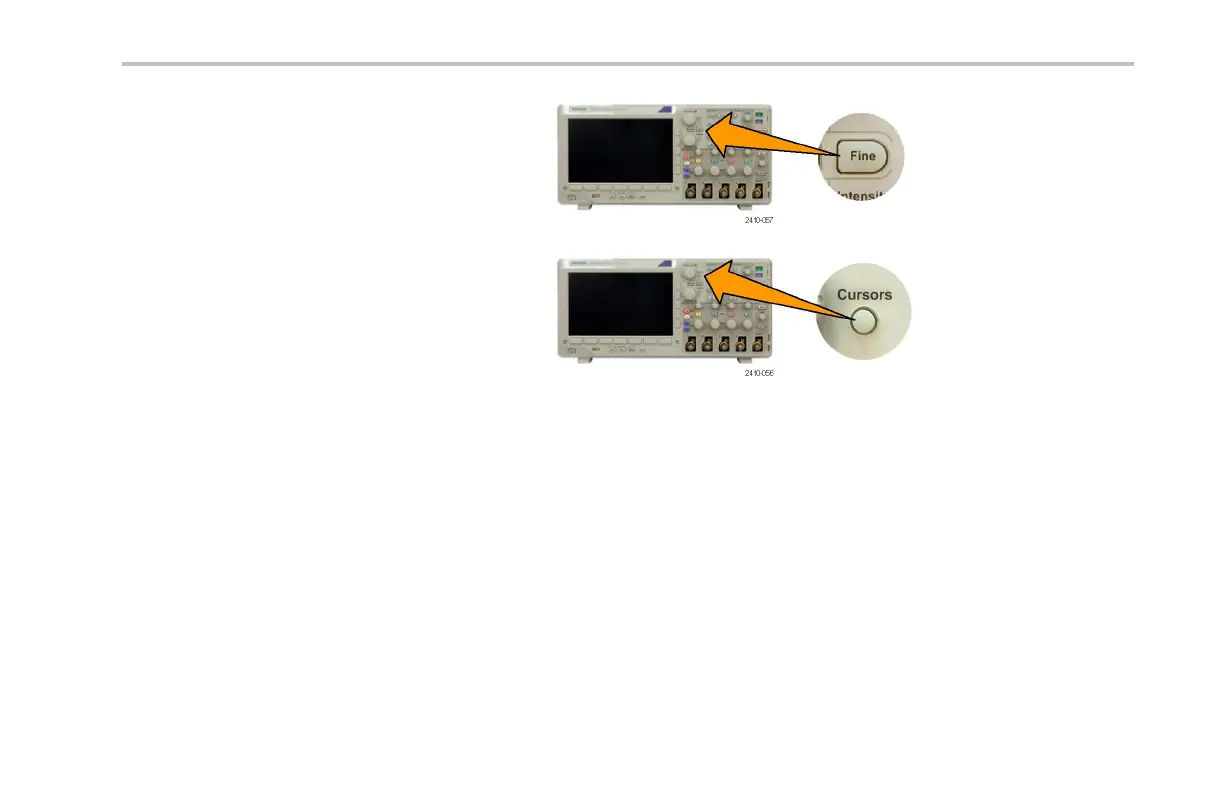

4. Push Fine t o toggle between a coarse and
a fine adjustmen t fo r multipurpose knobs
a and b.
Pushing Fine also changes the sensitivity
of other knobs as well.
5. Push Cursors again.
This will put the cursors into screen mode.
Two horizontal bars and two vertical bars
span the graticule.
DPO3000 Series Oscilloscopes User Manua l 173
