Tektronix DPO3000 Series User Manual

Analyze Waveform Data

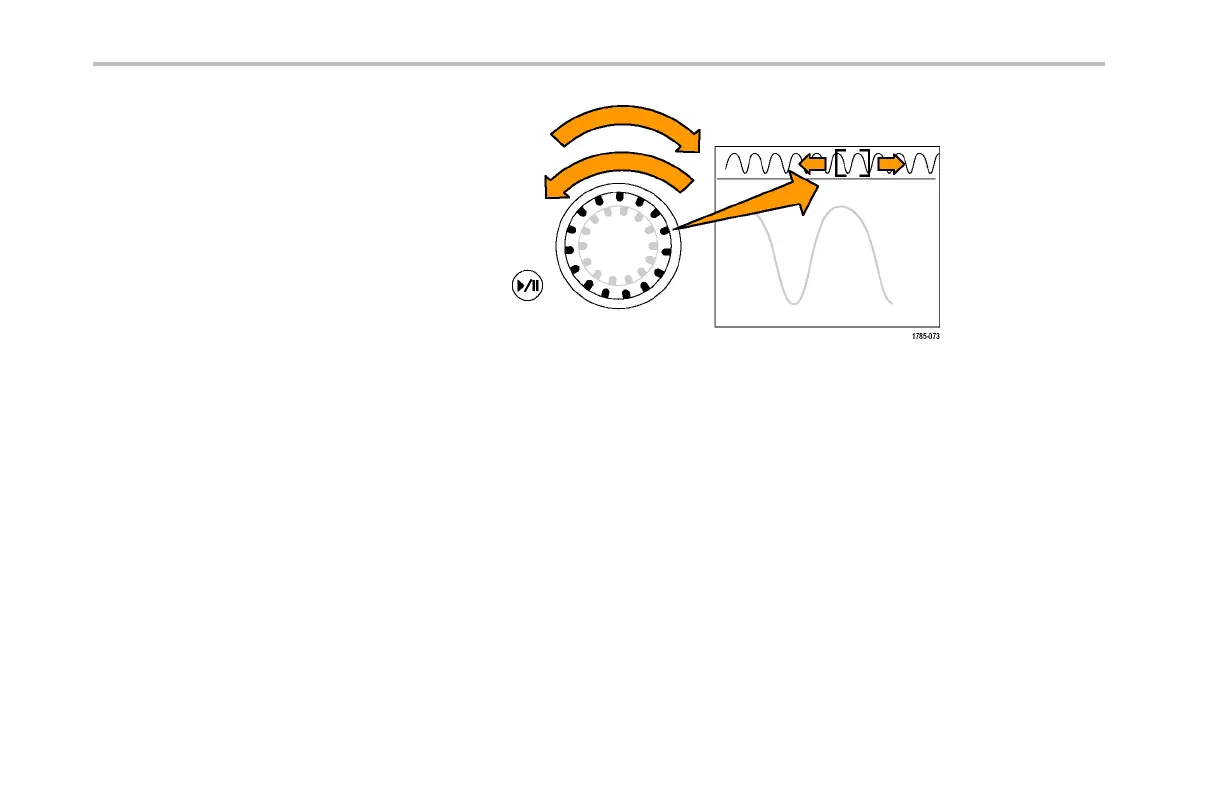

1. Rotate the pan (outer) knob of the
pan-zoom controls to pa n the waveform.
Turn the knob clockwise to pan
forward. Turn it counterclockwise to pan
backwards. The further you turn the
knob, the faster the zoom window pans.
Playing and Pausing a Waveform
Use the play-pause feature to automatically pan through a wa ve form record. To use it:
192 DPO3000 Series Oscilloscopes User Ma nual
