Analyze Waveform Data

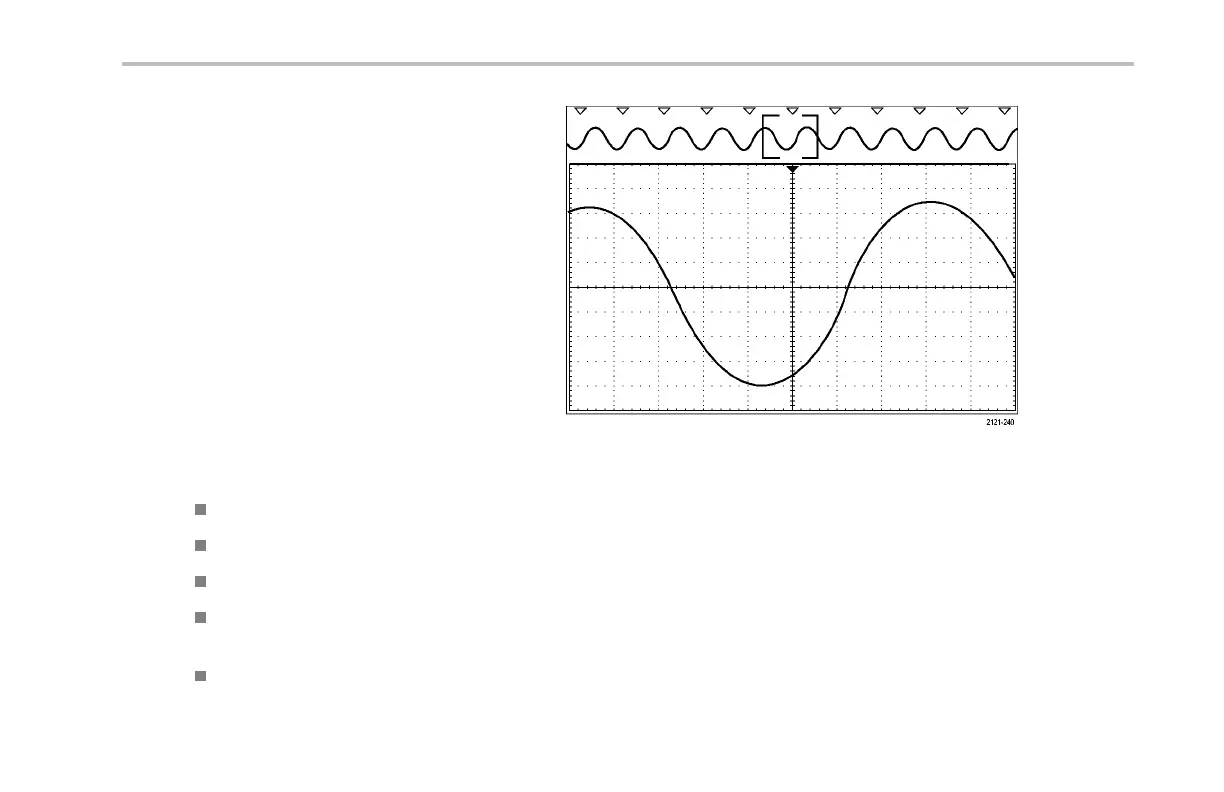

4. On th e screen, hollow triangles show the
location of automatic marks and solid triangles
show the custom (user-defined) locations.
These a ppear on both no rmal and zoomed
waveform views.
5. You can quickly investigate your waveform by
moving from search mark to search mark with
the next ( →) and previous (←) arrow buttons.
No o ther adjustments are needed.
Quick Tips.
You can copy trigger settings to search for other locations in your acquired w aveform that meet the trigger conditions.
You can also copy search settings to your trigger.
Custom (User) marks are saved with the waveform when the waveform is saved and w hen the setup is saved.
Automatic search marks are not saved with the wavefo rm when the waveform is saved. However, you can easily recapture
them by reusing the search function.
Thesearchcriteriaaresavedinthesavedsetup.
DPO3000 Series Oscilloscopes User Manua l 197
