Application E xamp les

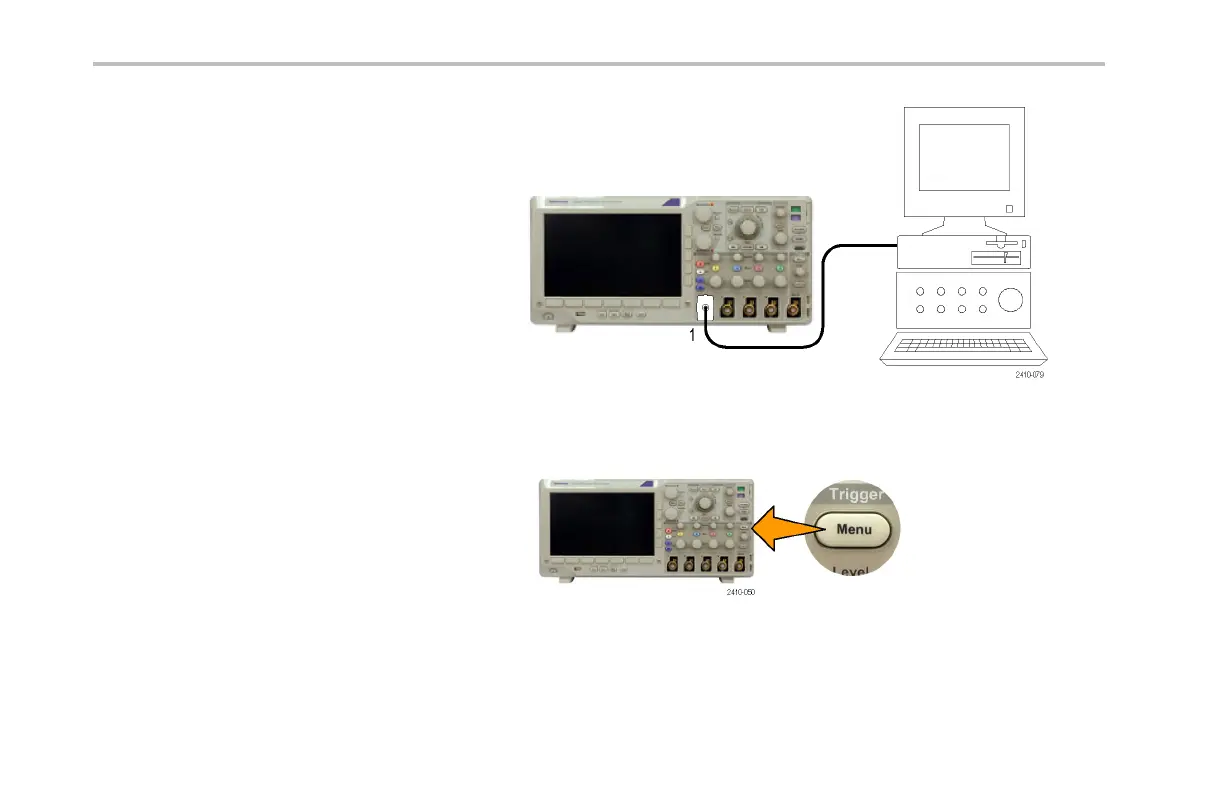

In this example, you are testing the video circuit
in a piece of medical equipment and need to
display the video output signal. The video
output is a n NTSC standard signal. Use the
video signal to obtain a stable display.
To trigger on th e video fields:
1. Push Trigger Menu.
250 DPO3000 Series Oscilloscopes User Ma nual
