Application E xamp les

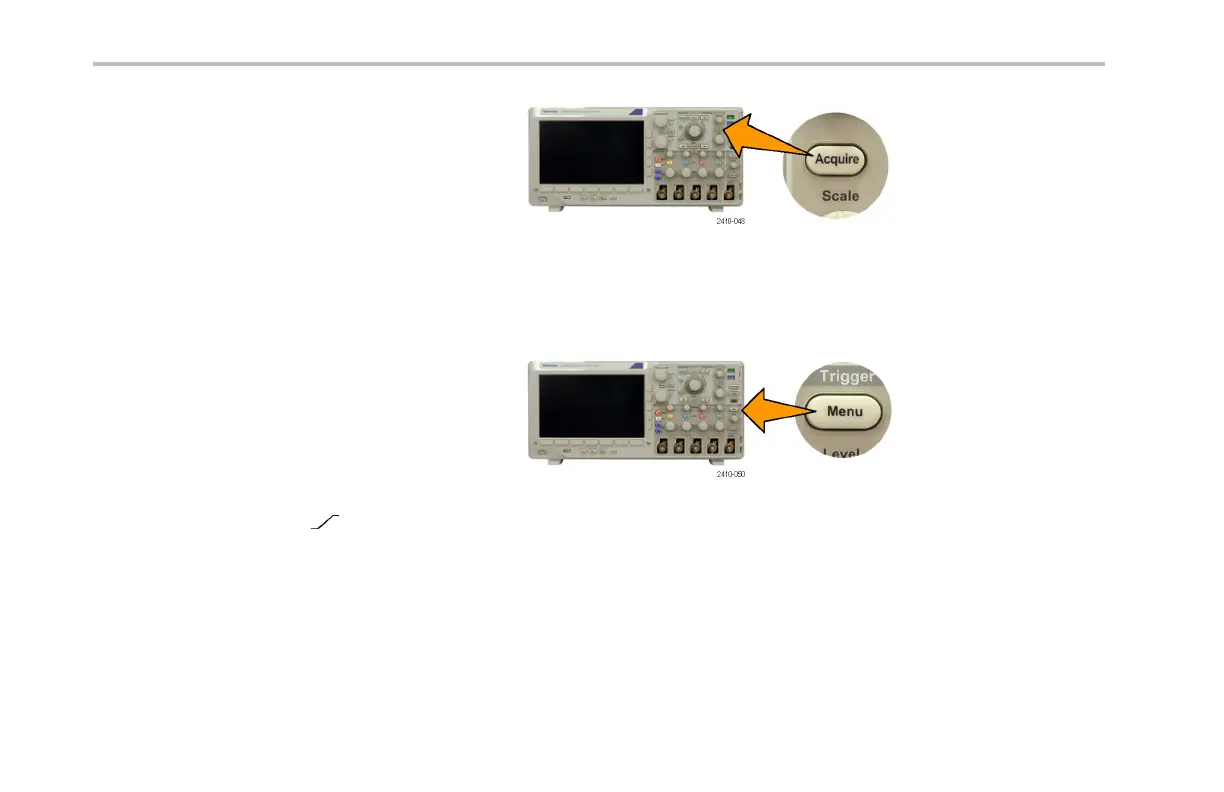

2. Push Acquire.
3. Push Mode.
4. Select Sample.
5. Push Trigger Menu.
6. Push Slope and .
7. Turn the Trigger Level knob to adjust the
trigger level to a voltage midway be tween
the open and closed voltages of the replay.
256 DPO3000 Series Oscilloscopes User Ma nual
