Get Acquainted with the Instrument

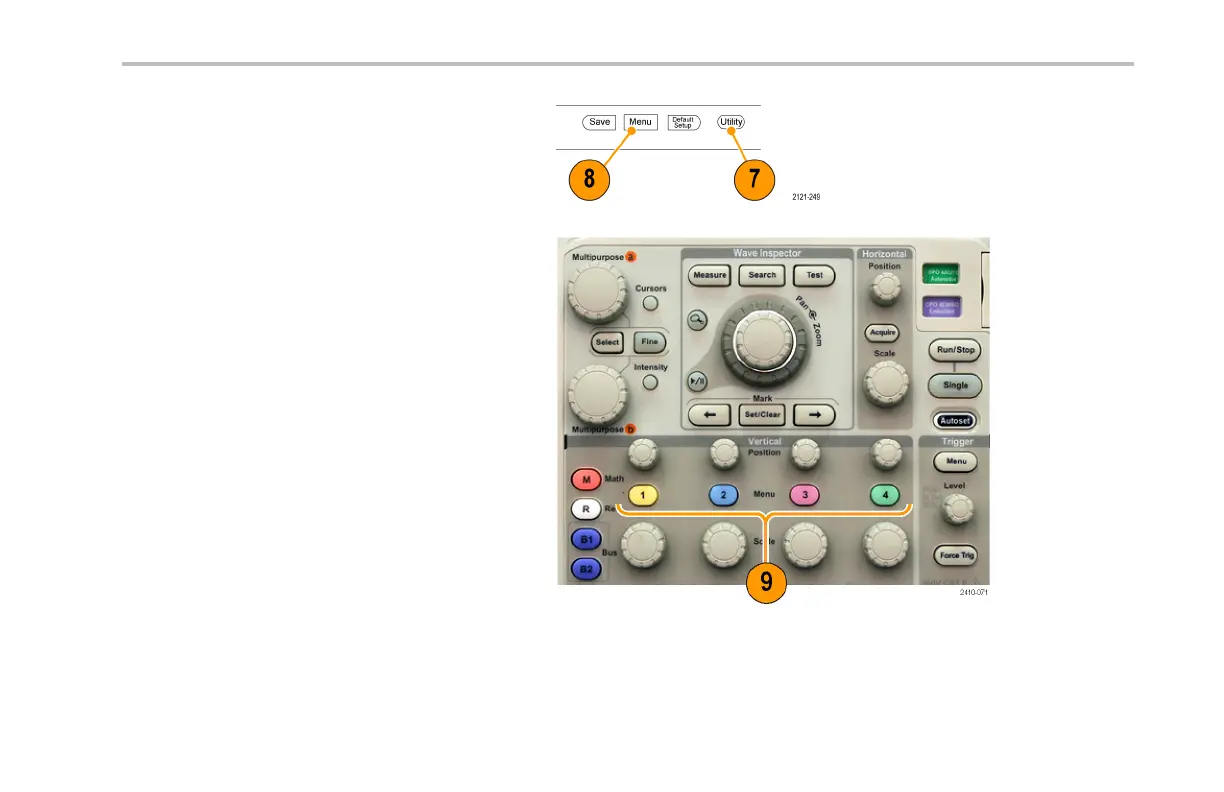

7. Utility. Push to activate the system utility
functions, such a s selecting a language or
setting the date/time.
8. Save / Recall Me nu. Pushtosaveand
recall setups, waveforms, and screen
images to internal memo ry or a USB flash
drive.
9. Channel 1,2,3,or4Menu.Pushtoset
vertical para meters for input w aveforms
and to display or remove the corresponding
waveform from the display.
DPO3000 Series Oscilloscopes User Manua l 55
