Get Acquainted with the Instrument
6. Turn the lowe r multipurpose knob b,
when activated, to move a cursor or set
a numerica l parameter value for a menu
item. Push Fine to make adjustments
more slowly.

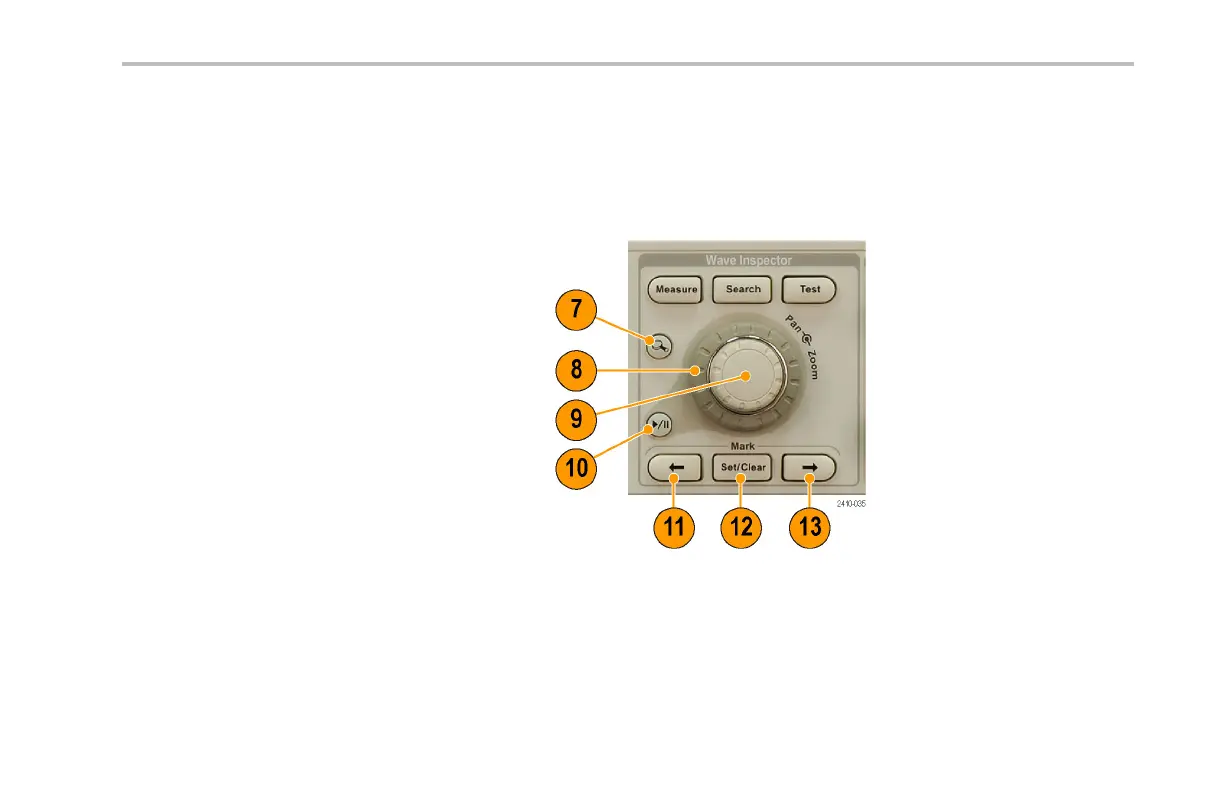

7. Zoom button. Push to activate zoom
mode.
8. Pan (outer knob). Turn to scroll the zoom
window thro ugh the acquired waveform.
9. Zoom (inner knob). Turn to control the
zoom factor. Turning it clockwise zooms in
further. Turning it counterclockwise zooms
out.
10. Play-pau se button. Push to start or stop
the automatic p anning of a waveform.
Control the speed and direction with the
pan knob.
DPO3000 Series Oscilloscopes User Manua l 59
