Application Examples
Measuring Specific Events. Next you want to see the pulses in the incoming digital signal, but the pulse widths vary so it is
hard to establish a stable trigger. To look at a snapsho t o f the digital signal, do this step:

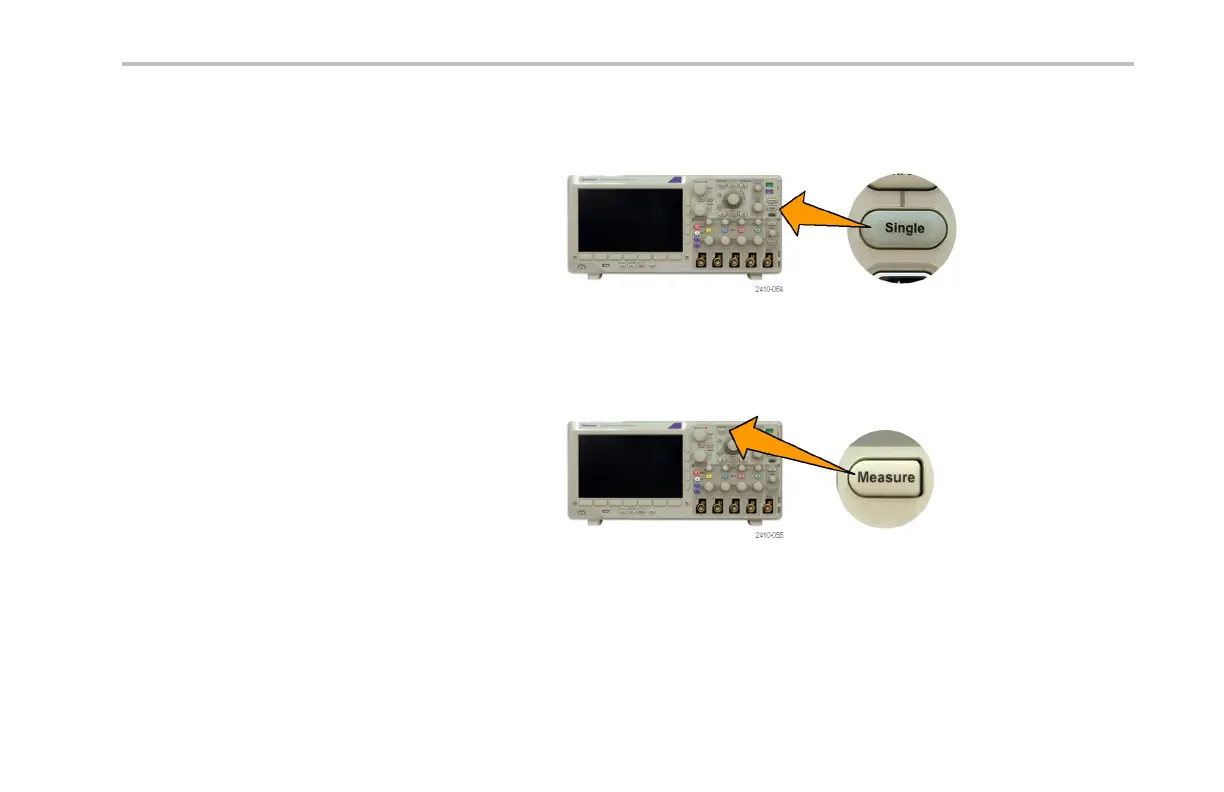

1. Push Single to capture a sing le acquisition.
This assumes that the oscilloscope will trigger
with the current settings.
Now you want to measure the width of each
displayed pulse. You can use measurement
gating to select a specific pulse to m easure.
To measure t he second pulse:
2. Push Measure.
DPO3000 Series Oscilloscopes User Manua l 237
