Application E xamp les

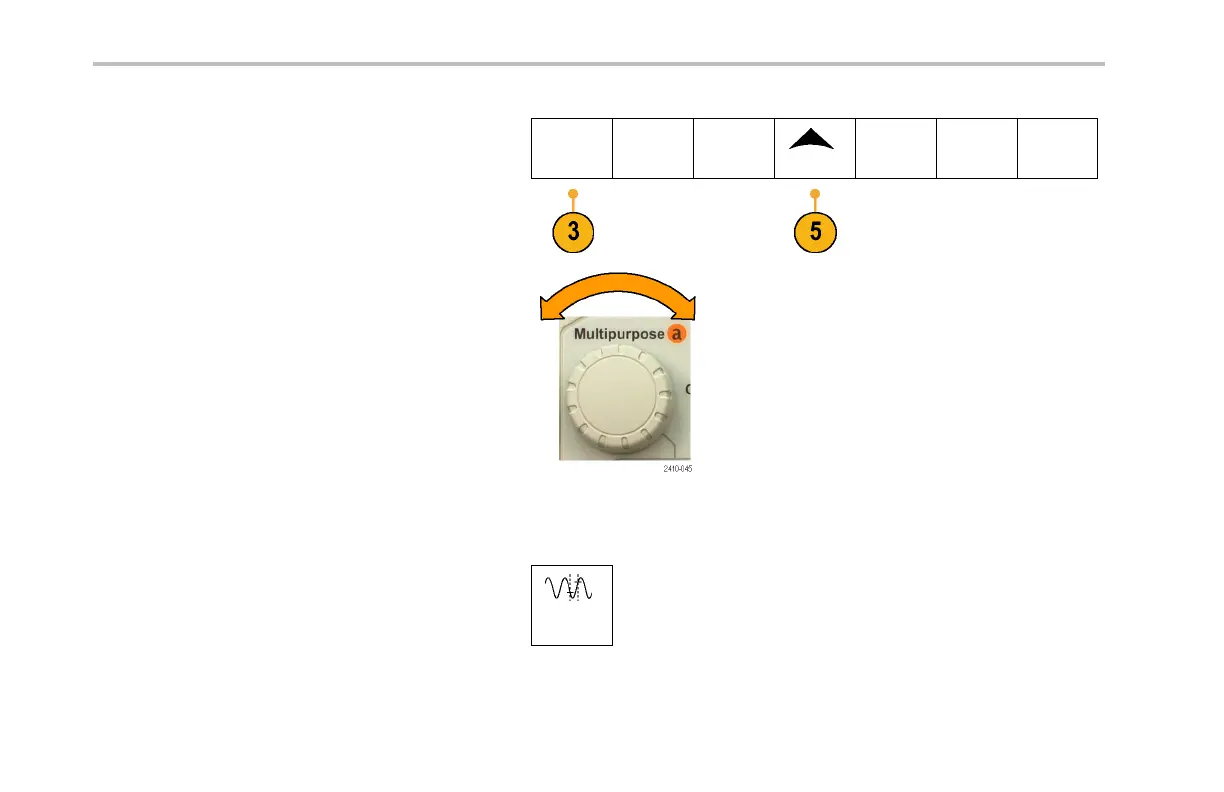

3. Push Add Measurement.
Add Mea-
surement
Remove
Measure-
ment
Indicators
More
Bring
Cursors On
Screen
Congure
Cursors
4. Turn multipurpose knob a to select the
Positive Pulse Width m easurement. If
needed, press Source from the side menu and
turn multipurpo se knob b to select the channel
from which you want to measure. Push OK
Add Mea suremen t from the side m enu.
5. Push More repeatedly until you select Gating
from the popup menu.
6. Select Between Cursors from the side-be zel
menu to choose m easure m ent gating using
cursors.
Between
Cursors
238 DPO3000 Series Oscilloscopes User Ma nual
