Application Examples
Looking at a Noisy Signal
The signal appears noisy. You suspect that no ise is causing problems in your circuit. To better analyze the noise:

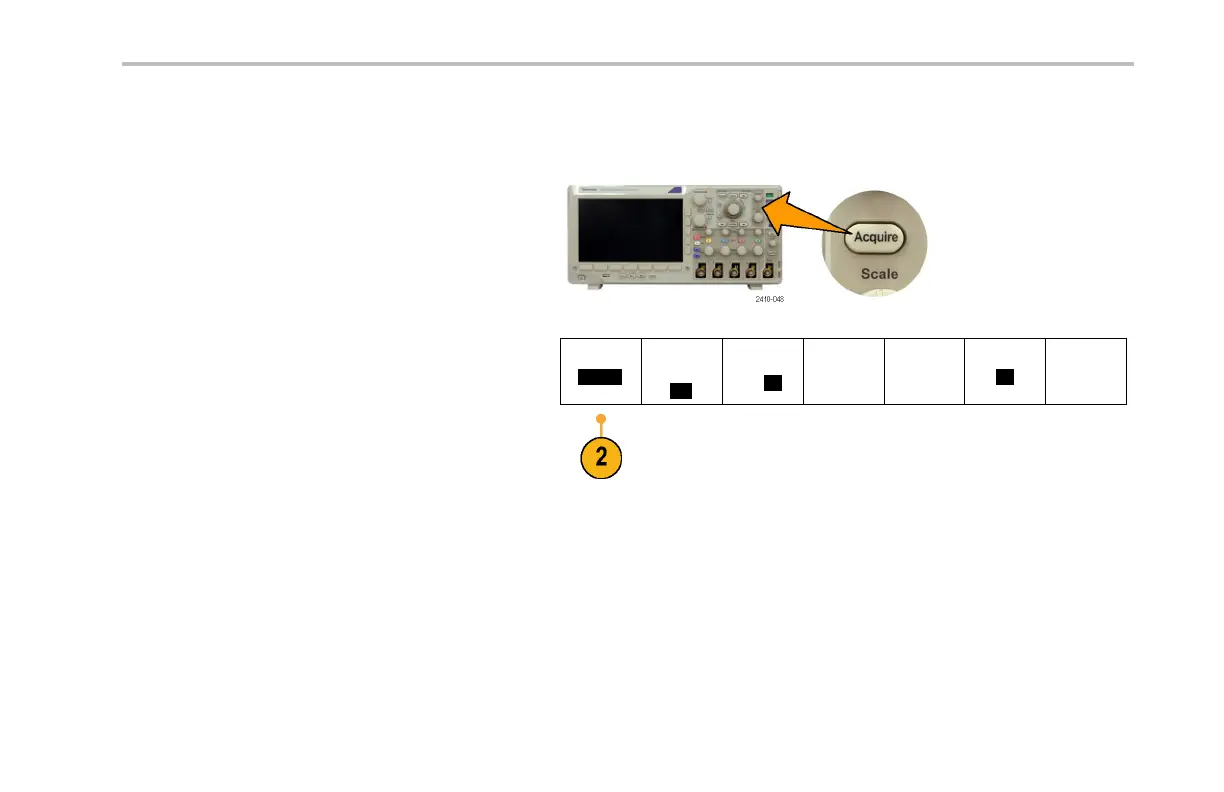

1. Push Acquire.
2. Push Mode o n the lower-bezel menu.
Mode
Sample
Record
Length
10k
Delay
On |
Off
Set Horiz.
Position to
10%
Waveform
Display
XY Display
Off
DPO3000 Series Oscilloscopes User Manua l 241
