Application E xamp les

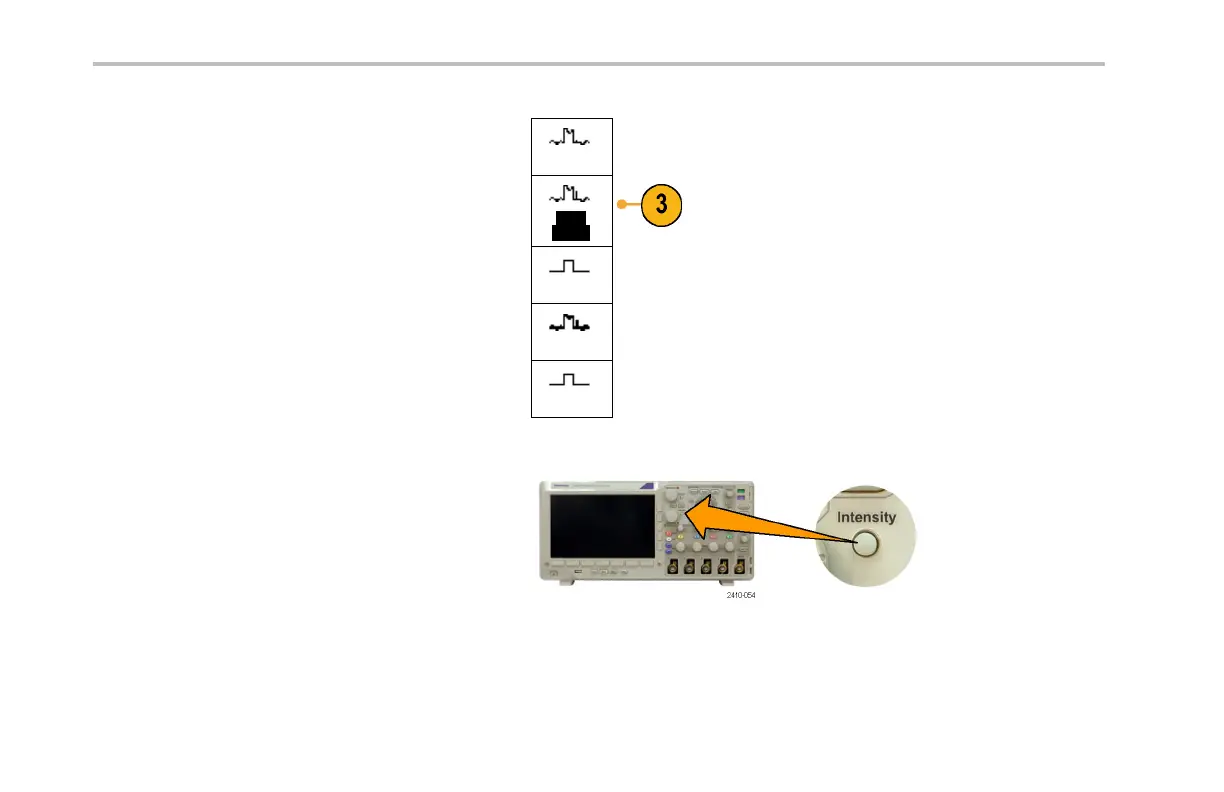

3. Push Peak Detect on the side-bezel menu.
Sample
Peak
Detect
Hi Res
Envelope
Average
4. Push Intensity and turn multipurpose knob a
to see the noise more easily.
242 DPO3000 Series Oscilloscopes User Ma nual
