Application E xamp les

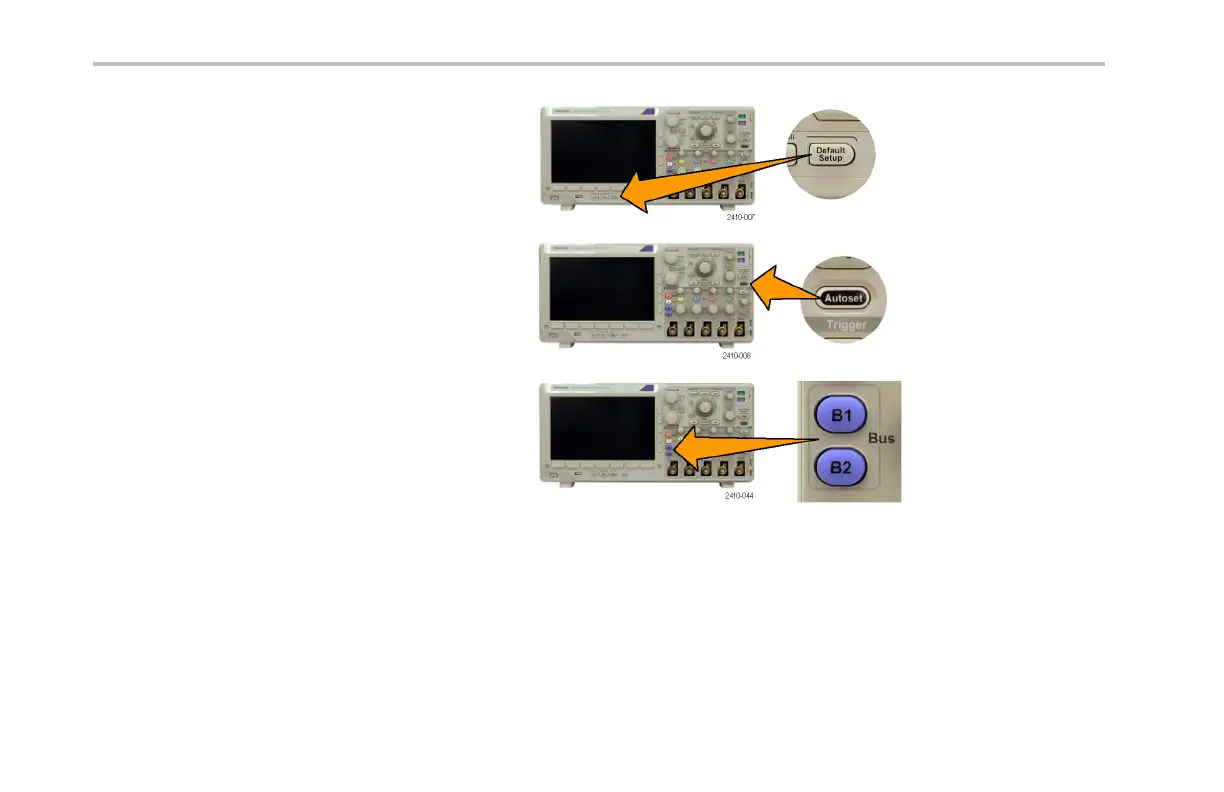

2. Push Default Setup.
3. Push Autoset.
4. Push B1.
5. Push the Bus B1 lower-bezel button, use
multipurpose knob a to select RS-232,and
enter the parameters of the bus in the resulting
screen menus.
6. Push the Bus Display lower-bezel button,
push the Bus and Waveforms side-bezel
button, and push the ASCII side-bezel.
270 DPO3000 Series Oscilloscopes User Ma nual
