Application Examples
7. Turn the Horizontal Scale knob to adjust the
timebase.
As you increase the time per division, you will
see m ore data appear in the Bus display.

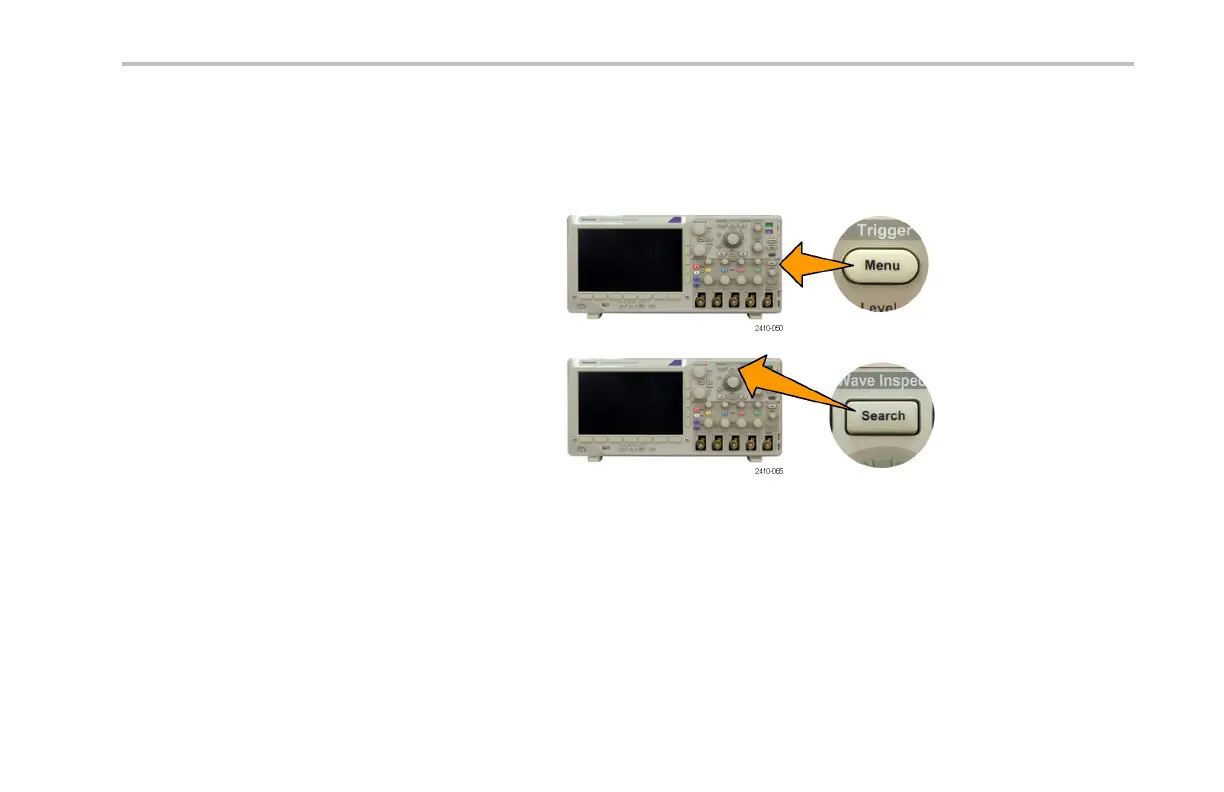

8. Push Trigger Menu. Select the Bus trigger
type. Define what type of condition to trigger
on, such as the Tx Start Bit.
9. Push Search, push the Search lower-bezel
button, and select On in the side-bezel menu.
10. Push Search Type. Use multipurpose knob a
to select Bus.PushSearch For and select
the de sired search, such as for the Tx Start Bit.
DPO3000 Series Oscilloscopes User Manua l 271
