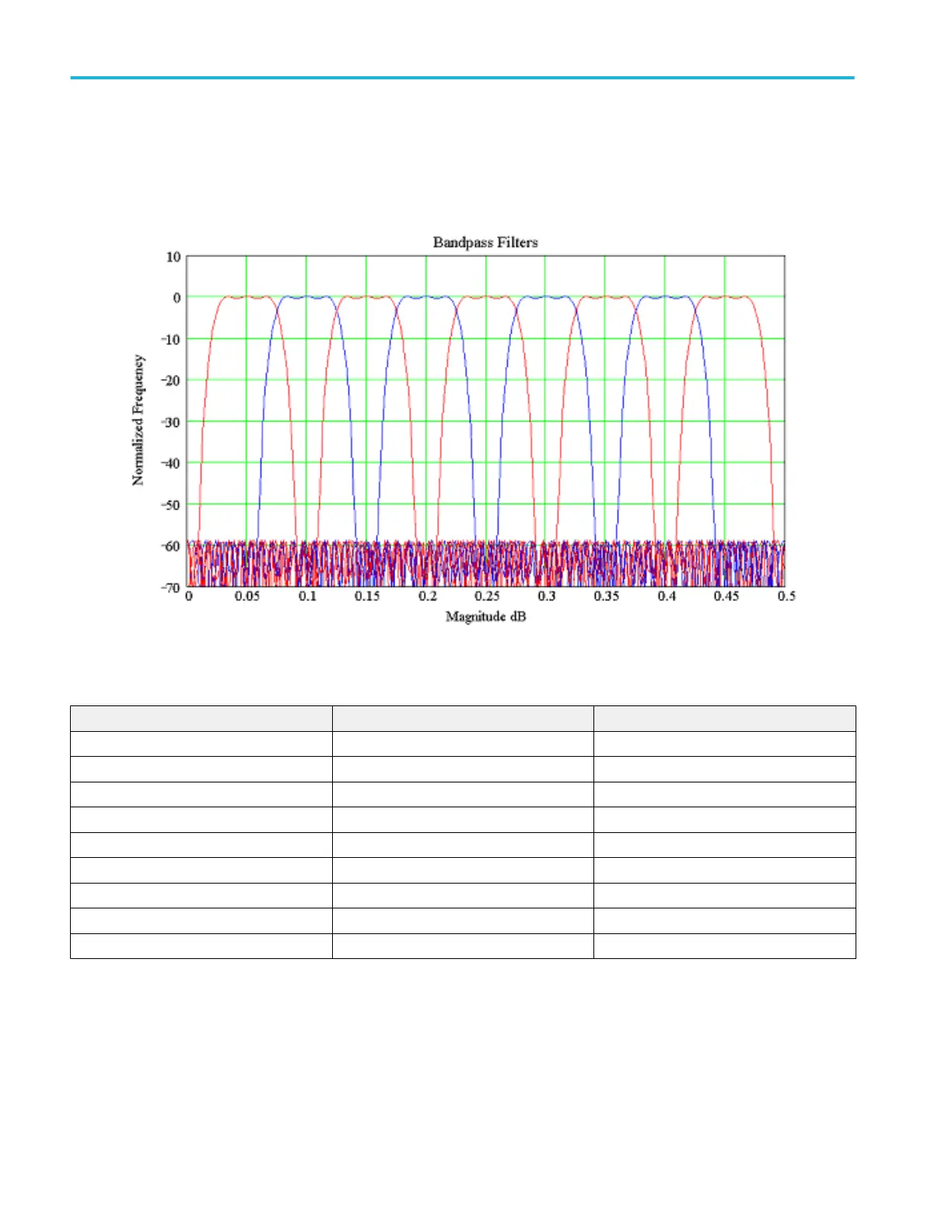

Band pass filters. Each filter has a bandwidth of 0.05 times the sample rate. They will operate at any sample rate. The available

center frequencies are 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45. Stop band attenuation is approximately -60 dB and

pass band ripple is around 1dB.

The following table lists the available normalized band pass filters:

File name Normalized bandwidth Normalized center frequency

bandpass_0.05bw_0.05center.flt 0.05 0.05

bandpass_0.05bw_0.10center.flt 0.05 0.10

bandpass_0.05bw_0.15center.flt 0.05 0.15

bandpass_0.05bw_0.20center.flt 0.05 0.20

bandpass_0.05bw_0.25center.flt 0.05 0.25

bandpass_0.05bw_0.30center.flt 0.05 0.30

bandpass_0.05bw_0.35center.flt 0.05 0.35

bandpass_0.05bw_0.40center.flt 0.05 0.40

bandpass_0.05bw_0.45center.flt 0.05 0.45

Oscilloscope reference

788 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
