Replaceable Parts (DSA/DPO70000B Series)

Table 5-12: Rep

laceable parts – Acquisition assembly (DSA/DPO70000B Series)

Fig. &

index

number

Tektronix

part

number

Serial no.

effective

Serial no.

discont’d Qty Name & description

5-14

ACQUISITION

-1 214-3903-00 8

SCREW, JACK; 4-40 X 0.312 LONG, 0.188 H HEX HEAD STAND OFF,

4-40 INT THD, X 0.312 THD EXT 4-40

-2

-------

ACQUISITION MODULE, RETURN TO TEKTRONIX FOR SERVICE

-3 211-0752-00 10

SCREW,MACHINE; 6-32 X 0.75, PNH, TORX

-4 211-1050-00

SCREW, MACHINE; 6-32 X 0.312 L, PNH, STL CAD PLT, T15

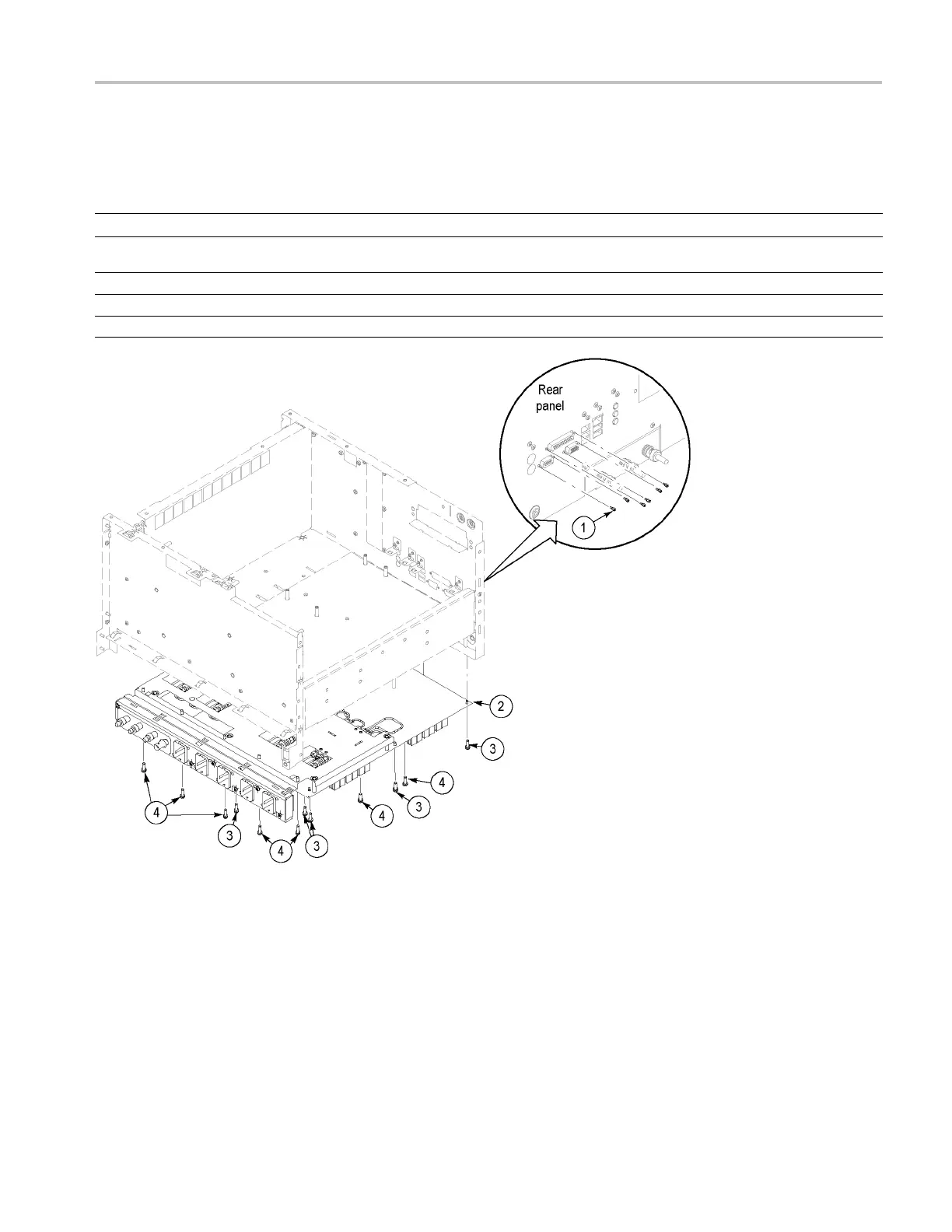

Figure 5-14: Acquisition assembly (DSA/DPO70000B Series)

MSO70000/C, DSA70000B/C, DPO70000B/C, D PO7000, MSO5000, DPO5000 Series 5–27
