Analyzing wavef
orms
Analyzing wav
eforms
Your instrument features cursors, automatic measurements, statistics, histograms, math, spectral analysis, and advanced
pass/fail tests to help you to analyze waveforms. This section contains concepts and procedures for analyzing waveforms.
Detailed information is available in the online help.
Taking automatic measurements

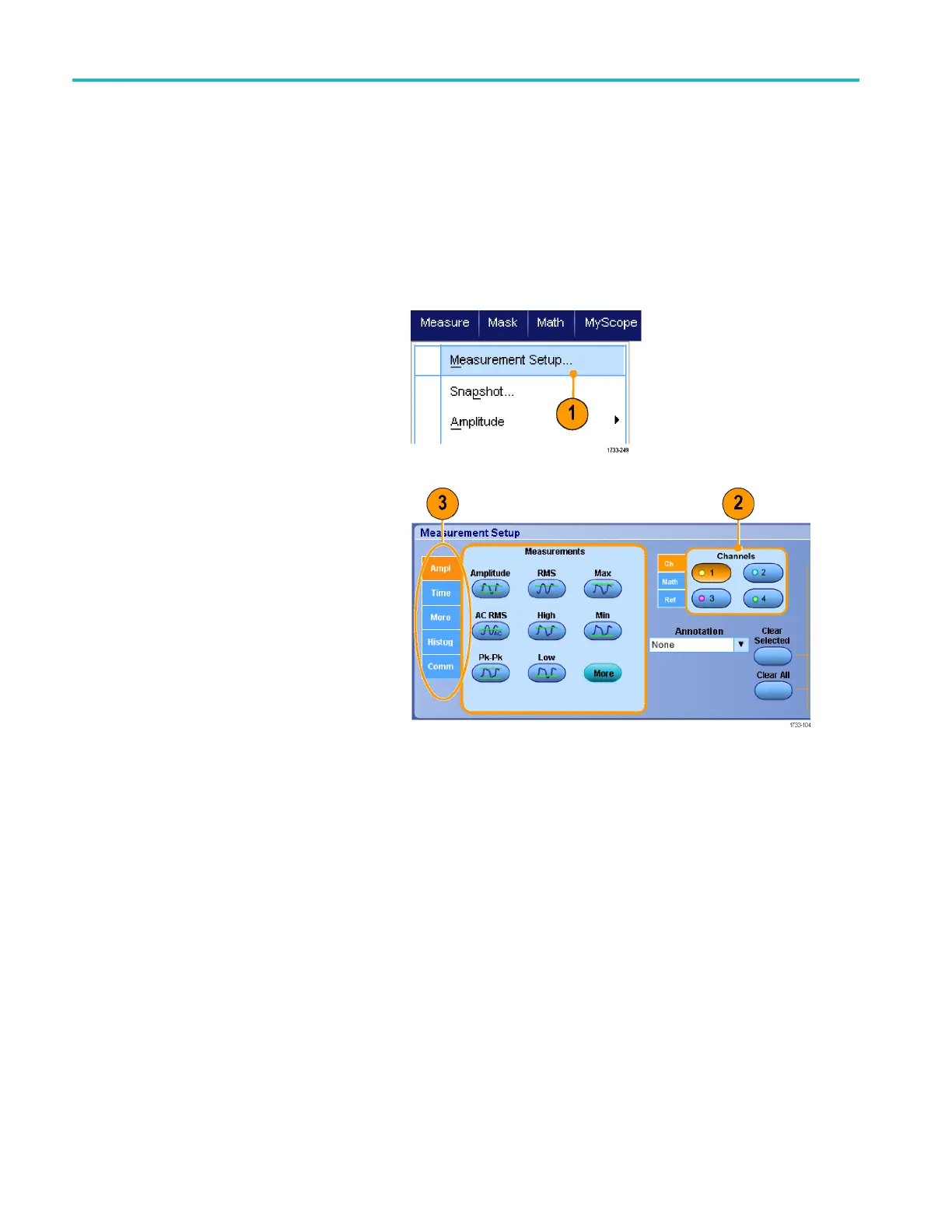

1. Select Measure > Measurement
Setup....
2. Select the channel, math or reference
waveform that you w ant to measure.
3. Using the tabs, select m easurements in
five different categories.
