Saving and recal

ling information

Saving and rec

alling information

This section contains procedures for saving and recalling screen captures and setups, saving measurements, using the

clipboard, and printing on your instrument. Detailed information is available in the online help.

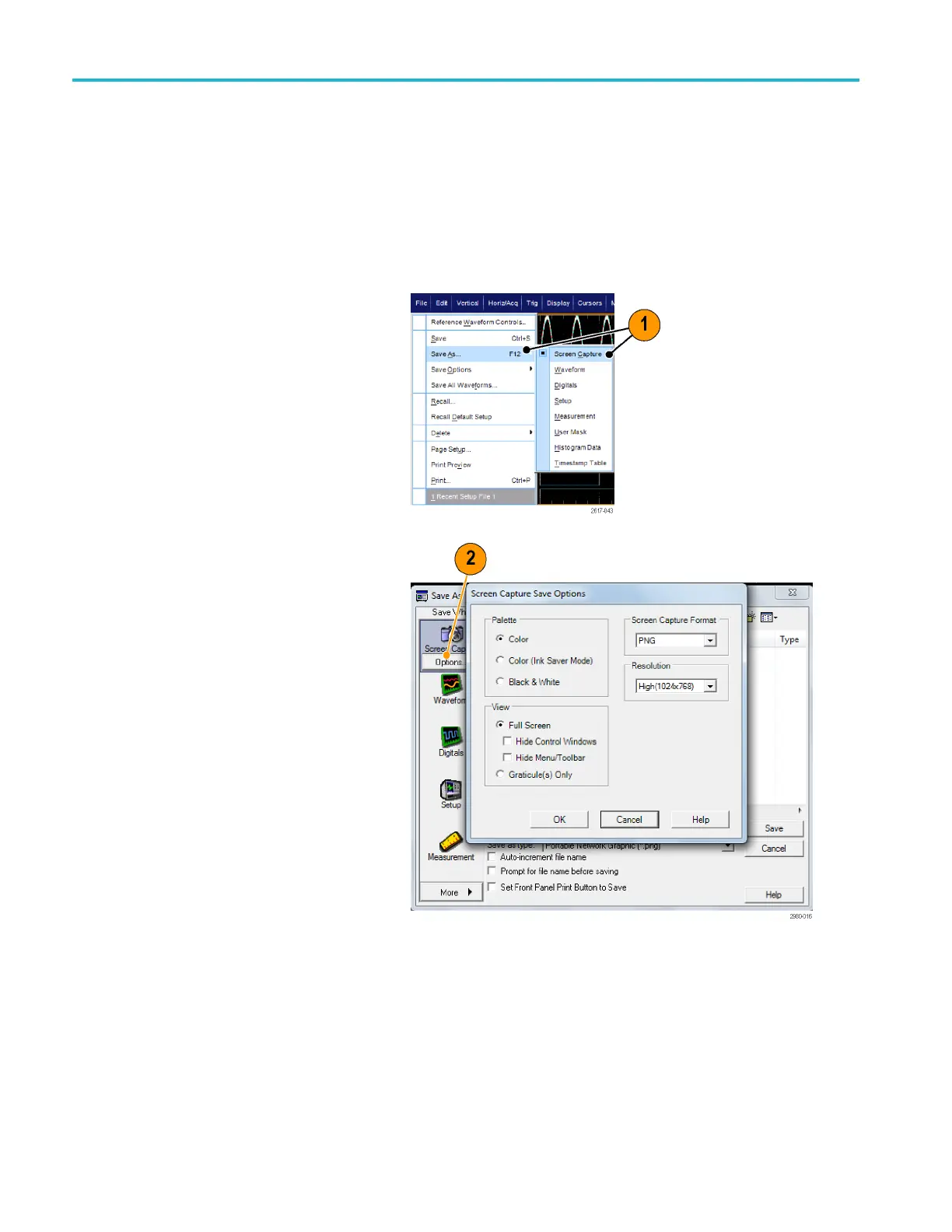

Saving screen captures

1. Select File > Save or Save As > Screen

Capture....

2. Click Opt

ions... to set up the Palette,

View, Image, or Screen Capture Format

options; otherwise, skip to step 3.

152 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
