Acquisition

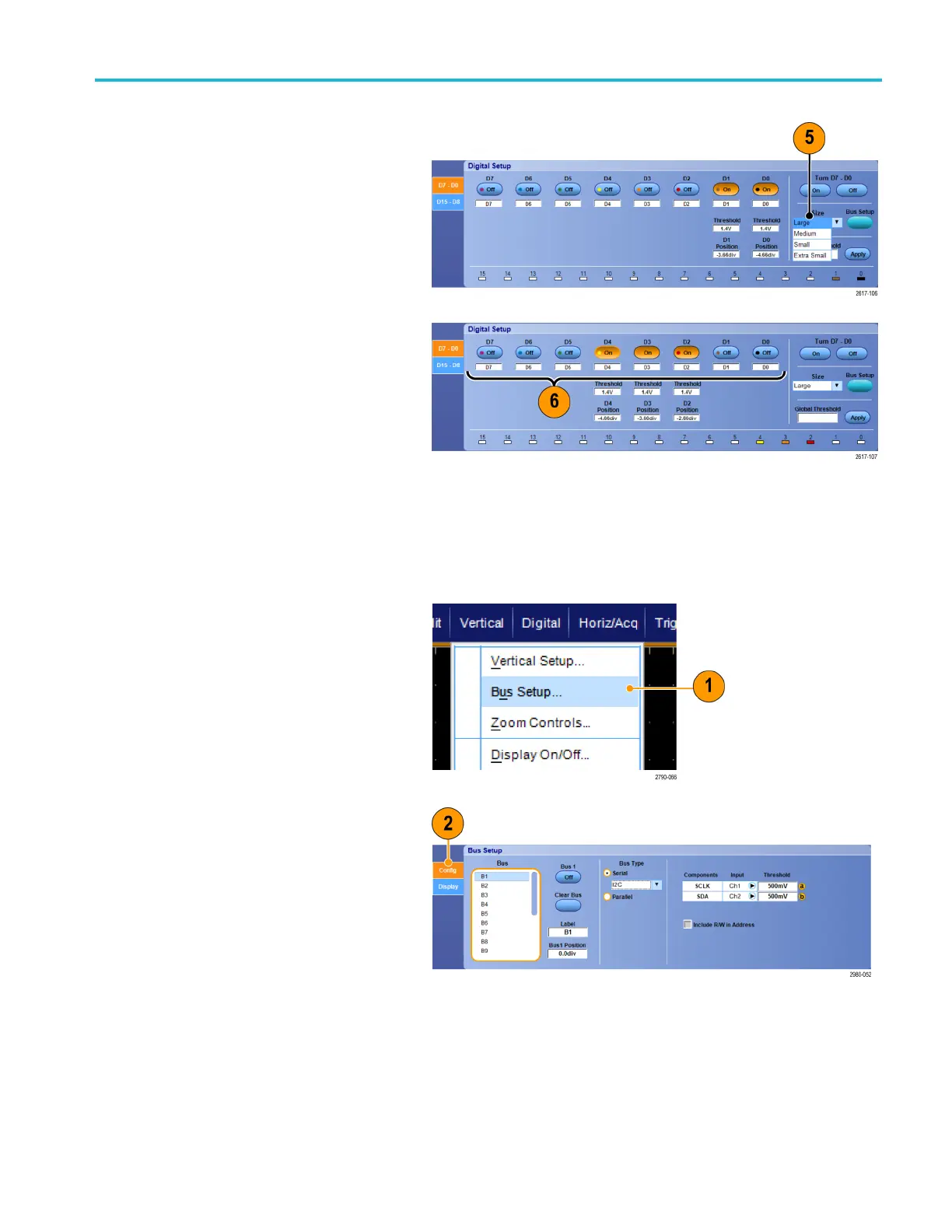

5. To change the displayed vertical size of
all digital channels, click Size and select
the display si
ze from the list.
6. To change a digital channel label, click
the label an
d enter a new label using the
keyboard.
Settingupabus
You can set up serial (optional) and parallel buses.
1. Select Vertical > Bus Setup or, on some
instrum
ents, Digital > Bu s Setup.
2. Select the Co nfig tab.
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 53
