Analyzing wavef
orms

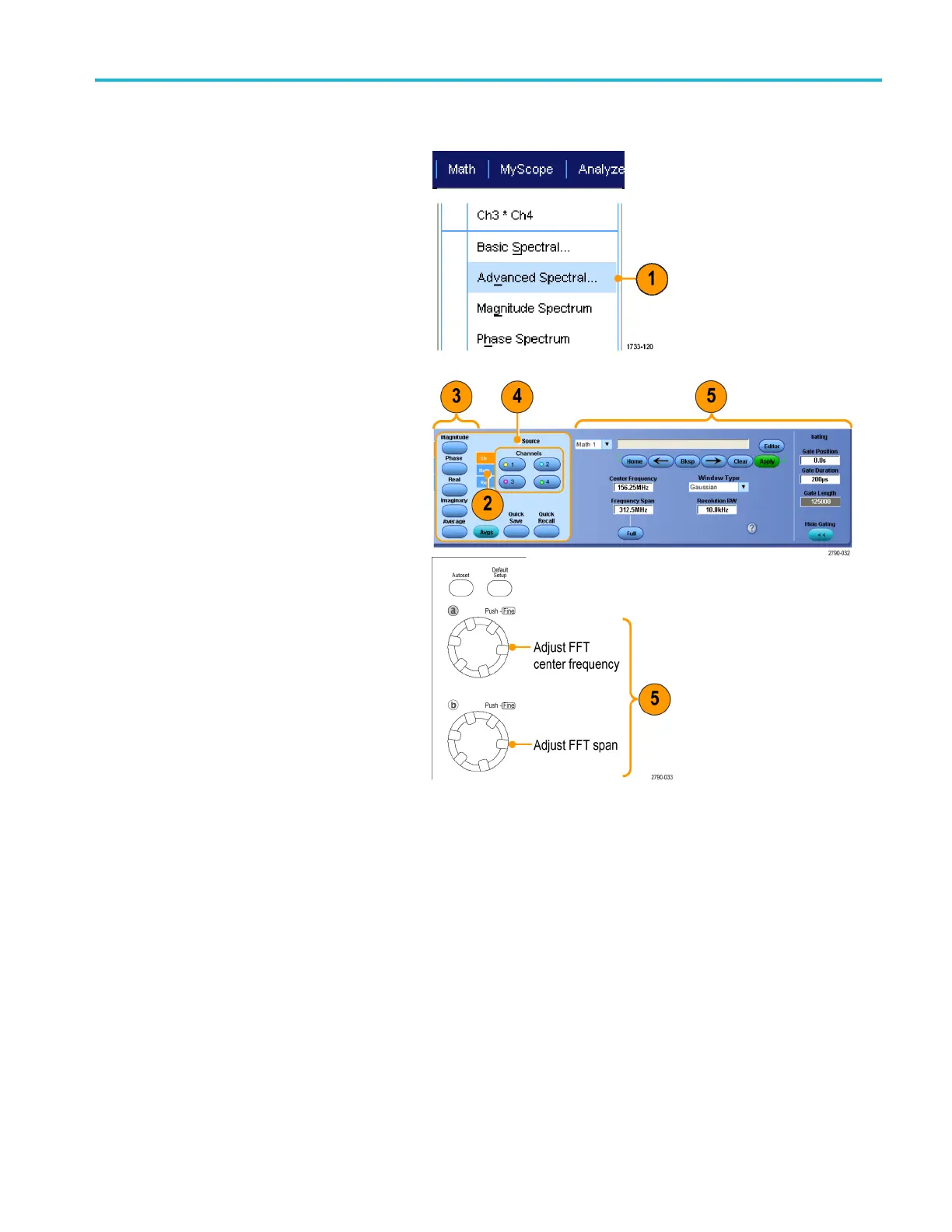

Use the following procedure to build an advanced spectral math expression.
1. Select Math > Advanced Spectral....
2. Select the math waveform that you want
to define.
3. Click the type of spectral waveform
that you want to create. To rede fine a
waveform, clic k Clear.
4. Select the source waveform.
5. Adjust the spectral waveform, u sing the
controls in the Spectral Setup control
window and use the multipurpose knobs.
MSO/DP
O70000DX, MSO/DPO70000C, and DPO7000 C Series
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 133
