MyScope

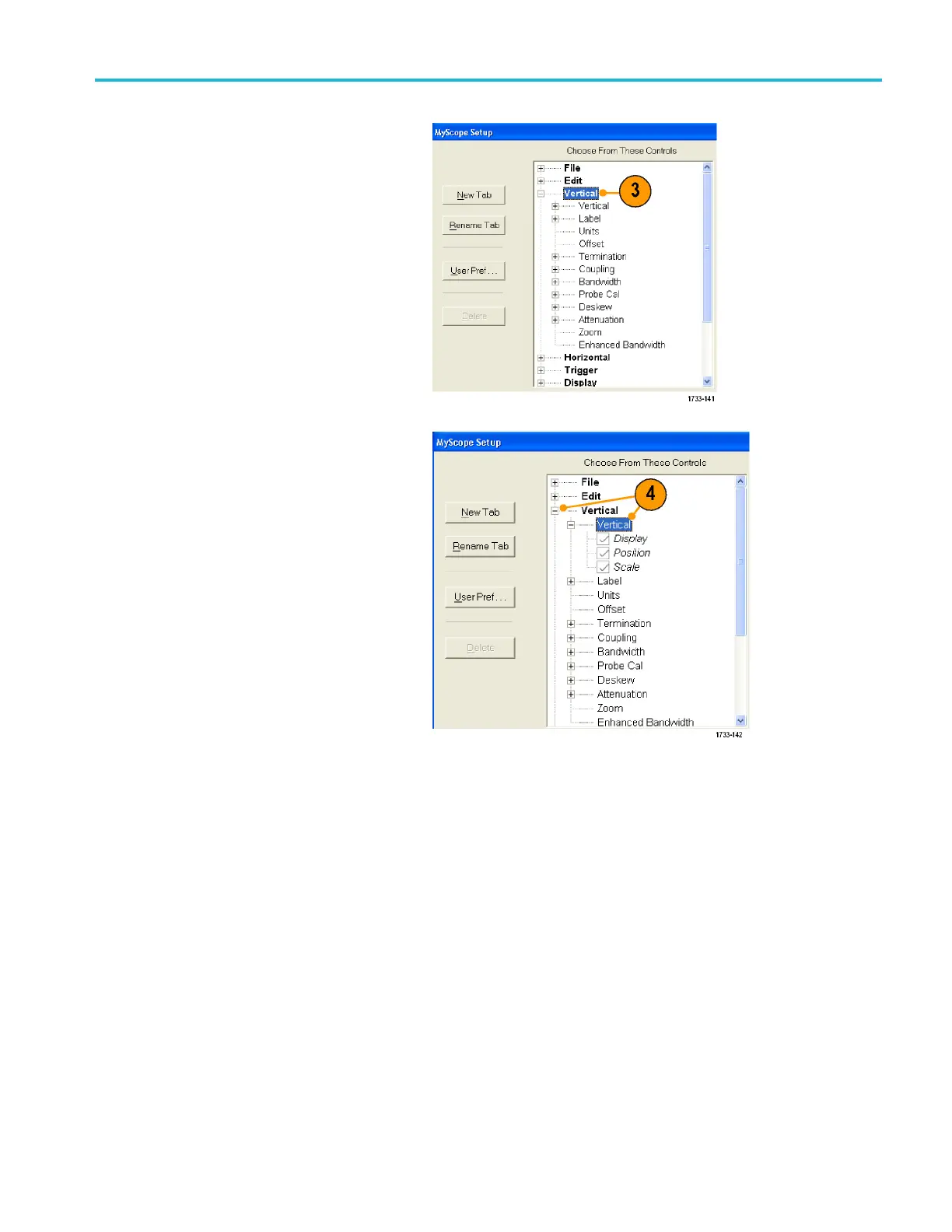

3. Click a control to preview it.

4. Double-click the control or click the + to

expand the control list. (If there is no +,

then the co

ntrol cannot be customized

further.)

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 147
