Application exa

mples

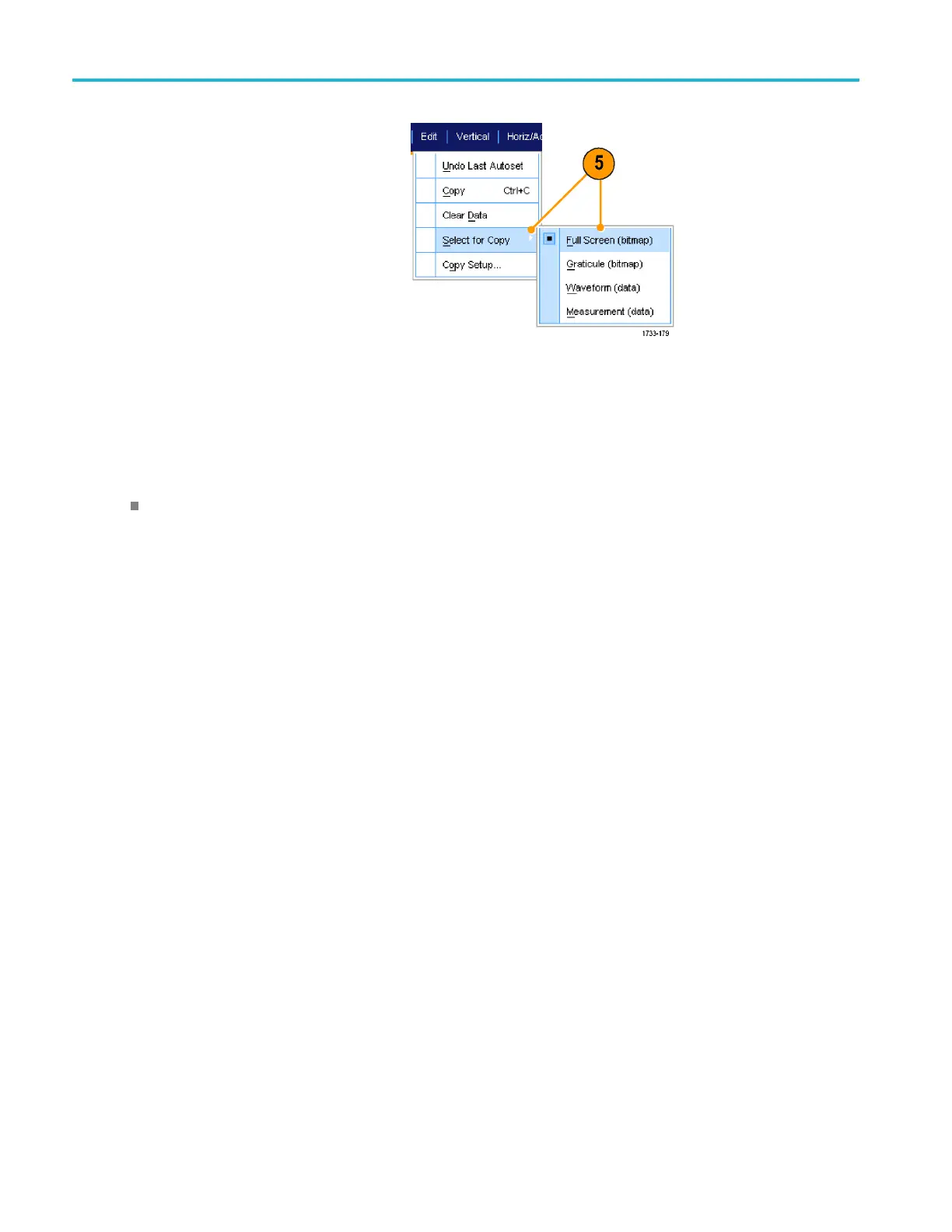

5. Select Edit > Select for Copy > Full

Screen (bitmap).

6. Press Ctrl+C.

7. Click in the Word document wherever you want to place the screen shot, and then press Ctrl+V.

Quick tips

The instrument comes with a variety of OpenChoice software tools designed for maximum efﬁciency and connectivity to

the rest of your design environment.

172 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual

Table of Contents7
