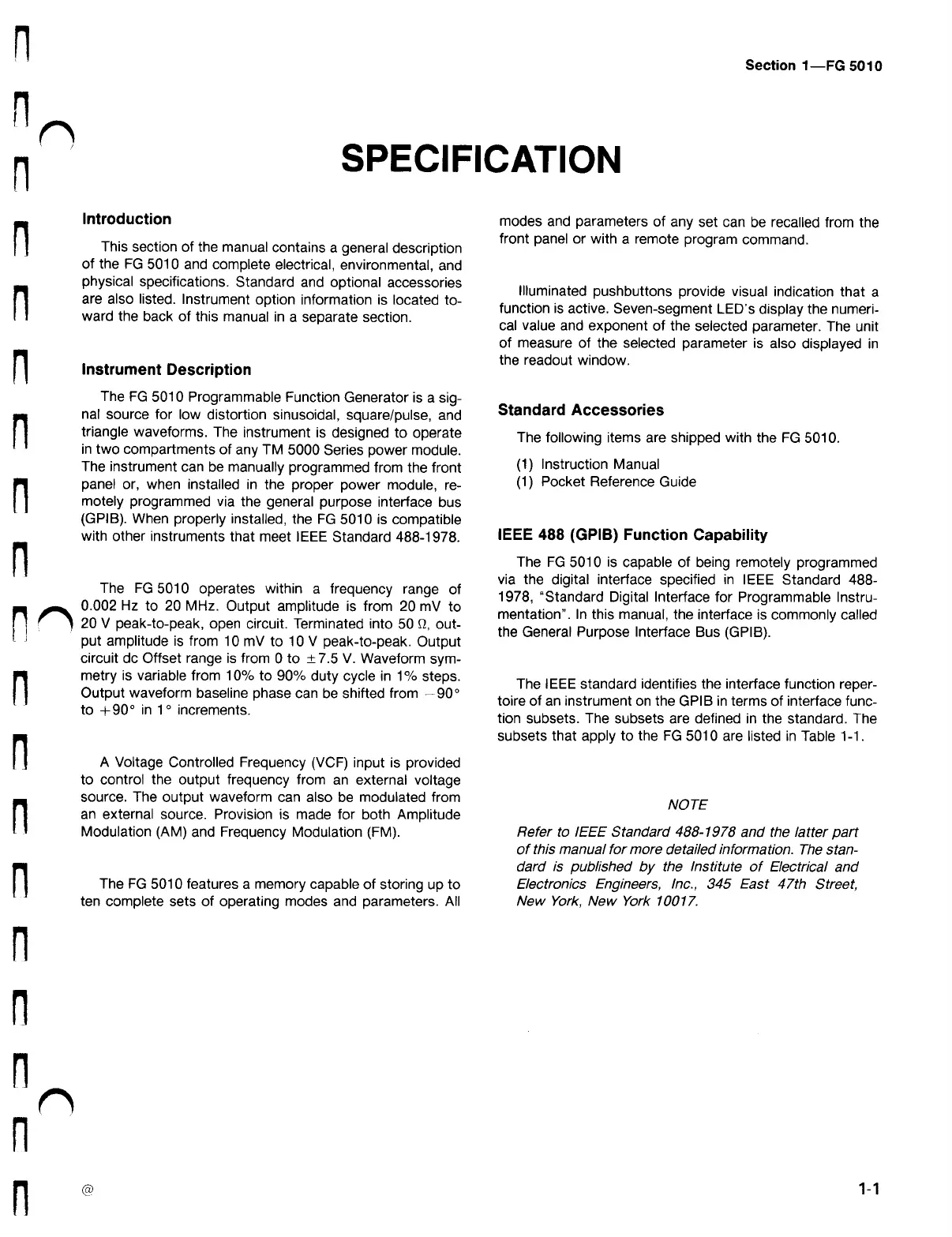

SPECIFICATION
Introduction
This
section of
the manual
contains a
general
description
of the FG
5010 and
complete electrical ,
environmental , and
physical specifications . Standard and optional accessories
are also listed . Instrument option information is located to
ward
the
back
of
this
manual in a
separate
section
.
Instrument
Description
The FG 5010
Programmable
Function
Generator
is a sig
nal
source for low
distortion
sinusoidal
,
square
/ pulse
, and
triangle
waveforms
.
The
instrument is
designed
to
operate
in two
compartments of any
TM 5000
Series power
module
.
The instrument can be manually programmed from the front
panel or , when installed in the proper power module , re
motely programmed via the general purpose interface bus
( GPIB ) . When properly installed , the FG 5010 is compatible
with other instruments that meet IEEE Standard 488-1978 .
The FG
5010
operates
within a
frequency
range
of
0.002 Hz to 20
MHz . Output
amplitude
is
from 20 mV to
20 V peak - to - peak , open circuit . Terminated into 50 9 , out
put
amplitude is from
10 mV to
10 V peak - to
- peak .
Output
circuit dc Offset range is from to ± 7.5 V. Waveform sym
metry is variable from 10 % to 90 % duty cycle in 1 % steps .
Output waveform baseline phase can be shifted from -90 °
to + 90 ° in 1 ° increments .
A Voltage
Controlled Frequency ( VCF ) input is
provided
to control the output frequency from an external voltage
source . The output waveform can also be modulated from
an external source . Provision is made for both Amplitude
Modulation ( AM ) and Frequency Modulation ( FM ) .
The FG
5010
features
a
memory
capable of
storing up to
ten complete sets of operating modes and parameters . All
(
8
)
Section 1 -
FG
5010
modes and parameters of any set can be recalled from the
front
panel
or
with
a
remote
program
command .
Illuminated pushbuttons provide visual indication that
function
is
active . Seven -
segment LED's
display
the
numeri
cal value and exponent of the selected parameter . The unit
of measure of the selected parameter is also displayed in
the readout window .
Standard Accessories
The following items are shipped with the FG 5010 .
( 1 ) Instruction Manual
( 1 ) Pocket Reference Guide
IEEE
488
(
GPIB
)
Function
Capability
The
FG
5010
is
capable of
being remotely
programmed
via the digital interface specified in IEEE Standard 488
1978 , " Standard Digital Interface for Programmable Instru
mentation " . In this manual , the interface is commonly called
the
General
Purpose Interface Bus ( GPIB ) .
The IEEE
standard
identifies
the
interface
function
reper
toire of an instrument on the GPIB in terms of interface func
tion subsets . The subsets are defined in the standard . The
subsets that apply to the FG 5010 are listed in Table 1-1 .
NOTE
Refer to IEEE Standard 488-1978 and the latter part
of this manual for more detailed information . The stan
dard is published by the Institute of Electrical and
Electronics Engineers , Inc. , 345 East 47th Street ,
New York , New York 10017 .
