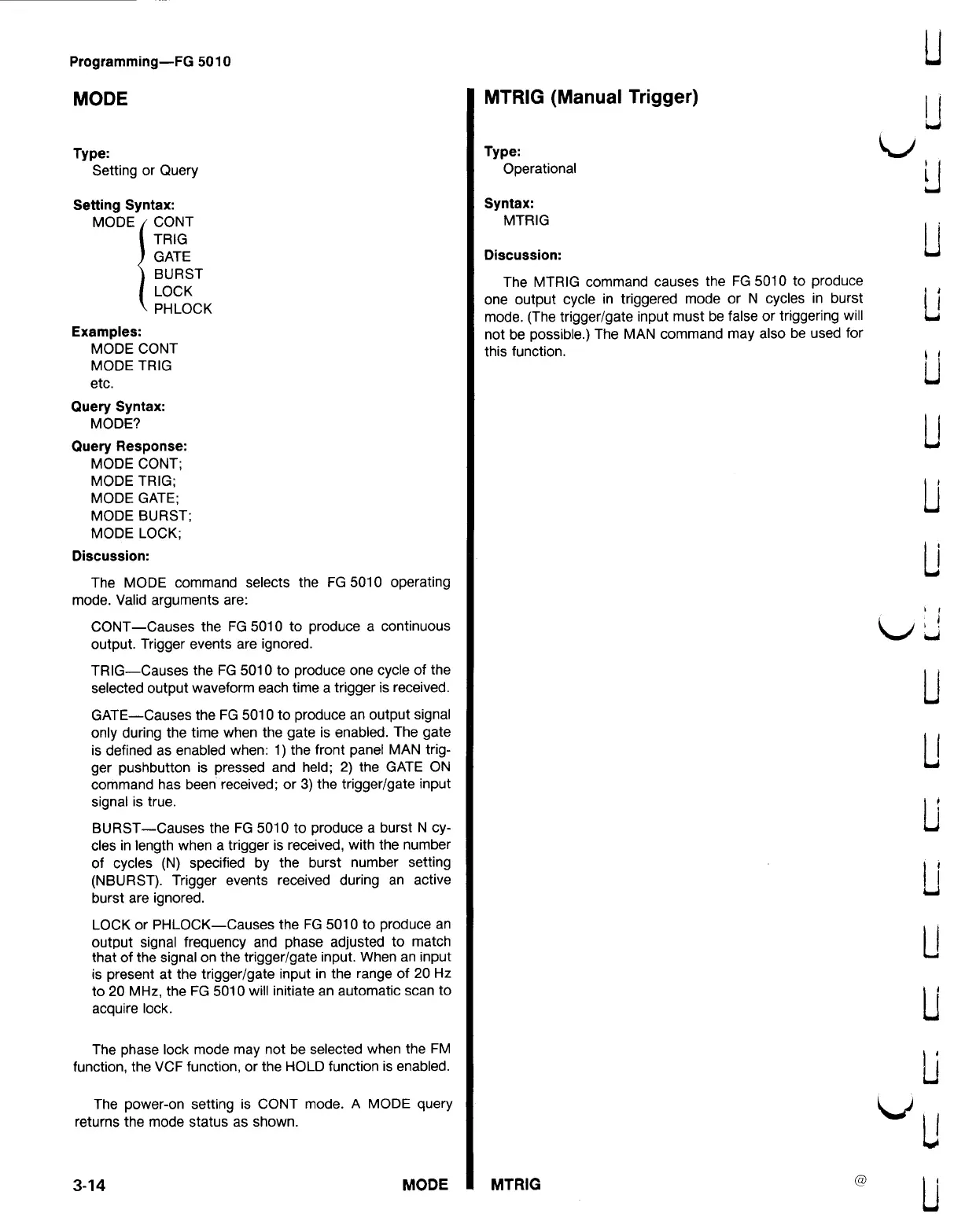

Programming
-
FG
5010
MODE
Type
:
Setting
or
Query
Setting
Syntax
:
MODE
CONT
TRIG
GATE
BURST
LOCK
PHLOCK
Examples
:
MODE
CONT
MODE
TRIG
etc.
Query
Syntax
:
MODE
?
Query
Response
:
MODE
CONT
;
MODE
TRIG
;
MODE
GATE
;
MODE
BURST
;
MODE
LOCK
;
Discussion
:
The
MODE
command
selects
the
FG
5010
operating
mode
.
Valid
arguments
are
:
CONT
-
Causes
the
FG
5010
to
produce
a
continuous
output
.
Trigger
events
are
ignored
.
TRIG
-
Causes
the
FG
5010
to
produce
one
cycle
of
the
selected
output
waveform
each
time
a
trigger
is
received
.
GATE
-
Causes
the
FG
5010
to
produce
an
output
signal
only
during
the
time
when
the
gate
is
enabled
.
The
gate
is
defined
as
enabled
when
:
1
)
the
front
panel
MAN
trig
ger
pushbutton
is
pressed
and
held
;
2
)
the
GATE
ON
command
has
been
received
;
or
3
)
the
trigger
/
gate
input
signal
is
true
.
BURST
-
Causes
the
FG
5010
to
produce
a
burst
N
cy
cles
in
length
when
a
trigger
is
received
,
with
the
number
of
cycles
(
N
)
specified
by
the
burst
number
setting
(
NBURST
)
.
Trigger
events
received
during
an
active
burst
are
ignored
.
LOCK
or
PHLOCK
-
Causes
the
FG
5010
to
produce
an
output
signal
frequency
and
phase
adjusted
to
match
that
of
the
signal
on
the
trigger
/
gate
input
.
When
an
input
is
present
at
the
trigger
/
gate
input
in
the
range
of
20
Hz
to
20
MHz
,
the
FG
5010
will
initiate
an
automatic
scan
to
acquire
lock
.
The
phase
lock
mode
may
not
be
selected
when
the
FM
function
,
the
VCF
function
,
or
the
HOLD
function
is
enabled
.
The
power
-
on
setting
is
CONT
mode
.
A
MODE
query
returns
the
mode
status
as
shown
.
3-14
MODE
MTRIG
(
Manual
Trigger
)
Type
:
Operational
Syntax
:
MTRIG
Discussion
:
The
MTRIG
command
causes
the
FG
5010
to
produce
one
output
cycle
in
triggered
mode
or
N
cycles
in
burst
mode
.
(
The
trigger
/
gate
input
must
be
false
or
triggering
will
not
be
possible
.
)
The
MAN
command
may
also
be
used
for
this
function
.
MTRIG
U
U
U
U
L
OU
C
U
L
U
U
U
C.
U
