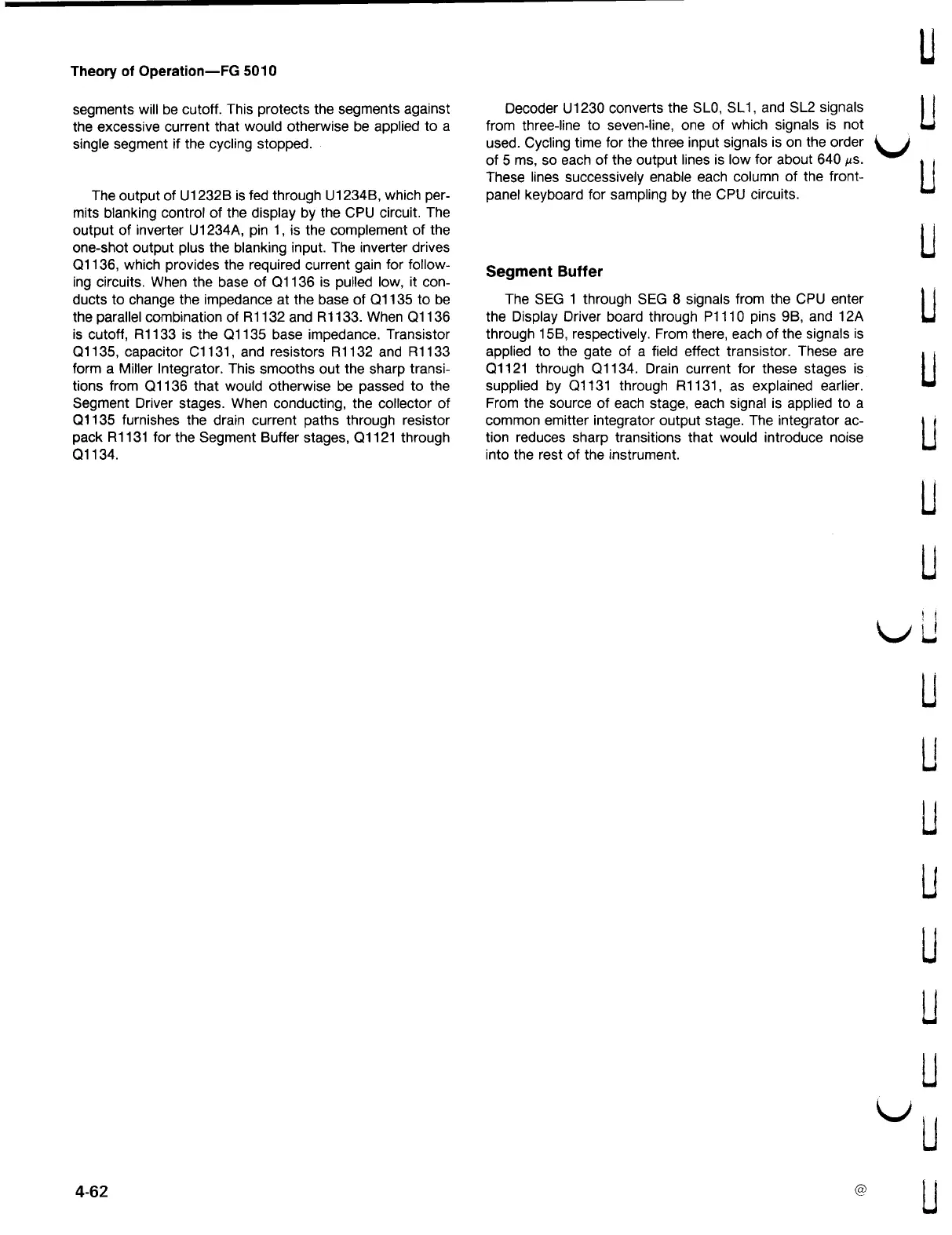

Theory
of
Operation
-
FG
5010
segments
will
be
cutoff
.
This
protects
the
segments
against
the
excessive
current
that
would
otherwise
be
applied
to
a
single
segment
if
the
cycling
stopped
.
The
output
of
U1232B
is
fed
through
U1234B
,
which
per
mits
blanking
control
of
the
display
by
the
CPU
circuit
.
The
output
of
inverter
U1234A
,
pin
1
,
is
the
complement
of
the
one
-
shot
output
plus
the
blanking
input
.
The
inverter
drives
Q1136
,
which
provides
the
required
current
gain
for
follow
ing
circuits
.
When
the
base
of
Q1136
is
pulled
low
,
it
con
ducts
to
change
the
impedance
at
the
base
of
Q1135
to
be
the
parallel
combination
of
R1132
and
R1133
.
When
Q1136
is
cutoff
,
R1133
is
the
Q1135
base
impedance
.
Transistor
Q1135
,
capacitor
C1131
,
and
resistors
R1132
and
R1133
form
a
Miller
Integrator
.
This
smooths
out
the
sharp
transi
tions
from
Q1136
that
would
otherwise
be
passed
to
the
Segment
Driver
stages
.
When
conducting
,
the
collector
of
Q1135
furnishes
the
drain
current
paths
through
resistor
pack
R1131
for
the
Segment
Buffer
stages
,
Q1121
through
Q1134
.
4-62
Decoder
U1230
converts
the
SLO
,
SL1
,
and
SL2
signals
from
three
-
line
to
seven
-
line
,
one
of
which
signals
is
not
used
.
Cycling
time
for
the
three
input
signals
is
on
the
order
of
5
ms
,
so
each
of
the
output
lines
is
low
for
about
640
µs
.
These
lines
successively
enable
each
column
of
the
front
panel
keyboard
for
sampling
by
the
CPU
circuits
.
Segment
Buffer
The
SEG
1
through
SEG
8
signals
from
the
CPU
enter
the
Display
Driver
board
through
P1110
pins
9B
,
and
12A
through
15B
,
respectively
.
From
there
,
each
of
the
signals
is
applied
to
the
gate
of
a
field
effect
transistor
.
These
are
Q1121
through
Q1134
.
Drain
current
for
these
stages
is
supplied
by
Q1131
through
R1131
,
as
explained
earlier
.
From
the
source
of
each
stage
,
each
signal
is
applied
to
a
common
emitter
integrator
output
stage
.
The
integrator
ac
tion
reduces
sharp
transitions
that
would
introduce
noise
into
the
rest
of
the
instrument
.
